H2089 Series
Manufacturer: Harwin Inc.
Beta
⌘K

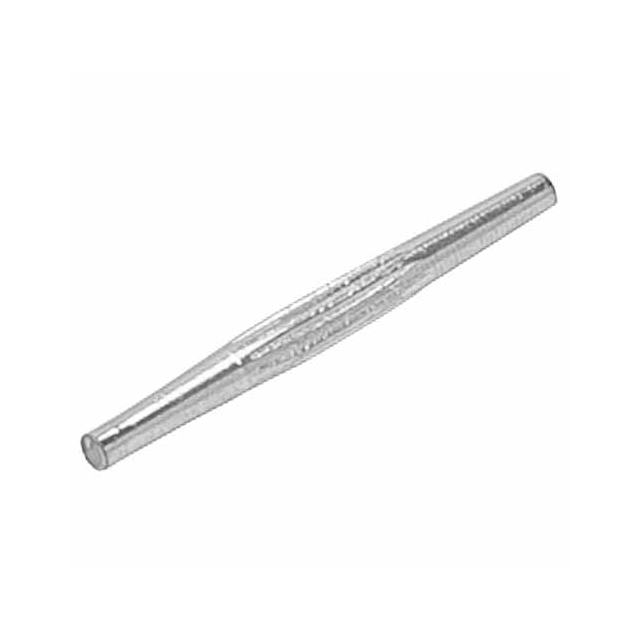

VERTICAL THROUGHBOARD TERMINAL PIN, SPLINE PIN ROHS COMPLIANT: YES
| Part | Contact Material | Length - Overall | Length - Overall | Board Thickness [custom] | Board Thickness [custom] | Terminal Type | Termination | Mounting Type | Terminal Style | Contact Finish | Insulation | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Brass | 11.9 mm | 0.469 " | 0.094 in | 2.39 mm | PC Pin | Staking Flare | Through Hole | Double End | Tin | Non-Insulated | 0.039 in 0.99 mm | 0.041 in 1.04 mm |
