M80-851 Series

Catalog

3+3 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Type	Mounting Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Termination	Contact Material	Contact Finish - Mating	Number of Positions Loaded	Contact Shape	Insulation Color	Features	Style	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Type	Number of Positions	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish - Post	Number of Positions [custom]
Harwin Inc. M80-8510645	Latch Lock	-55 C	125 °C	2.2 A	Header	Right Angle Through Hole	0.118 in	3 mm	UL94 V-0	Solder	Phosphor Bronze	Gold	All	Circular	Black	Strain Relief Clips	Board to Board Cable	2	0.235 in	5.97 mm	Shrouded - 4 Wall	2 mm	0.079 in	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	6
Harwin Inc. M80-8514442	Latch Lock	-55 C	125 °C	2.2 A	Header	Right Angle Through Hole	0.118 in	3 mm	UL94 V-0	Solder	Phosphor Bronze	Gold	All	Circular	Black	Strain Relief Clips	Board to Board Cable	2	0.235 in	5.97 mm	Shrouded - 4 Wall	2 mm	0.079 in	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	44	118.1 µin	3 µm	Tin
Harwin Inc. M80-8510642	Latch Lock	-55 C	125 °C	2.2 A	Header	Right Angle Through Hole	0.118 in	3 mm	UL94 V-0	Solder	Phosphor Bronze	Gold	All	Circular	Black	Strain Relief Clips	Board to Board Cable	2	0.235 in	5.97 mm	Shrouded - 4 Wall	2 mm	0.079 in	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	6	118.1 µin	3 µm	Tin
Harwin Inc. M80-8510845	Latch Lock	-55 C	125 °C	2.2 A	Header	Right Angle Through Hole	0.118 in	3 mm	UL94 V-0	Solder	Phosphor Bronze	Gold	All	Circular	Black	Strain Relief Clips	Board to Board Cable	2	0.235 in	5.97 mm	Shrouded - 4 Wall	2 mm	0.079 in	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	8

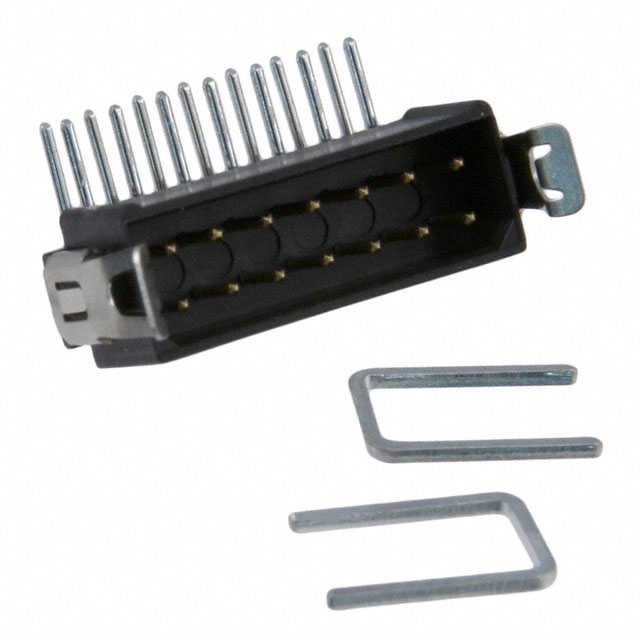

Harwin Inc. M80-8511442	Latch Lock	-55 C	125 °C	2.2 A	Header	Right Angle Through Hole	0.118 in	3 mm	UL94 V-0	Solder	Phosphor Bronze	Gold	All	Circular	Black	Strain Relief Clips	Board to Board Cable	2	0.235 in	5.97 mm	Shrouded - 4 Wall	2 mm	0.079 in	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	14	118.1 µin	3 µm	Tin

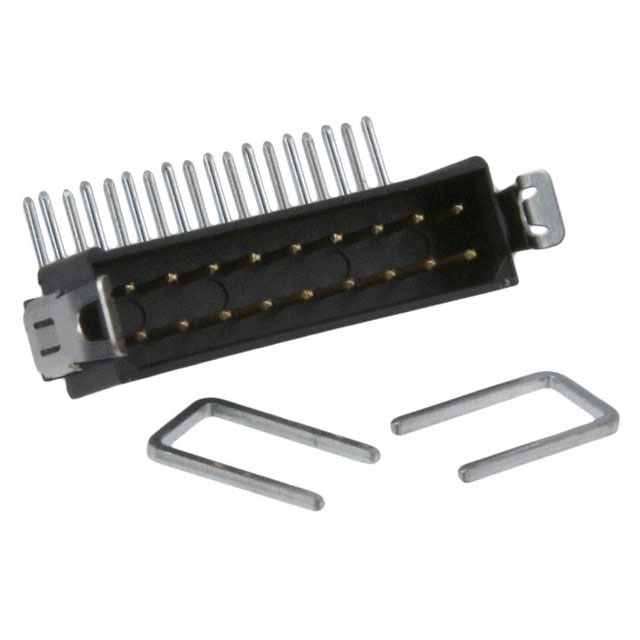

Harwin Inc. M80-8511842	Latch Lock	-55 C	125 °C	2.2 A	Header	Right Angle Through Hole	0.118 in	3 mm	UL94 V-0	Solder	Phosphor Bronze	Gold	All	Circular	Black	Strain Relief Clips	Board to Board Cable	2	0.235 in	5.97 mm	Shrouded - 4 Wall	2 mm	0.079 in	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	18	118.1 µin	3 µm	Tin
Harwin Inc. M80-8511642	Latch Lock	-55 C	125 °C	2.2 A	Header	Right Angle Through Hole	0.118 in	3 mm	UL94 V-0	Solder	Phosphor Bronze	Gold	All	Circular	Black	Strain Relief Clips	Board to Board Cable	2	0.235 in	5.97 mm	Shrouded - 4 Wall	2 mm	0.079 in	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	16	118.1 µin	3 µm	Tin

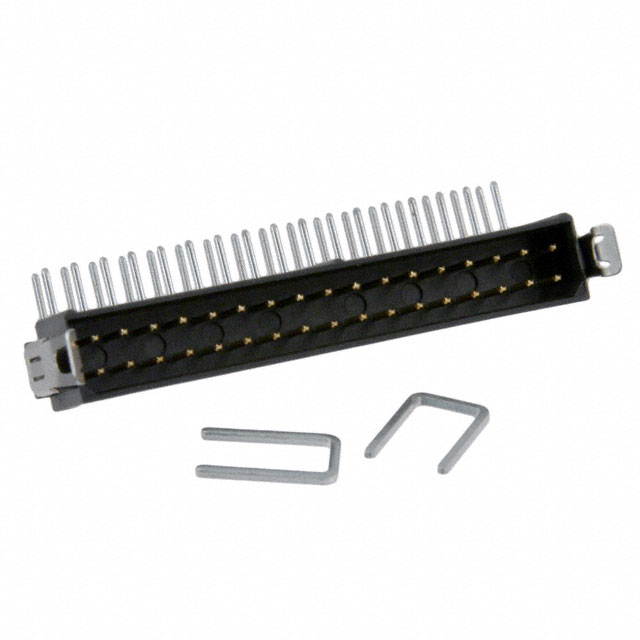

Harwin Inc. M80-8513442	Latch Lock	-55 C	125 °C	2.2 A	Header	Right Angle Through Hole	0.118 in	3 mm	UL94 V-0	Solder	Phosphor Bronze	Gold	All	Circular	Black	Strain Relief Clips	Board to Board Cable	2	0.235 in	5.97 mm	Shrouded - 4 Wall	2 mm	0.079 in	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin		118.1 µin	3 µm	Tin	34
Harwin Inc. M80-8511245	Latch Lock	-55 C	125 °C	2.2 A	Header	Right Angle Through Hole	0.118 in	3 mm	UL94 V-0	Solder	Phosphor Bronze	Gold	All	Circular	Black	Strain Relief Clips	Board to Board Cable	2	0.235 in	5.97 mm	Shrouded - 4 Wall	2 mm	0.079 in	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	12

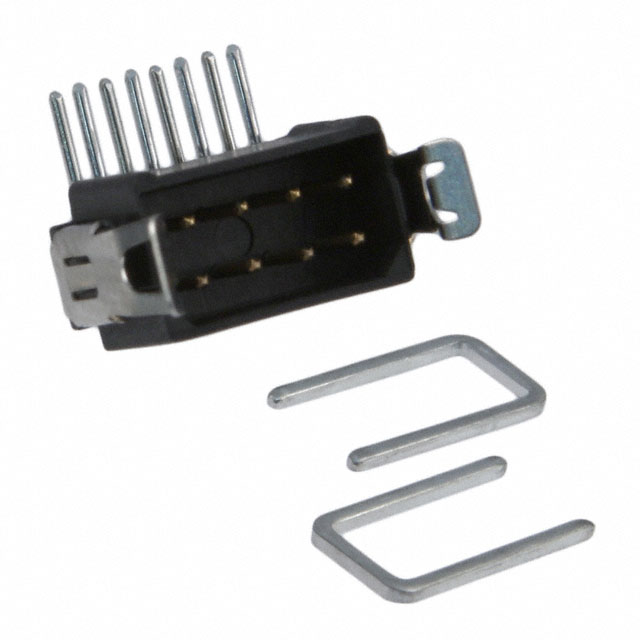

Harwin Inc. M80-8510842	Latch Lock	-55 C	125 °C	2.2 A	Header	Right Angle Through Hole	0.118 in	3 mm	UL94 V-0	Solder	Phosphor Bronze	Gold	All	Circular	Black	Strain Relief Clips	Board to Board Cable	2	0.235 in	5.97 mm	Shrouded - 4 Wall	2 mm	0.079 in	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	8	118.1 µin	3 µm	Tin
