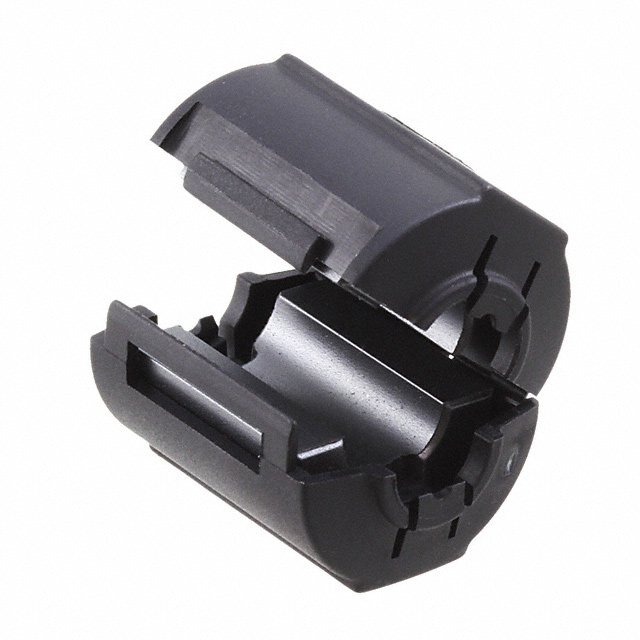

ESD-SR Series

Manufacturer: KEMET

Catalog

MN-ZN FERRITE SNAP ON 35MM UL94

Part	Mounting Type	Material	Type	Design	Outer Dimension [y]	Outer Dimension [x]	Outer Dimension [y]	Outer Dimension [x]	Inner Dimension [diameter]	Inner Dimension [diameter]	Length [x]	Length [x]	Outer Dimension [z]	Outer Dimension [z]	Inner Dimension	Length	Length
KEMET ESD-SR-S57M	Free Hanging	MnZn	Round	Hinged (Snap On)
KEMET ESD-SR-250G	Free Hanging	NIZn	Round	Hinged (Snap On)	1.244 "	1.24 in	31.6 mm	31.5 mm	0.512 in	13 mm	38 mm	1.496 in
KEMET ESD-SR-100	Free Hanging		Round	Hinged (Snap On)	0.65 in	0.65 in	16.5 mm	16.5 mm	0.236 in	6 mm	21 mm	0.827 in
KEMET ESD-SR-150G	Free Hanging	NIZn	Round	Hinged (Snap On)	0.772 in		19.6 mm		0.276 in	7 mm	37.4 mm	1.472 in	20.3 mm	0.799 in
KEMET ESD-SR-S47M	Free Hanging	MnZn	Round	Hinged (Snap On)					1.024 in						26 mm
KEMET ESD-SR-120G	Free Hanging	NIZn	Round	Hinged (Snap On)			0.646 " 16.4 mm	0.63 " 16 mm	0.236 in	6 mm						33 mm	1.299 in
KEMET ESD-SR-S10	Free Hanging		Round	Hinged (Snap On)	0.551 in	0.61 in	14 mm	15.5 mm	0.236 in	6 mm						18.5 mm	0.728 in

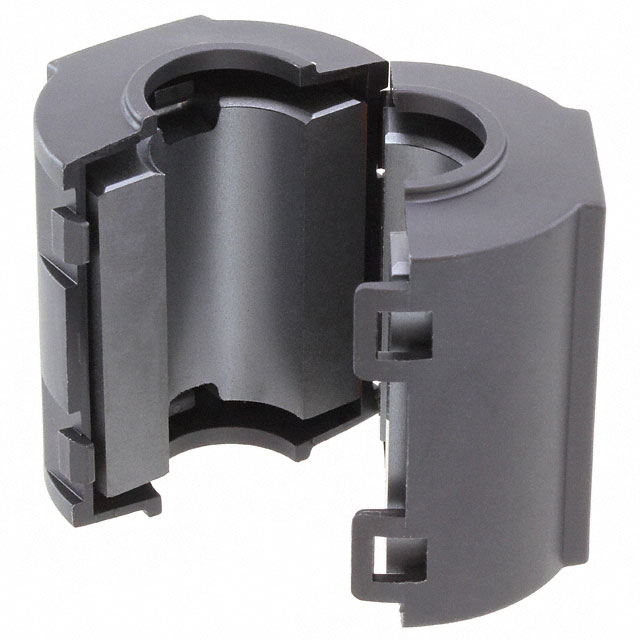

KEMET ESD-SR-250	Free Hanging	NIZn	Round	Hinged (Snap On)	1.244 "	1.24 in	31.6 mm	31.5 mm	0.512 in	13 mm	38 mm	1.496 in

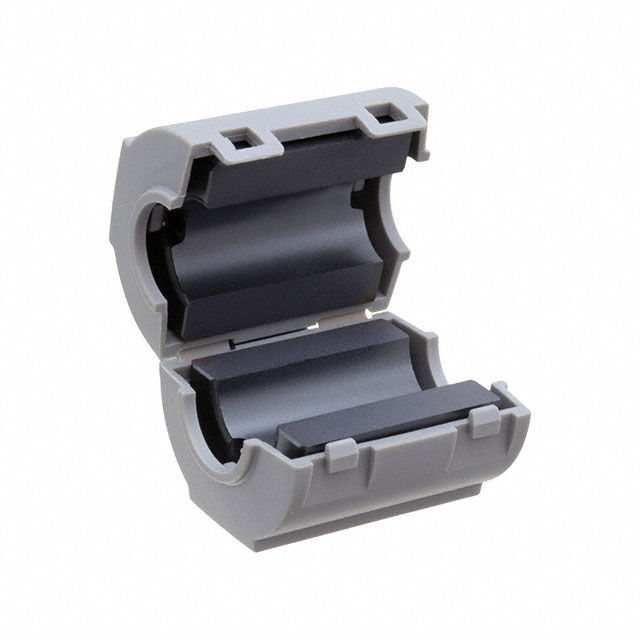

KEMET ESD-SR-160G	Free Hanging	NIZn	Round	Hinged (Snap On)	0.787 in	0.795 in	20 mm	20.2 mm	0.354 in	9 mm						39 mm	1.535 in
KEMET ESD-SR-120	Free Hanging	NIZn	Round	Hinged (Snap On)			0.646 " 16.4 mm	0.63 " 16 mm	0.236 in	6 mm	33 mm	1.3 in
