OSTTH06 Series

Catalog

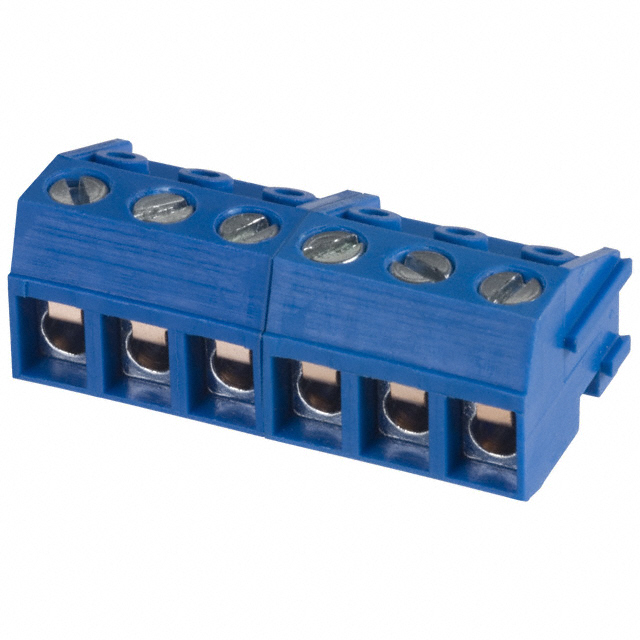

TERM BLOCK PLUG 6POS 90DEG 5MM

Part	Wire Strip Length [Min]	Wire Strip Length [Max]	Housing Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Contact Material	Torque - Screw	Torque - Screw	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Positions Per Level	Number of Levels	Contact Mating Finish	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Pitch	Pitch	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Color	Features
On Shore Technology Inc. OSTTH060160	5 mm	6 mm	Brass	1.5 mm˛	0.34 mm˛	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	115 °C	-40 C	Plug for Unshrouded Header	Free Hanging (In-Line)	6	1	Nickel	6	0.34 mm²	1.5 mm²	Screw	0.197 in	5 mm	14 AWG	22 AWG	300 V	Blue	Interlocking (Side)
