043645 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 3POS 3.00MM

Part	Contact Type	Fastening Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Insulation Material	Note	Contact Termination	Number of Rows	Features	Connector Type	Mounting Type	Number of Positions

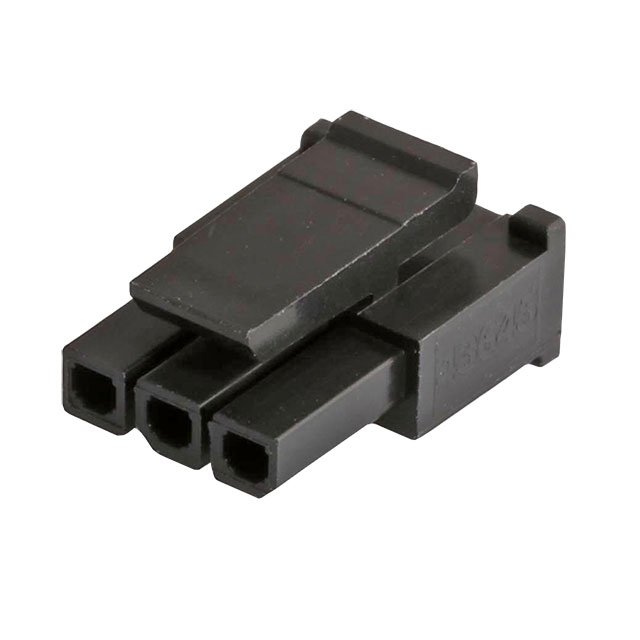

Molex 0436450310	Female Socket	Latch Lock	Black	-40 °C	105 ░C	3 mm	0.118 in	Nylon Polyamide (PA)	Contacts Not Included	Crimp	1	Glow Wire Compliant	Receptacle	Free Hanging (In-Line)

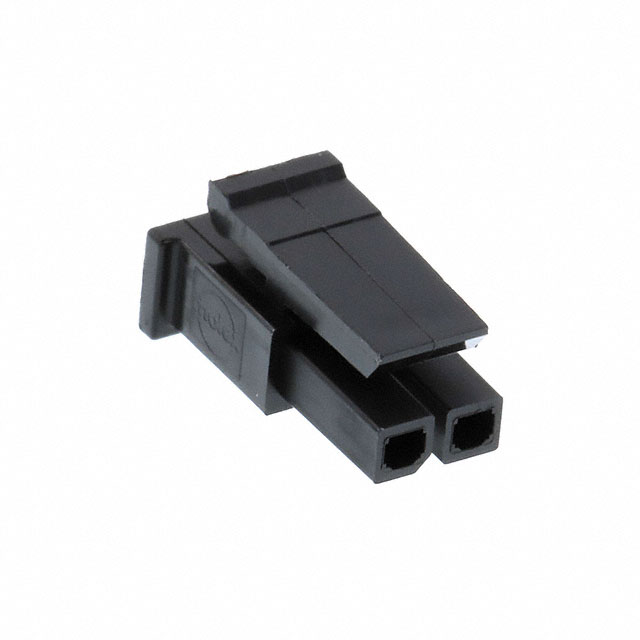

Molex 0436450200	Female Socket	Latch Lock	Black	-40 °C	105 ░C	3 mm	0.118 in	Nylon Polyamide (PA)	Contacts Not Included	Crimp	1		Receptacle	Free Hanging (In-Line)	2

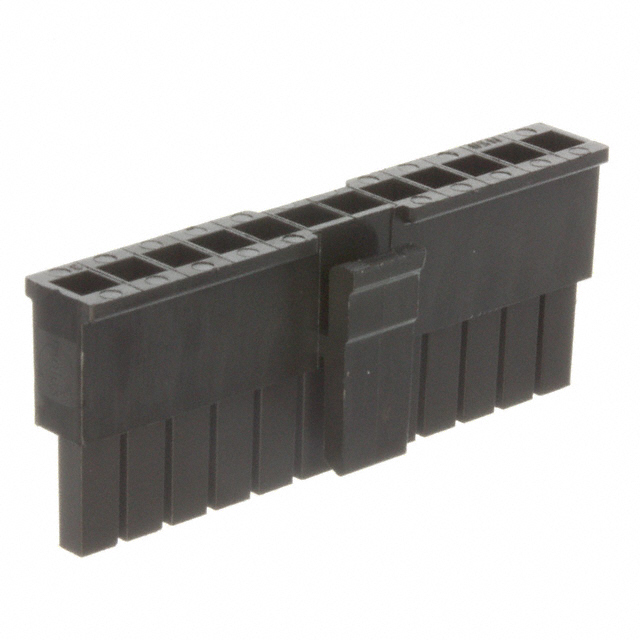

Molex 0436451200	Female Socket	Latch Lock	Black	-40 °C	105 ░C	3 mm	0.118 in	Polyester	Contacts Not Included	Crimp	1		Receptacle	Free Hanging (In-Line)	12

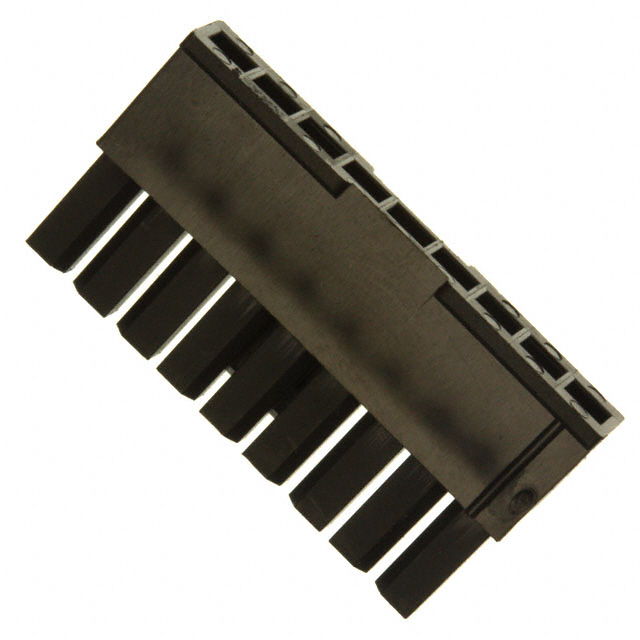

Molex 0436450900	Female Socket	Latch Lock	Black	-40 °C	105 ░C	3 mm	0.118 in	Polyester	Contacts Not Included	Crimp	1		Receptacle	Free Hanging (In-Line)	9
Molex 0436450410	Female Socket	Latch Lock	Black	-40 °C	105 ░C	3 mm	0.118 in	Nylon Polyamide (PA)	Contacts Not Included	Crimp	1	Glow Wire Compliant	Receptacle	Free Hanging (In-Line)	4
Molex 0436450210	Female Socket	Latch Lock	Black	-40 °C	105 ░C	3 mm	0.118 in	Nylon Polyamide (PA)	Contacts Not Included	Crimp	1	Glow Wire Compliant	Receptacle	Free Hanging (In-Line)	2

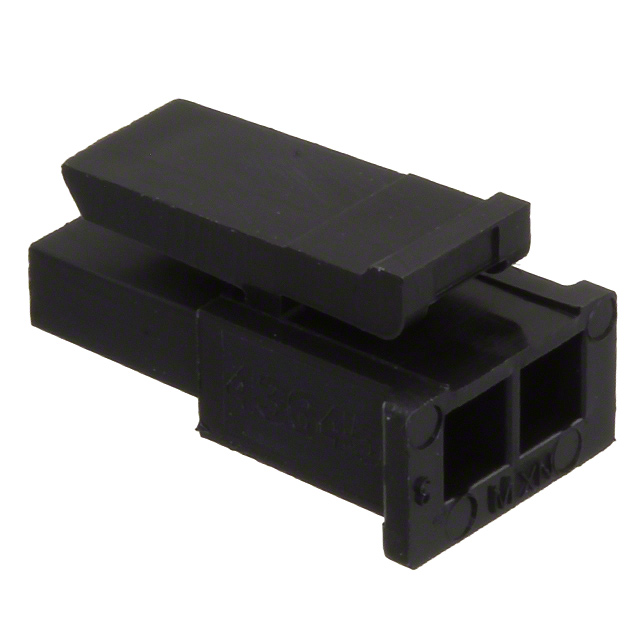

Molex 0436450208	Female Socket	Latch Lock	Black	-40 °C	105 ░C	3 mm	0.118 in	Nylon Polyamide (PA)	Contacts Not Included	Crimp	1		Receptacle	Free Hanging (In-Line)	2
Molex 0436451100	Female Socket	Latch Lock	Black	-40 °C	105 ░C	3 mm	0.118 in	Polyester	Contacts Not Included	Crimp	1		Receptacle	Free Hanging (In-Line)	11
Molex 0436450408	Female Socket	Latch Lock	Black	-40 °C	105 ░C	3 mm	0.118 in	Nylon Polyamide (PA)	Contacts Not Included	Crimp	1		Receptacle	Free Hanging (In-Line)	4

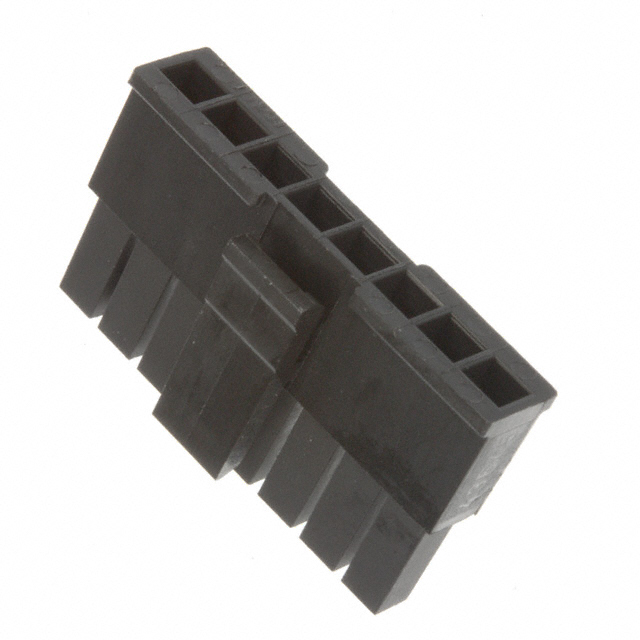

Molex 0436450800	Female Socket	Latch Lock	Black	-40 °C	105 ░C	3 mm	0.118 in	Polyester	Contacts Not Included	Crimp	1		Receptacle	Free Hanging (In-Line)	8
