R16171 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

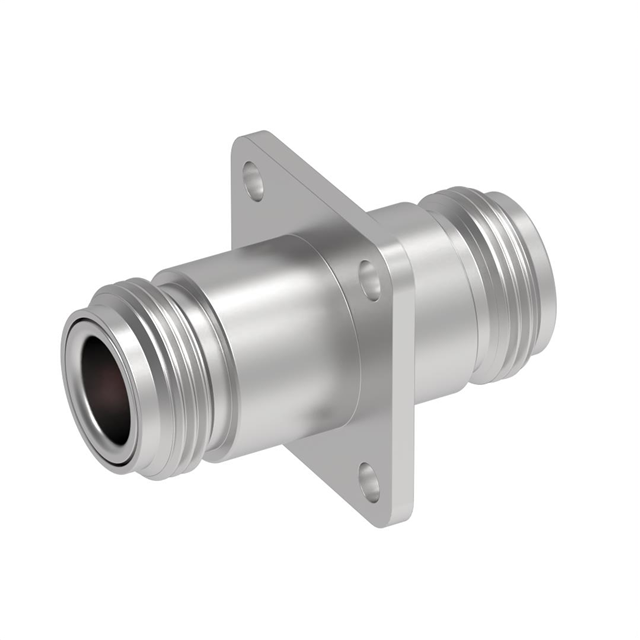

N / SQUARE FLANGE FEMALE-FEMALE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Mating Cycles | Insertion Loss | Dielectric Material | Body Material | Body Finish | Convert From (Adapter End) | Mounting Type | Convert To (Adapter End) | Conversion Type | Frequency - Max [Max] | Style | Center Gender | Adapter Series | Adapter Type | Impedance | Mounting Feature | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 155 C | -55 C | Beryllium Copper | 500 | 0.15 dB | Polytetrafluoroethylene (PTFE) | Brass | White Bronze | Female Socket N Jack | Panel Mount | N Jack Female Socket | Same Series | 11 GHz | Straight | Female to Female | N to N | Jack to Jack | 50 Ohms | Flange | Gold |
 Radiall USA, Inc. | 155 C | -55 C | Beryllium Copper | 500 | Polytetrafluoroethylene (PTFE) | Brass | White Bronze | Female Socket N Jack | Panel Mount | N Jack Female Socket | Same Series | 11 GHz | Straight | Female to Female | N to N | Jack to Jack | 50 Ohms | Flange | Gold |
