BZD17 Series

Manufacturer: Taiwan Semiconductor Corporation

Catalog

DIODE ZENER 43V 800MW SUB SMA

Part	Package / Case	Voltage - Zener (Nom) (Vz)	Current - Reverse Leakage @ Vr	Tolerance	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Power - Max [Max]	Impedance (Max) (Zzt)	Impedance (Max) (Zzt) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Qualification	Grade

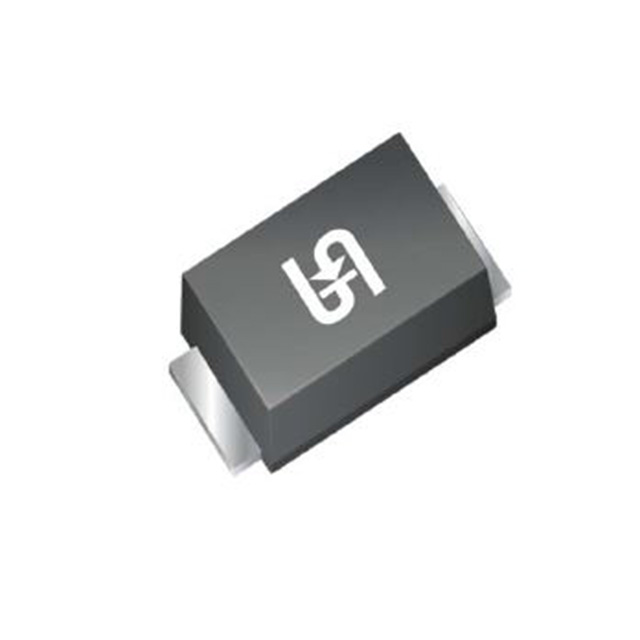

Taiwan Semiconductor Corporation BZD17C43P RQG	DO-219AB	43 V	1 µA	6.97 %	Sub SMA	175 °C	-55 °C	Surface Mount	1.2 V	800 mW
Taiwan Semiconductor Corporation BZD17C16P RHG	DO-219AB	16 V	1 µA	5.625 %	Sub SMA	175 °C	-55 °C	Surface Mount	1.2 V	800 mW	15 Ohms
Taiwan Semiconductor Corporation BZD17C11P R3G	DO-219AB	11 V	4 µA	5.45 %	Sub SMA	175 °C	-55 °C	Surface Mount	1.2 V	800 mW		7 Ohms

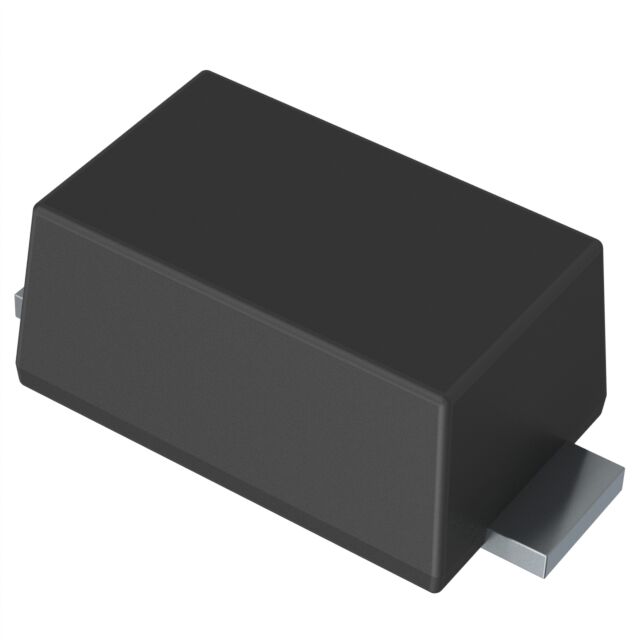

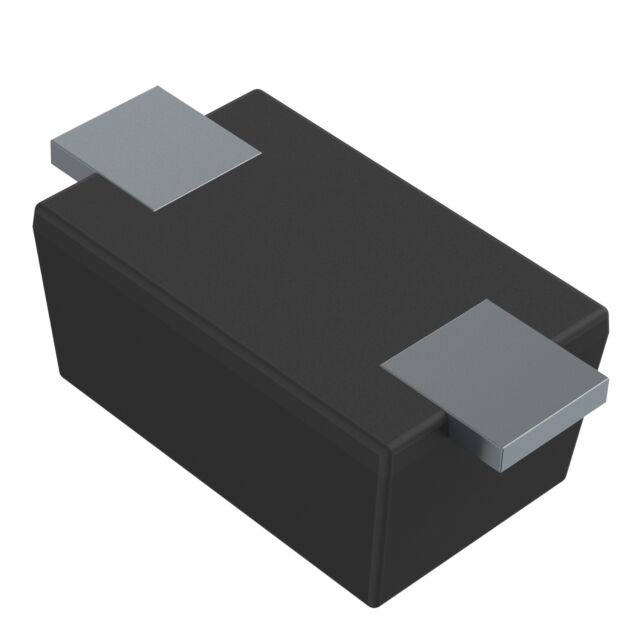

Taiwan Semiconductor Corporation BZD17C47PH	SOD-123	47 V	1 µA	5 %	Sub SMA	175 °C	-55 °C	Surface Mount		1 W			1 V	AEC-Q101	Automotive
Taiwan Semiconductor Corporation BZD17C47P	SOD-123	47 V	1 µA	6.38 %	Sub SMA	175 °C	-55 °C	Surface Mount	1.2 V	800 mW
Taiwan Semiconductor Corporation BZD17C180P R3G	DO-219AB	180 V	1 µA	6.38 %	Sub SMA	175 °C	-55 °C	Surface Mount	1.2 V	800 mW		450 Ohms
Taiwan Semiconductor Corporation BZD17C100P RVG	DO-219AB	100 V	1 µA	6 %	Sub SMA	175 °C	-55 °C	Surface Mount	1.2 V	800 mW		200 Ohms
Taiwan Semiconductor Corporation BZD17C15P R3G	DO-219AB	15 V	1 µA	5 %	Sub SMA	175 °C	-55 °C	Surface Mount	1.2 V	800 mW		10 Ohms
Taiwan Semiconductor Corporation BZD17C39P RVG	DO-219AB	39 V	1 µA	5.12 %	Sub SMA	175 °C	-55 °C	Surface Mount	1.2 V	800 mW		40 Ohms
Taiwan Semiconductor Corporation BZD17C16P R3G	DO-219AB	16 V	1 µA	5.625 %	Sub SMA	175 °C	-55 °C	Surface Mount	1.2 V	800 mW	15 Ohms
