053258 Series
Manufacturer: Molex
Beta
⌘K

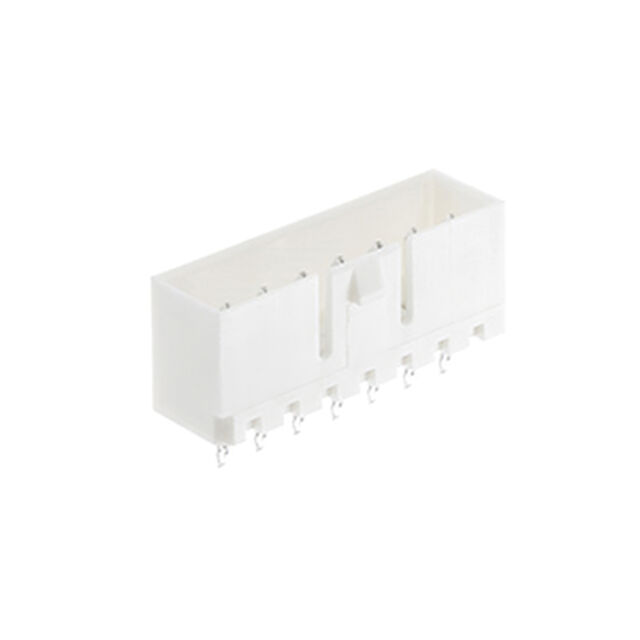

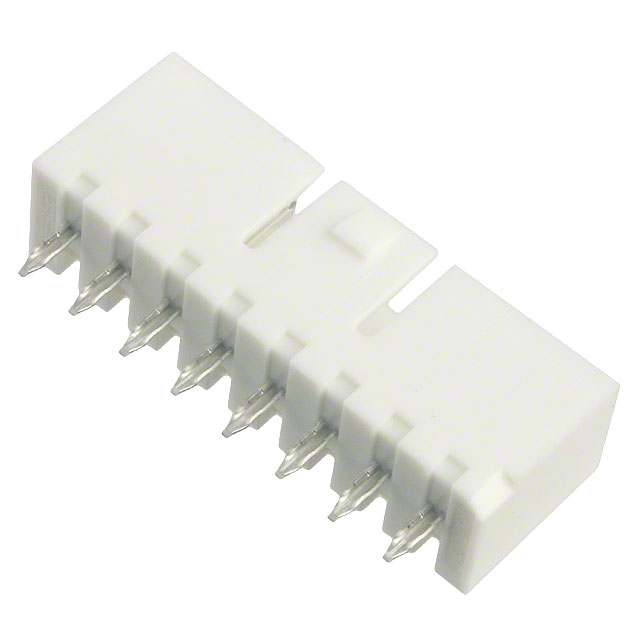

CONN HEADER VERT 8POS 3.5MM
| Part | Insulation Material | Shrouding | Connector Type | Contact Material | Pitch - Mating | Pitch - Mating | Number of Rows | Contact Type | Fastening Type | Mounting Type | Contact Finish - Post | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Material Flammability Rating | Number of Positions | Insulation Height [z] | Insulation Height [z] | Style | Contact Shape | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Polybutylene Terephthalate (PBTP) | Shrouded - 4 Wall | Header | Brass | 0.138 in | 3.5 mm | 1 | Male Pin | Locking Ramp | Through Hole | Tin | Natural | 1 µm | 39.4 µin | 3.5 mm | 0.138 in | All | UL94 V-0 | 8 | 10.49 mm | 0.413 in | Board to Cable/Wire | Square | Press-Fit Solder |
 Molex | Polybutylene Terephthalate (PBTP) | Shrouded - 4 Wall | Header | Brass | 0.138 in | 3.5 mm | 1 | Male Pin | Locking Ramp | Through Hole | Tin | Natural | 1 µm | 39.4 µin | 3.5 mm | 0.138 in | All | UL94 V-0 | 15 | 10.49 mm | 0.413 in | Board to Cable/Wire | Square | Press-Fit Solder |
 Molex | Polybutylene Terephthalate (PBTP) | Shrouded - 4 Wall | Header | Brass | 0.138 in | 3.5 mm | 1 | Male Pin | Locking Ramp | Through Hole | Tin | Natural | 1 µm | 39.4 µin | 3.5 mm | 0.138 in | All | UL94 V-0 | 11 | 10.49 mm | 0.413 in | Board to Cable/Wire | Square | Press-Fit Solder |
 Molex | Polybutylene Terephthalate (PBTP) | Shrouded - 4 Wall | Header | Phosphor Bronze | 0.138 in | 3.5 mm | 1 | Male Pin | Locking Ramp | Through Hole | Tin | Natural | 1 µm | 39.4 µin | 3.5 mm | 0.138 in | All | UL94 V-0 | 4 | 10.49 mm | 0.413 in | Board to Cable/Wire | Square | Press-Fit Solder |
 Molex | Polybutylene Terephthalate (PBTP) | Shrouded - 4 Wall | Header | Brass | 0.138 in | 3.5 mm | 1 | Male Pin | Locking Ramp | Through Hole | Tin | Natural | 1 µm | 39.4 µin | 3.5 mm | 0.138 in | All | UL94 V-0 | 12 | 10.49 mm | 0.413 in | Board to Cable/Wire | Square | Press-Fit Solder |
Molex | Polybutylene Terephthalate (PBTP) | Shrouded - 4 Wall | Header | Phosphor Bronze | 0.138 in | 3.5 mm | 1 | Male Pin | Locking Ramp | Through Hole | Tin | Natural | 1 µm | 39.4 µin | 3.5 mm | 0.138 in | All | UL94 V-0 | 11 | 10.49 mm | 0.413 in | Board to Cable/Wire | Square | Press-Fit Solder |
 Molex | Polybutylene Terephthalate (PBTP) | Shrouded - 4 Wall | Header | Phosphor Bronze | 0.138 in | 3.5 mm | 1 | Male Pin | Locking Ramp | Through Hole | Tin | Natural | 1 µm | 39.4 µin | 3.5 mm | 0.138 in | All | UL94 V-0 | 10.49 mm | 0.413 in | Board to Cable/Wire | Square | Press-Fit Solder |
