A 08-LC Series

Catalog

CONN IC DIP SOCKET 8POS TIN

Part	Current Rating (Amps)	Contact Resistance	Termination Post Length	Termination Post Length	Material Flammability Rating	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Pitch - Post	Pitch - Post	Housing Material	Features	Termination	Contact Finish - Post	Contact Material - Post	Type	Type	Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Pitch - Mating	Pitch - Mating

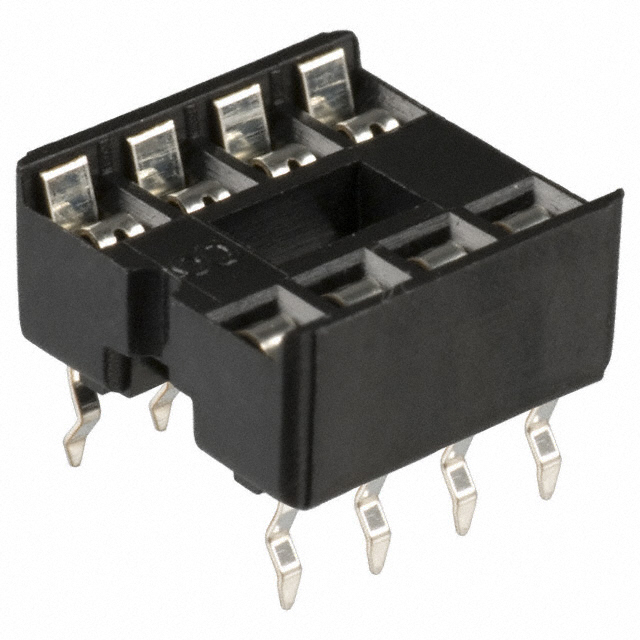

Assmann WSW Components A 08-LC-TR	1 A	30 mOhm	3.15 mm	0.124 in	UL94 V-0	8	2	4	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	Open Frame	Solder	Tin	Phosphor Bronze	7.62 mm	0.3 in	DIP	Through Hole	-55 C	85 °C	Phosphor Bronze	0.1 "	2.54 mm

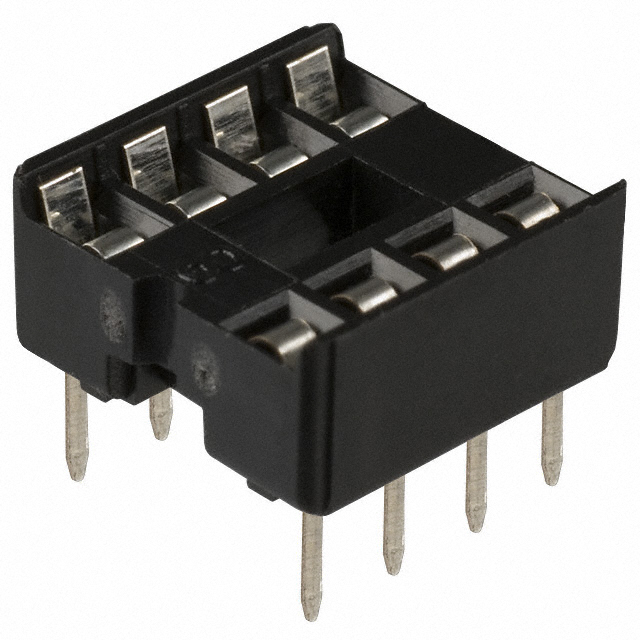

Assmann WSW Components A 08-LC-TT	1 A	30 mOhm	3.15 mm	0.124 in	UL94 V-0	8	2	4	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	Open Frame	Solder	Tin	Phosphor Bronze	7.62 mm	0.3 in	DIP	Through Hole	-55 C	85 °C	Phosphor Bronze	0.1 "	2.54 mm
