K8DT-AS Series

Catalog

CURNTTRANSNPN 0.1- 5A PSH IN

Part	Mounting Type	Voltage - Supply	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Circuit	Delay Time [Max]	Delay Time [Min]	Contact Rating @ Voltage	Trip Range [Min]	Trip Range [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]

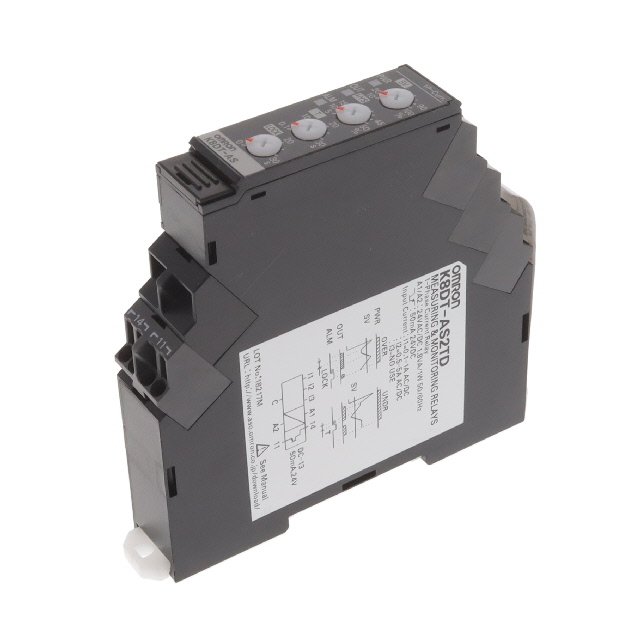

Omron Electronics Inc-EMC Div K8DT-AS2TD	DIN Rail	24 VAC	Solid State	-20 C	60 °C	Current Sensing AC/DC	NPN	30 Sec	0.1 Sec

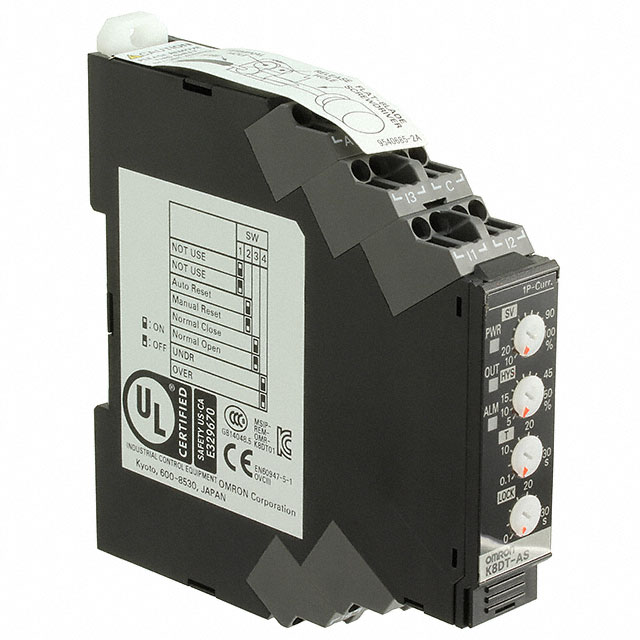

Omron Electronics Inc-EMC Div K8DT-AS2CD	DIN Rail	24 VAC		-20 C	60 °C	Current Sensing AC/DC		30 Sec	0.1 Sec	5 A 250 VAC
Omron Electronics Inc-EMC Div K8DT-AS1CD	DIN Rail	24 VAC		-20 C	60 °C	Current Sensing AC/DC		30 Sec	0.1 Sec	5 A 250 VAC	2 mA	500 mA

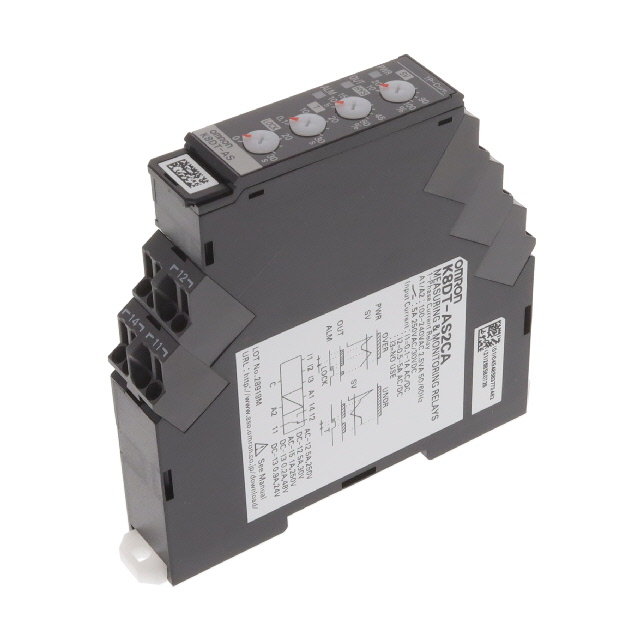

Omron Electronics Inc-EMC Div K8DT-AS2CA	DIN Rail			-20 C	60 °C	Current Sensing AC/DC		30 Sec	0.1 Sec	5 A 250 VAC			100 VAC	240 VAC
Omron Electronics Inc-EMC Div K8DT-AS1CA	DIN Rail			-20 C	60 °C	Current Sensing AC/DC		30 Sec	0.1 Sec	5 A 250 VAC	2 mA	500 mA	100 VAC	240 VAC
Omron Electronics Inc-EMC Div K8DT-AS1TD	DIN Rail	24 VAC	Solid State	-20 C	60 °C	Current Sensing AC/DC	NPN	30 Sec	0.1 Sec		2 mA	500 mA

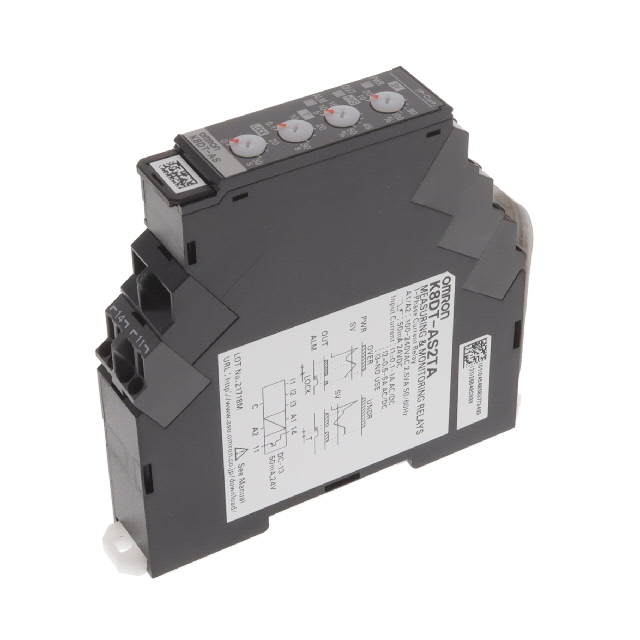

Omron Electronics Inc-EMC Div K8DT-AS2TA	DIN Rail		Solid State	-20 C	60 °C	Current Sensing AC/DC	NPN	30 Sec	0.1 Sec				100 VAC	240 VAC
Omron Electronics Inc-EMC Div K8DT-AS3CD	DIN Rail	24 VAC		-20 C	60 °C	Current Sensing AC/DC		30 Sec	0.1 Sec	5 A 250 VAC	10 A	200 A
