TSC2301 Series

Catalog

IC SCREEN CNTRL 12BIT 120BGA

Part	Resolution (Bits)	Voltage Reference	Mounting Type	Interface	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Touchscreen	Utilized IC / Part	Supplied Contents	Type	Function
Texas Instruments TSC2301IGQZ	12 b	External Internal	Surface Mount	SPI	120-BGA Microstar Junior (6x6)	2.7 V	3.6 V	120-VFBGA	85 °C	-40 °C	4 Wire Resistive

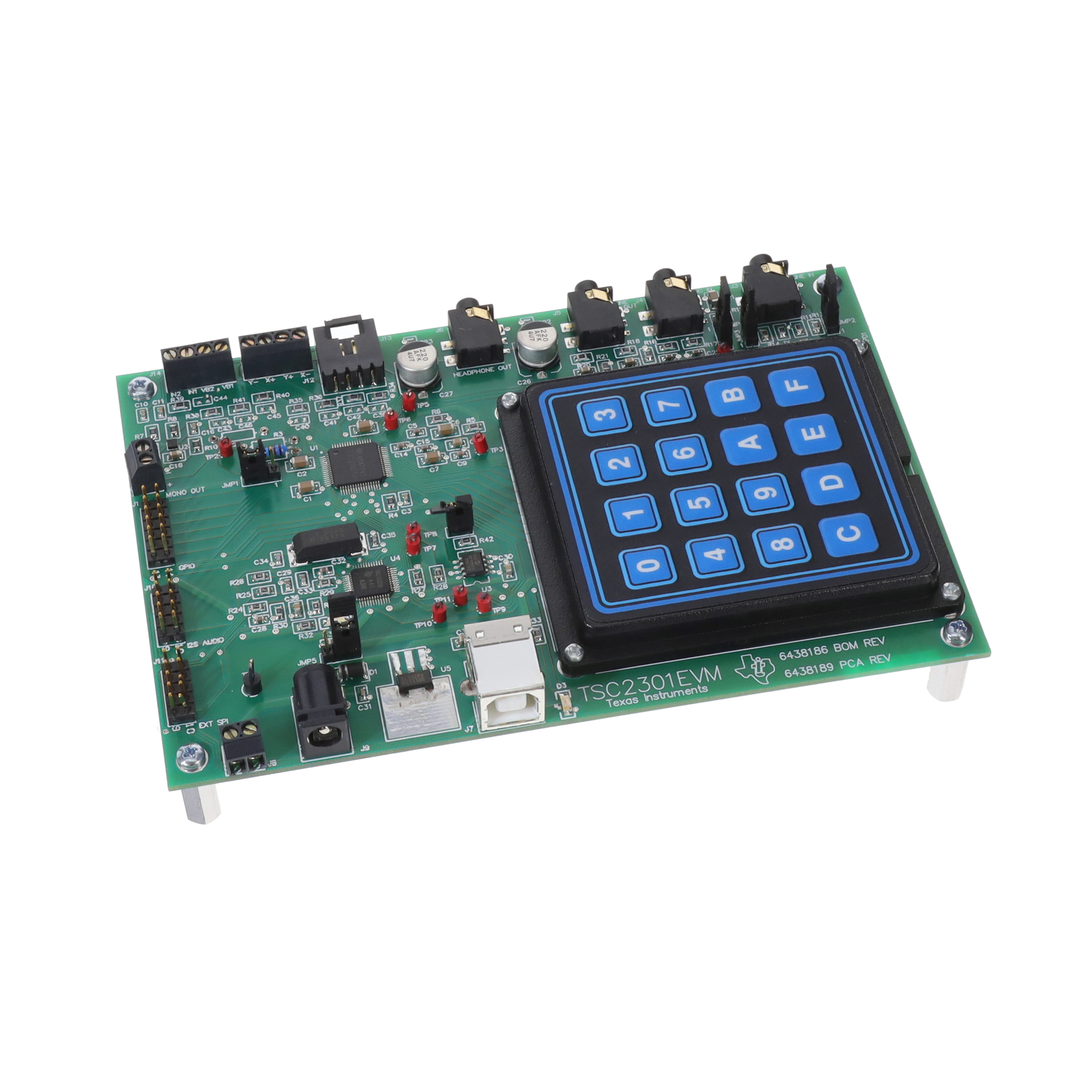

Texas Instruments TSC2301EVM												TSC2301	Board(s)	Interface	Touch Screen Controller
Texas Instruments TSC2301IPAGR	12 b	External Internal	Surface Mount	SPI	64-TQFP (10x10)	2.7 V	3.6 V	64-TQFP	85 °C	-40 °C	4 Wire Resistive
Texas Instruments TSC2301IPAG	12 b	External Internal	Surface Mount	SPI	64-TQFP (10x10)	2.7 V	3.6 V	64-TQFP	85 °C	-40 °C	4 Wire Resistive
Texas Instruments TSC2301IZQZR	12 b	External Internal	Surface Mount	SPI	120-BGA Microstar Junior (6x6)	2.7 V	3.6 V	120-VFBGA	85 °C	-40 °C	4 Wire Resistive
Texas Instruments TSC2301IZQZ	12 b	External Internal	Surface Mount	SPI	120-BGA Microstar Junior (6x6)	2.7 V	3.6 V	120-VFBGA	85 °C	-40 °C	4 Wire Resistive
Texas Instruments TSC2301IGQZR	12 b	External Internal	Surface Mount	SPI	120-BGA Microstar Junior (6x6)	2.7 V	3.6 V	120-VFBGA	85 °C	-40 °C	4 Wire Resistive
