S12YBR-P Series
Manufacturer: ODU
Beta
⌘K

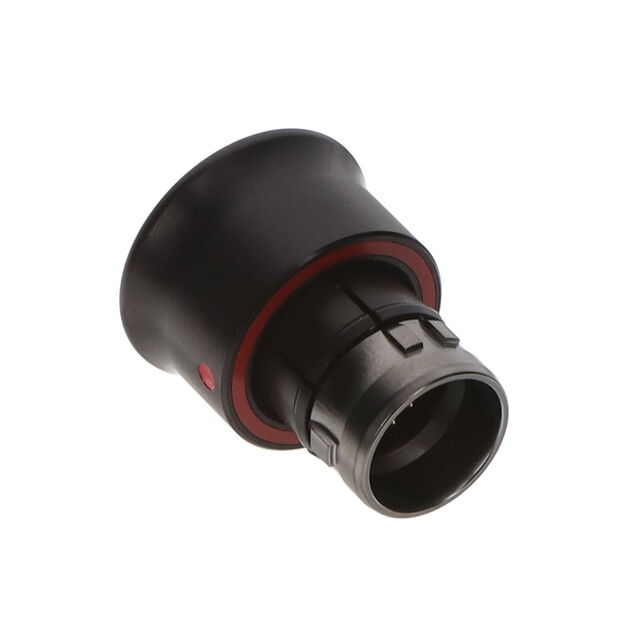

ODU AMC PLUG, STY 1, SZ 2, 26P,
| Part | Contact Finish - Mating | Connector Type | Voltage Rating | Mounting Type | Fastening Type | Material Flammability Rating | Contact Material | Backshell Material, Plating | Current Rating (Amps) | Color | Number of Positions | Shell Finish | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Shell Size - Insert [custom] | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Primary Material | Insert Material | Applications | Orientation | Cable Opening | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Plug Male Pins | 300 VDC | Free Hanging (In-Line) | Push-Pull | UL94 V-0 | Copper Alloy | Aluminum Ruthenium over Electroless Nickel | 5 A | Silver | 26 | Ruthenium over Electroless Nickel | IP68 IP69K | -51 °C | 125 °C | Aluminum | 2 | Shielded | 50 µin | 1.27 µm | Backshell | Metal | Polyetheretherketone (PEEK) | Industrial Medical Military | B | 0.394 in | 10 mm | |
Gold | Plug Male Pins | 400 V | Free Hanging (In-Line) | Push-Pull | UL94 V-0 | Copper Alloy | Aluminum Ruthenium over Electroless Nickel | 7 A | Silver | 12 | Ruthenium over Electroless Nickel | IP68 IP69K | -51 °C | 125 °C | Aluminum | 2 | Shielded | 50 µin | 1.27 µm | Backshell | Metal | Polyetheretherketone (PEEK) | Industrial Medical Military | B | 0.394 in | 10 mm | |
Gold | Plug Male Pins | 333 V | Free Hanging (In-Line) | Push-Pull | UL94 V-0 | Copper Alloy | Aluminum Ruthenium over Electroless Nickel | 7 A | Silver | 19 | Ruthenium over Electroless Nickel | IP68 IP69K | -51 °C | 125 °C | Aluminum | 2 | Shielded | 50 µin | 1.27 µm | Backshell | Metal | Polyetheretherketone (PEEK) | Industrial Medical Military | B | 0.394 in | 10 mm |
