53S401 Series
Manufacturer: Rosenberger
Beta
⌘K

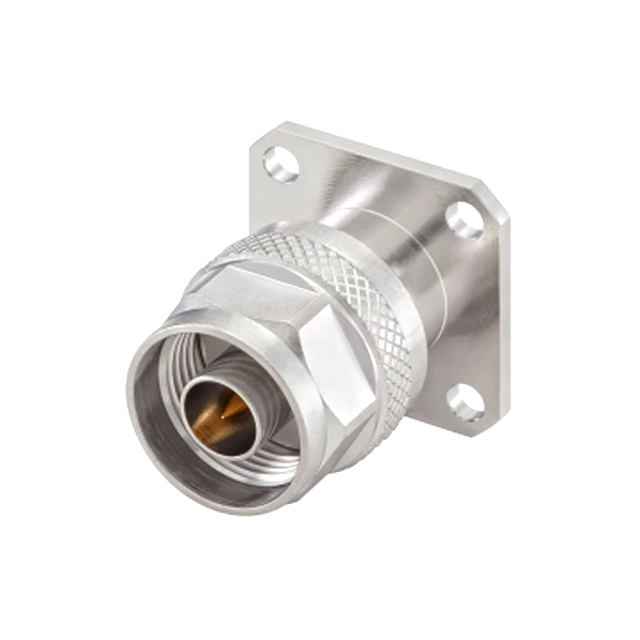

CONN N TYPE PLUG ST 50OHM SOLDER
| Part | Mating Cycles | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Body Material | Body Finish | Voltage Rating | Center Contact Plating | Mounting Feature | Contact Termination | Center Contact Material | Number of Ports | Frequency - Max [Max] | Impedance | Housing Color | Shield Termination | Connector Type | Connector Style | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | 0.05 dB | Brass | White Bronze | 500 V | Gold | Flange | Solder Cup | Brass | 1 | 11 GHz | 50 Ohms | Silver | Solder | Plug Male Pin | N Type | Panel Mount | Threaded |
