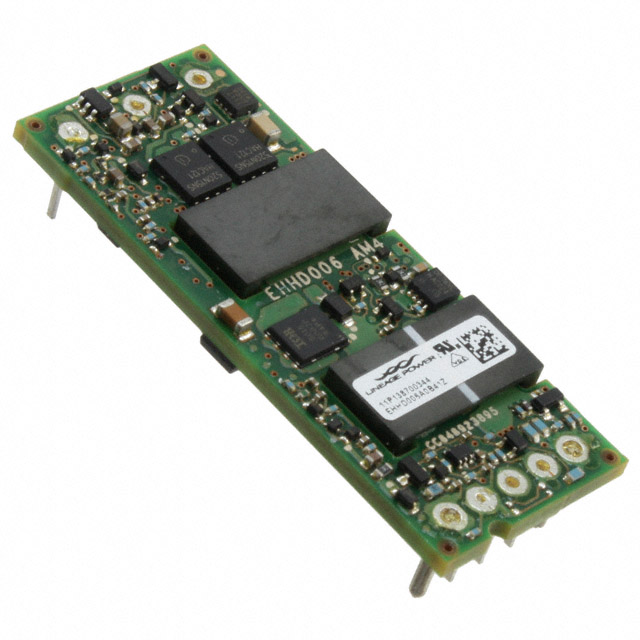

EHHD006 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 12V 72W
| Part | Voltage - Isolation | Features | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Type | Control Features | Package / Case | Efficiency | Mounting Type | Applications | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 2250 VDC | OCP OTP OVP Remote On/Off UVLO | 12 V | 85 °C | -40 C | 75 V | Isolated Module | Active Low Enable | 8-DIP Module 1/8 Brick | 92.5 % | Through Hole | ITE (Commercial) | 6 A | 18 V | 2.28 " | 7.8 mm | 0.9 in | 57.9 mm | 22.9 mm | 0.31 " | 1 | 72 W |
 OmniOn Power™ | 2250 VDC | OCP OTP OVP Remote On/Off UVLO | 12 V | 85 °C | -40 C | 75 V | Isolated Module | Active Low Enable | 8-DIP Module | 92.5 % | Through Hole | ITE (Commercial) | 6 A | 18 V | 2.28 " | 7.6 mm | 0.9 in | 57.9 mm | 22.8 mm | 0.3 in | 1 | 72 W |
OmniOn Power™ | 2250 VDC | OCP OTP OVP Remote On/Off UVLO | 12 V | 85 °C | -40 C | 75 V | Isolated Module | Active Low Enable | 8-DIP Module | 92.5 % | Through Hole | ITE (Commercial) | 6 A | 18 V | 2.28 " | 7.6 mm | 0.9 in | 57.9 mm | 22.8 mm | 0.3 in | 1 | 72 W |
OmniOn Power™ | 2250 VDC | OCP OTP OVP Remote On/Off UVLO | 12 V | 85 °C | -40 C | 75 V | Isolated Module | Active Low Enable | 8-DIP Module | 92.5 % | Through Hole | ITE (Commercial) | 6 A | 18 V | 2.28 " | 7.6 mm | 0.9 in | 57.9 mm | 22.8 mm | 0.3 in | 1 | 72 W |
OmniOn Power™ | 2250 VDC | OCP OTP OVP Remote On/Off UVLO | 12 V | 85 °C | -40 C | 75 V | Isolated Module | Active Low Enable | 8-DIP Module | 92.5 % | Through Hole | ITE (Commercial) | 6 A | 18 V | 2.28 " | 7.6 mm | 0.9 in | 57.9 mm | 22.8 mm | 0.3 in | 1 | 72 W |
OmniOn Power™ | 2250 VDC | OCP OTP OVP Remote On/Off UVLO | 12 V | 85 °C | -40 C | 75 V | Isolated Module | Active Low Enable | 8-DIP Module 1/8 Brick | 92.5 % | Through Hole | ITE (Commercial) | 6 A | 18 V | 2.28 " | 7.8 mm | 0.9 in | 57.9 mm | 22.9 mm | 0.31 " | 1 | 72 W |
OmniOn Power™ | 2250 VDC | OCP OTP OVP Remote On/Off UVLO | 12 V | 85 °C | -40 C | 75 V | Isolated Module | Active Low Enable | 8-DIP Module | 92.5 % | Through Hole | ITE (Commercial) | 6 A | 18 V | 2.28 " | 7.6 mm | 0.9 in | 57.9 mm | 22.8 mm | 0.3 in | 1 | 72 W |
OmniOn Power™ | 2250 VDC | OCP OTP OVP Remote On/Off UVLO | 12 V | 85 °C | -40 C | 75 V | Isolated Module | Active Low Enable | 8-DIP Module | 92.5 % | Through Hole | ITE (Commercial) | 6 A | 18 V | 2.28 " | 7.6 mm | 0.9 in | 57.9 mm | 22.8 mm | 0.3 in | 1 | 72 W |
