M20-876 Series

Catalog

4+4 POS. MALE DIL VERTICAL SMT CONN. (P+P) ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Contact Finish - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Material	Current Rating (Amps)	Insulation Color	Style	Contact Type	Fastening Type	Shrouding	Insulation Material	Connector Type	Voltage Rating	Number of Rows [custom]	Features	Pitch - Mating	Pitch - Mating	Number of Positions	Mounting Type	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Positions Loaded

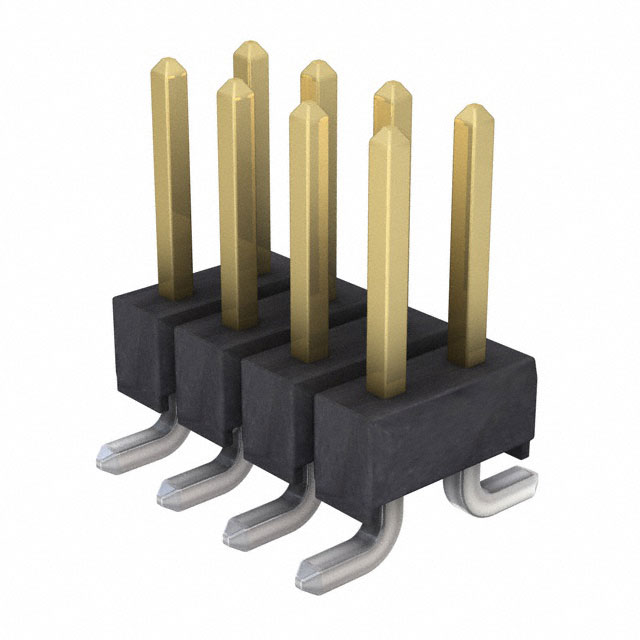

Harwin Inc. M20-8760442P	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Tin	Solder	-40 C	105 ░C	Square	Brass	3 A	Black	Board to Board Cable	Male Pin	Push-Pull	Unshrouded	Nylon 6T Polyamide (PA6T)	Header Cuttable	250 V	2	Pick and Place	0.1 "	2.54 mm	8	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm	Gold	0.228 in	5.8 mm	UL94 V-0	All
Harwin Inc. M20-8760742P	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Tin	Solder	-40 C	105 ░C	Square	Brass	3 A	Black	Board to Board Cable	Male Pin	Push-Pull	Unshrouded	Nylon 6T Polyamide (PA6T)	Header Cuttable	250 V	2	Pick and Place	0.1 "	2.54 mm	14	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm	Gold	0.228 in	5.8 mm	UL94 V-0	All
Harwin Inc. M20-8760746R		Tin	Solder	-40 C	105 ░C	Square	Brass	3 A	Black	Board to Board Cable	Male Pin	Push-Pull	Unshrouded	Nylon 6T Polyamide (PA6T)	Header Cuttable	250 VAC	2		0.1 "	2.54 mm	14	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm		0.228 in	5.8 mm	UL94 V-0	All
Harwin Inc. M20-8760846	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Tin	Solder	-40 C	105 ░C	Square	Brass	3 A	Black	Board to Board Cable	Male Pin	Push-Pull	Unshrouded	Nylon 6T Polyamide (PA6T)	Header Cuttable	250 V	2		0.1 "	2.54 mm	16	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm		0.228 in	5.8 mm	UL94 V-0	All
Harwin Inc. M20-8760546	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Tin	Solder	-40 C	105 ░C	Square	Brass	3 A	Black	Board to Board Cable	Male Pin	Push-Pull	Unshrouded	Nylon 6T Polyamide (PA6T)	Header Cuttable	250 V	2		0.1 "	2.54 mm	10	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm		0.228 in	5.8 mm	UL94 V-0	All

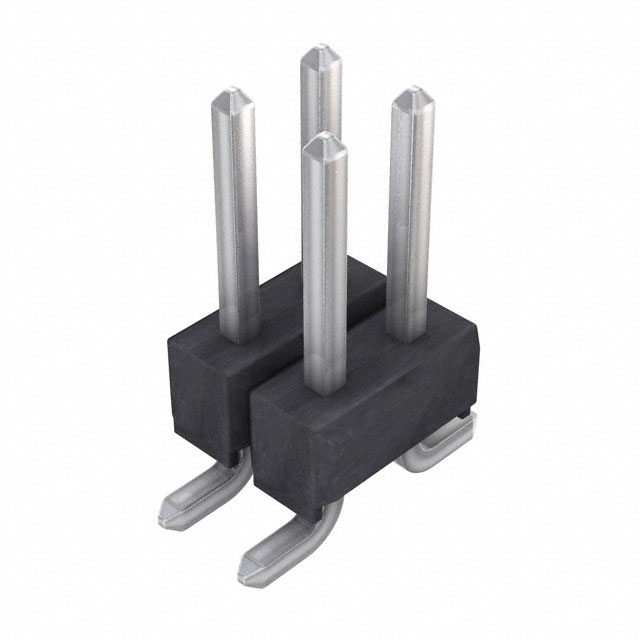

Harwin Inc. M20-8760246P	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Tin	Solder	-40 C	105 ░C	Square	Brass	3 A	Black	Board to Board Cable	Male Pin	Push-Pull	Unshrouded	Nylon 6T Polyamide (PA6T)	Header Cuttable	250 V	2	Pick and Place	0.1 "	2.54 mm	4	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm		0.228 in	5.8 mm	UL94 V-0	All
Harwin Inc. M20-8760646	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Tin	Solder	-40 C	105 ░C	Square	Brass	3 A	Black	Board to Board Cable	Male Pin	Push-Pull	Unshrouded	Nylon 6T Polyamide (PA6T)	Header Cuttable	250 V	2		0.1 "	2.54 mm	12	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm		0.228 in	5.8 mm	UL94 V-0	All
Harwin Inc. M20-8760446R		Tin	Solder	-40 C	105 ░C	Square	Brass	3 A	Black	Board to Board Cable	Male Pin	Push-Pull	Unshrouded	Nylon 6T Polyamide (PA6T)	Header Cuttable	250 VAC	2		0.1 "	2.54 mm	8	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm		0.228 in	5.8 mm	UL94 V-0	All
Harwin Inc. M20-8761842	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Tin	Solder	-40 C	105 ░C	Square	Brass	3 A	Black	Board to Board Cable	Male Pin	Push-Pull	Unshrouded	Nylon 6T Polyamide (PA6T)	Header Cuttable	250 V	2		0.1 "	2.54 mm	36	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm	Gold	0.228 in	5.8 mm	UL94 V-0	All
Harwin Inc. M20-8762042	11.53 mm 12.23 mm 12.63 mm 18.13 mm	Tin	Solder	-40 C	105 ░C	Square	Brass	3 A	Black	Board to Board Cable	Male Pin	Push-Pull	Unshrouded	Nylon 6T Polyamide (PA6T)	Header Cuttable	250 V	2		0.1 "	2.54 mm	40	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm	Gold	0.228 in	5.8 mm	UL94 V-0	All
