399-93 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

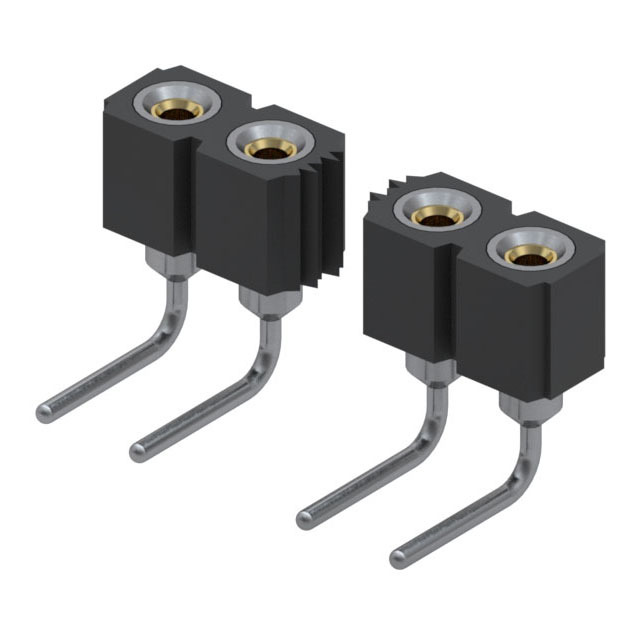

CONN RCPT 32POS 0.1 GOLD PCB R/A
| Part | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Contact Shape | Insulation Color | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Number of Rows | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Number of Positions Loaded | Contact Finish - Post | Contact Finish - Mating | Insulation Height | Insulation Height | Material Flammability Rating | Termination | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | Circular | Black | Receptacle | 0.1 " | 2.54 mm | 0.76 Ám | 30 Áin | 3 A | 1 | 0.126 " | 3.2 mm | Right Angle Through Hole | All | Tin-Lead | Gold | 0.1 in | 2.54 mm | UL94 V-0 | Solder | Push-Pull | -55 C | 125 °C | Female Socket | |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | Circular | Black | Receptacle | 0.1 " | 2.54 mm | 0.76 Ám | 30 Áin | 3 A | 1 | 0.126 " | 3.2 mm | Right Angle Through Hole | All | Tin-Lead | Gold | 0.1 in | 2.54 mm | UL94 V-0 | Solder | Push-Pull | -55 C | 125 °C | Female Socket | 41 |
 Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | Circular | Black | Receptacle | 0.1 " | 2.54 mm | 0.76 Ám | 30 Áin | 3 A | 1 | 0.126 " | 3.2 mm | Right Angle Through Hole | All | Tin-Lead | Gold | 0.1 in | 2.54 mm | UL94 V-0 | Solder | Push-Pull | -55 C | 125 °C | Female Socket | 38 |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | Circular | Black | Receptacle | 0.1 " | 2.54 mm | 0.76 Ám | 30 Áin | 3 A | 1 | 0.126 " | 3.2 mm | Right Angle Through Hole | All | Tin-Lead | Gold | 0.1 in | 2.54 mm | UL94 V-0 | Solder | Push-Pull | -55 C | 125 °C | Female Socket | 19 |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | Circular | Black | Receptacle | 0.1 " | 2.54 mm | 0.76 Ám | 30 Áin | 3 A | 1 | 0.126 " | 3.2 mm | Right Angle Through Hole | All | Tin-Lead | Gold | 0.1 in | 2.54 mm | UL94 V-0 | Solder | Push-Pull | -55 C | 125 °C | Female Socket | 21 |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | Circular | Black | Receptacle | 0.1 " | 2.54 mm | 0.76 Ám | 30 Áin | 3 A | 1 | 0.126 " | 3.2 mm | Right Angle Through Hole | All | Tin-Lead | Gold | 0.1 in | 2.54 mm | UL94 V-0 | Solder | Push-Pull | -55 C | 125 °C | Female Socket | 42 |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | Circular | Black | Receptacle | 0.1 " | 2.54 mm | 0.76 Ám | 30 Áin | 3 A | 1 | 0.126 " | 3.2 mm | Right Angle Through Hole | All | Tin-Lead | Gold | 0.1 in | 2.54 mm | UL94 V-0 | Solder | Push-Pull | -55 C | 125 °C | Female Socket | 11 |
 Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | Circular | Black | Receptacle | 0.76 Ám | 30 Áin | 3 A | 1 | 0.126 " | 3.2 mm | Right Angle Through Hole | All | Tin-Lead | Gold | 0.1 in | 2.54 mm | UL94 V-0 | Solder | Push-Pull | -55 C | 125 °C | Female Socket | 1 | ||
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | Circular | Black | Receptacle | 0.1 " | 2.54 mm | 0.76 Ám | 30 Áin | 3 A | 1 | 0.126 " | 3.2 mm | Right Angle Through Hole | All | Tin-Lead | Gold | 0.1 in | 2.54 mm | UL94 V-0 | Solder | Push-Pull | -55 C | 125 °C | Female Socket | 5 |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | Circular | Black | Receptacle | 0.1 " | 2.54 mm | 0.76 Ám | 30 Áin | 3 A | 1 | 0.126 " | 3.2 mm | Right Angle Through Hole | All | Tin-Lead | Gold | 0.1 in | 2.54 mm | UL94 V-0 | Solder | Push-Pull | -55 C | 125 °C | Female Socket | 18 |
