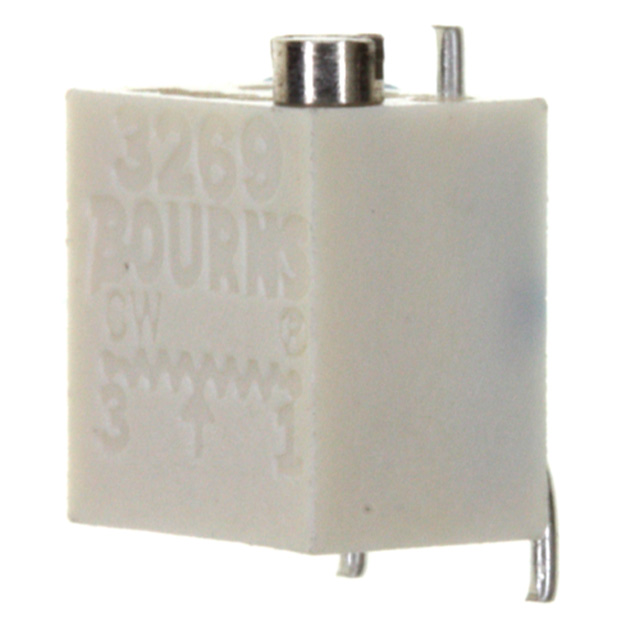

3269P Series

Catalog

TRIMMER, MULTI TURN, CERMET, SIDE ADJUST, 2 KOHM, SURFACE MOUNT, 12 TURNS

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Termination Style	Adjustment Type	Temperature Coefficient	Tolerance	Power (Watts)	Power (Watts)	Number of Turns	Resistance	Resistive Material
Bourns Inc. 3269P-1-202LF	4.32 mm	0.17 in	0.25 in	6.35 mm	Surface Mount	Gull Wing	Side Adjustment	100 ppm/°C	10 %	0.25 W	0.25 W	12	2 kOhms	Cermet
Bourns Inc. 3269P-1-103G	4.32 mm	0.17 in	0.25 in	6.35 mm	Surface Mount	Gull Wing	Side Adjustment	100 ppm/°C	10 %	0.25 W	0.25 W	12	10000 Ohms	Cermet
Bourns Inc. 3269P-1-102GLF	4.32 mm	0.17 in	0.25 in	6.35 mm	Surface Mount	Gull Wing	Side Adjustment	100 ppm/°C	10 %	0.25 W	0.25 W	12	1000 Ohms	Cermet
Bourns Inc. 3269P-ES2-102	4.32 mm	0.17 in	0.25 in	6.35 mm	Surface Mount	Gull Wing	Side Adjustment	100 ppm/°C	10 %	0.25 W	0.25 W	12	1000 Ohms	Cermet
Bourns Inc. 3269P-1-101	4.32 mm	0.17 in	0.25 in	6.35 mm	Surface Mount	Gull Wing	Side Adjustment	100 ppm/°C	10 %	0.25 W	0.25 W	12	100 Ohms	Cermet
Bourns Inc. 3269P-1-200	4.32 mm	0.17 in	0.25 in	6.35 mm	Surface Mount	Gull Wing	Side Adjustment	100 ppm/°C	10 %	0.25 W	0.25 W	12	20 Ohms	Cermet
Bourns Inc. 3269P-1-253LF	4.32 mm	0.17 in	0.25 in	6.35 mm	Surface Mount	Gull Wing	Side Adjustment	100 ppm/°C	10 %	0.25 W	0.25 W	12	25 kOhms	Cermet
Bourns Inc. 3269P-1-103GLF	4.32 mm	0.17 in	0.25 in	6.35 mm	Surface Mount	Gull Wing	Side Adjustment	100 ppm/°C	10 %	0.25 W	0.25 W	12	10000 Ohms	Cermet
Bourns Inc. 3269P-1-202	4.32 mm	0.17 in	0.25 in	6.35 mm	Surface Mount	Gull Wing	Side Adjustment	100 ppm/°C	10 %	0.25 W	0.25 W	12	2 kOhms	Cermet
Bourns Inc. 3269P-1-500LF	4.32 mm	0.17 in	0.25 in	6.35 mm	Surface Mount	Gull Wing	Side Adjustment	100 ppm/°C	10 %	0.25 W	0.25 W	12	50 Ohms	Cermet
