4ATH9 Series
Manufacturer: MEC Switches
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Mechanical Life | Switch Travel | Actuator Material | Operating Force | Outline [x] | Outline [y] | Actuator Type | Actuator Orientation | Mounting Type | Contact Rating @ Voltage | Illumination Type, Color | Termination Style | Features | Illumination | Actuator Height off PCB, Vertical [z] | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Switch Function | Ingress Protection | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

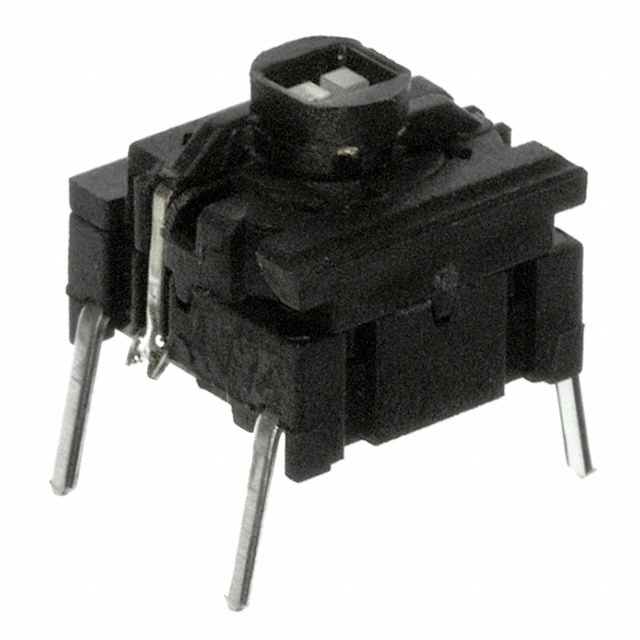

 MEC Switches | 10000000 Cycles | 1 mm | Polyphenylene Sulfide (PPS) | 300 gf | 10.1 mm | 10.1 mm | Plunger for Cap | Top Actuated | Through Hole | 0.05 A 24 VDC | Green/Red LED | PC Pin | Sealed - Flux Protection | Illuminated | 8.4 mm | 85 °C | -30 ░C | SPST-NO | Off-Mom | IP67 - Dust Tight Waterproof | 2 VDC 2.2 VDC |

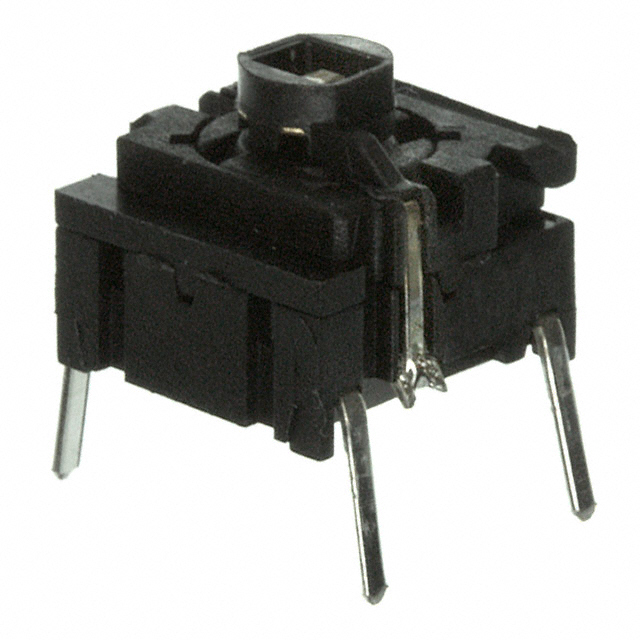

 MEC Switches | 10000000 Cycles | 1 mm | Polyphenylene Sulfide (PPS) | 300 gf | 10.1 mm | 10.1 mm | Plunger for Cap | Top Actuated | Through Hole | 0.05 A 24 VDC | LED Yellow | PC Pin | Sealed - Flux Protection | Illuminated | 8.4 mm | 85 °C | -30 ░C | SPST-NO | Off-Mom | IP67 - Dust Tight Waterproof | 2 VDC |
