XDVG14 Series
Manufacturer: SunLED
Beta
⌘K

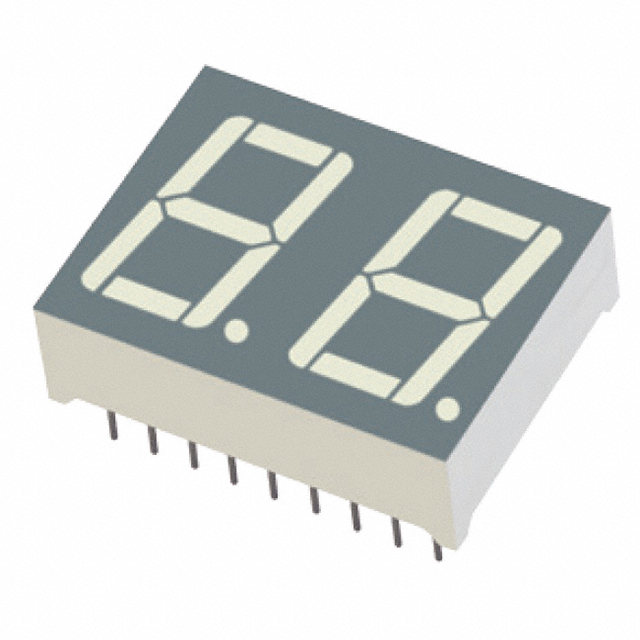

DISPLAY 7SEG 0.56" DBL GRN 18DIP
| Part | Package / Case [x] | Package / Case [x] | Package / Case | Voltage - Forward (Vf) (Typ) | Color | Current - Test | Millicandela Rating | Digit/Alpha Size | Digit/Alpha Size | Display Type | Common Pin | Power Dissipation (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Number of Characters | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Number of Characters | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 15.24 mm | 0.6 in | 18-DIP | 2 V | Green | 10 mA | 12 mcd | 0.56 in | 14.22 mm | 7-Segment | Common Anode | 75 mw | 0.315 in | 19.05 mm | 0.984 " | 0.75 in | 8 mm | 25 mm | 2 | |||||||
 SunLED | 10-DIP | 2 V | Green | 10 mA | 12 mcd | 0.56 in | 14.22 mm | 7-Segment | Common Anode | 75 mw | 0.315 in | 0.5 " | 0.75 in | 12.7 mm | 19.05 mm | 8 mm | 0.6 in 15.24 mm | 1 | ||||||||
 SunLED | 15.24 mm | 0.6 in | 18-DIP | 2 V | Green | 10 mA | 12 mcd | 0.56 in | 14.22 mm | 7-Segment | Common Cathode | 75 mw | 0.315 in | 19.05 mm | 0.984 " | 0.75 in | 8 mm | 25 mm | 2 | |||||||
 SunLED | 12-DIP | 2 V | Green | 10 mA | 11 mcd | 0.56 in | 14.22 mm | 7-Segment | Common Cathode | 75 mw | 3 | 15.24 mm | 0.6 in |
