MAX98089 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

LOW-POWER, STEREO AUDIO CODEC WITH FLEXSOUND TECHNOLOGY

Part	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Mounting Type	Type	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Supplier Device Package	Voltage - Supply, Digital [Min] [custom]	Voltage - Supply, Digital [Max] [custom]	Resolution (Bits)	Package / Case	Dynamic Range, ADCs / DACs (db) Typ	Dynamic Range, ADCs / DACs (db) Typ	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package [custom]	Supplied Contents	Contents	Function	Embedded	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part

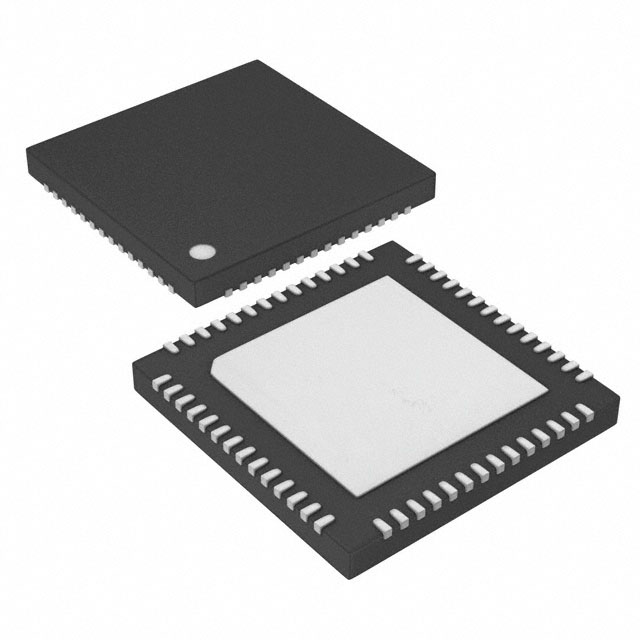

Analog Devices Inc./Maxim Integrated MAX98089ETN+	85 °C	-40 C	I2C Serial	Surface Mount	Stereo Audio	2	2	56-TQFN (7x7)	1.65 V	3.6 V	24 b	56-WFQFN Exposed Pad	101 db	93 dB	1.65 V	2 V	101 db	93 db
Analog Devices Inc./Maxim Integrated MAX98089ETN+T	85 °C	-40 C	I2C Serial	Surface Mount	Stereo Audio	2	2	56-TQFN (7x7)	1.65 V	3.6 V	24 b	56-WFQFN Exposed Pad	101 db	93 dB	1.65 V	2 V	101 db	93 db
Analog Devices Inc./Maxim Integrated MAX98089EWY+	85 °C	-40 C	I2C I2S PCM	Surface Mount	Stereo Audio	2	2		1.65 V	3.6 V	24 b	63-WFBGA WLBGA	101 db	93 dB	1.65 V	2 V	101 db	93 db	3.78	3.28	63-WLP
Analog Devices Inc./Maxim Integrated MAX98089EWY+T	85 °C	-40 C	I2C Serial	Surface Mount	Stereo Audio	2	2		1.65 V	3.6 V	24 b	63-WFBGA WLBGA	101 db	93 dB	1.65 V	2 V	101 db	93 db	3.78	3.28	63-WLP

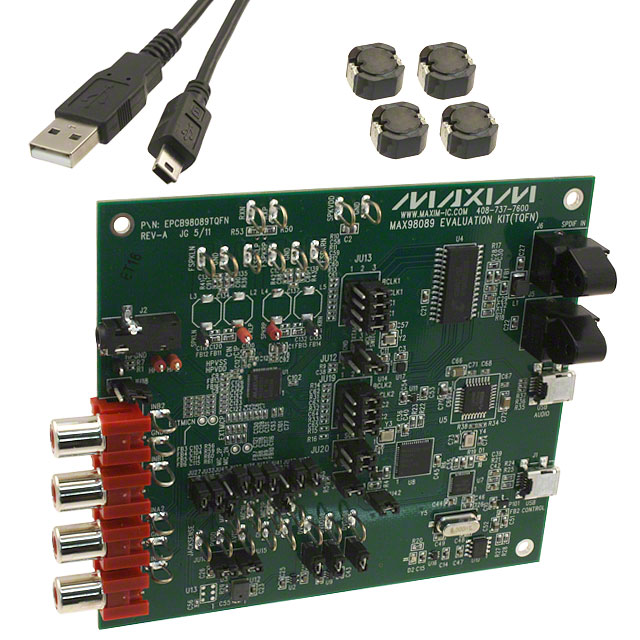

Analog Devices Inc./Maxim Integrated MAX98089EVKIT#TQFN					Audio																	Board(s) Cable(s)	Board Cable	CODEC	Yes DSP	5.5 V	2.8 V	MAX98089

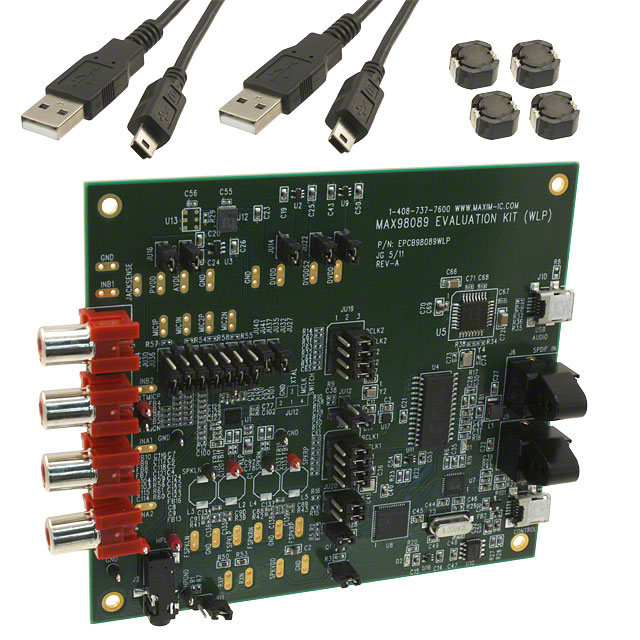

Analog Devices Inc./Maxim Integrated MAX98089EVKIT#WLP					Audio																	Board(s) Cable(s)	Board Cable	CODEC	Yes DSP	5.5 V	2.8 V	MAX98089
