2355177 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 10P,2MM,BRK HDR,SRVT,2.8,0.38AU,TB

Part	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Contact Material	Termination	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Contact Finish - Post	Contact Shape	Overall Contact Length	Overall Contact Length	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post	Connector Type	Number of Positions

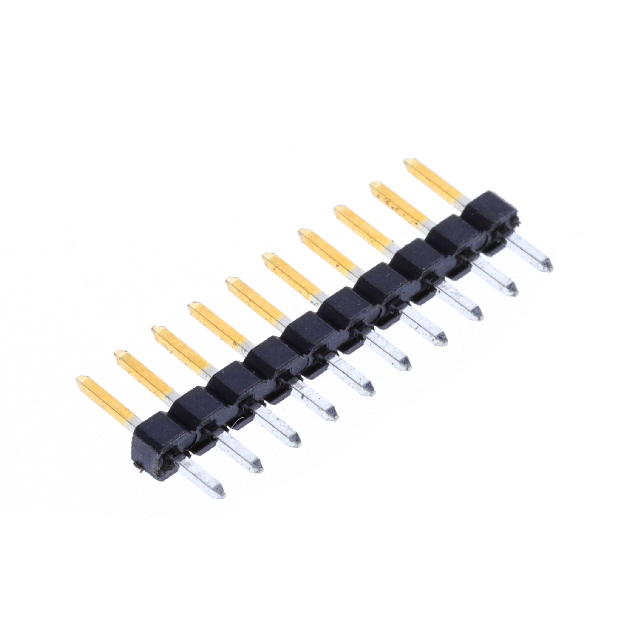

TE Connectivity Raychem Cable Protection 1-2355177-0	All	125 °C	-40 °C	Unshrouded	Copper Alloy	Solder	125 VAC	0.079 in	2 mm	Male Pin	Tin	Square	8.3 mm	0.327 in	Black	15 µin	0.38 µm	Thermoplastic	Push-Pull	4 mm	0.157 in	1.5 mm	0.059 "	UL94 V-0	1	Gold	2 çm	78.7 çin	Through Hole	2 A	0.11 in	2.79 mm	Breakaway Header	10

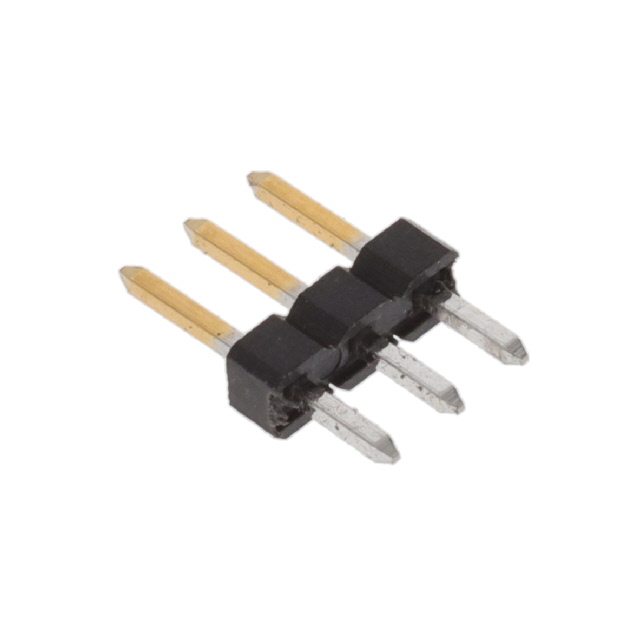

TE Connectivity Raychem Cable Protection 2355177-3	All	125 °C	-40 °C	Unshrouded	Copper Alloy	Solder	125 VAC	0.079 in	2 mm	Male Pin	Tin	Square	8.3 mm	0.327 in	Black	15 µin	0.38 µm	Thermoplastic	Push-Pull	4 mm	0.157 in	1.5 mm	0.059 "	UL94 V-0	1	Gold	2 çm	78.7 çin	Through Hole	2 A	0.11 in	2.79 mm	Breakaway Header

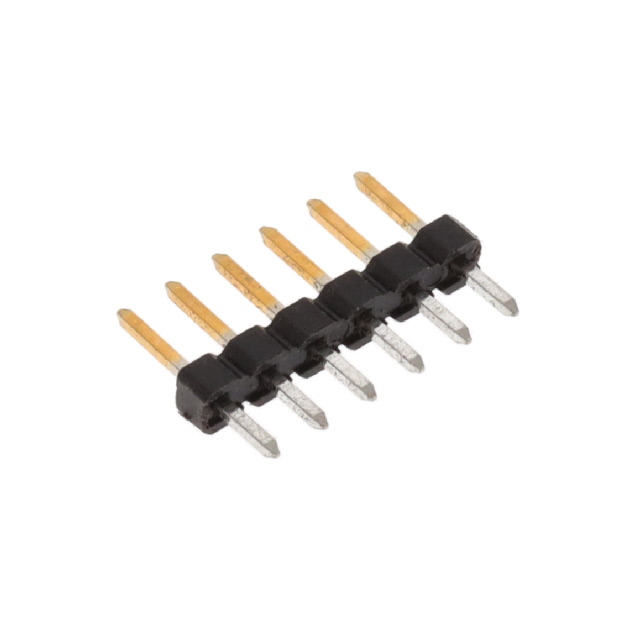

TE Connectivity Raychem Cable Protection 2355177-6	All	125 °C	-40 °C	Unshrouded	Copper Alloy	Solder	125 VAC	0.079 in	2 mm	Male Pin	Tin	Square	8.3 mm	0.327 in	Black	15 µin	0.38 µm	Thermoplastic	Push-Pull	4 mm	0.157 in	1.5 mm	0.059 "	UL94 V-0	1	Gold	2 çm	78.7 çin	Through Hole	2 A	0.11 in	2.79 mm	Breakaway Header	6

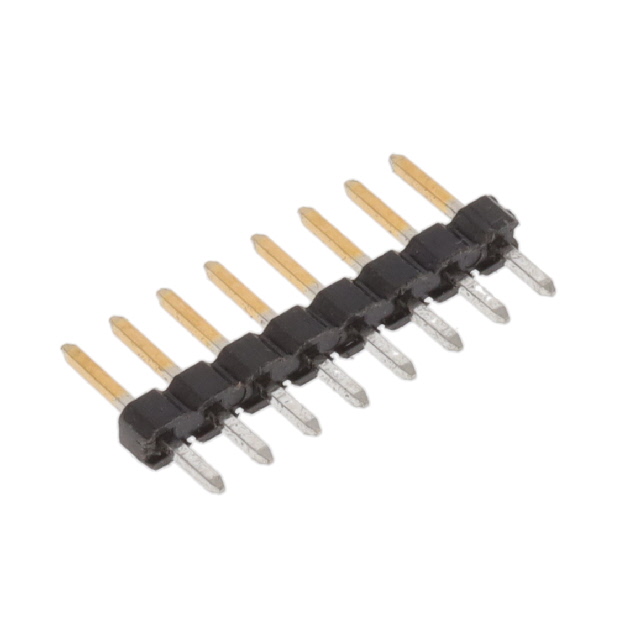

TE Connectivity Raychem Cable Protection 2355177-8	All	125 °C	-40 °C	Unshrouded	Copper Alloy	Solder	125 VAC	0.079 in	2 mm	Male Pin	Tin	Square	8.3 mm	0.327 in	Black	15 µin	0.38 µm	Thermoplastic	Push-Pull	4 mm	0.157 in	1.5 mm	0.059 "	UL94 V-0	1	Gold	2 çm	78.7 çin	Through Hole	2 A	0.11 in	2.79 mm	Breakaway Header	8

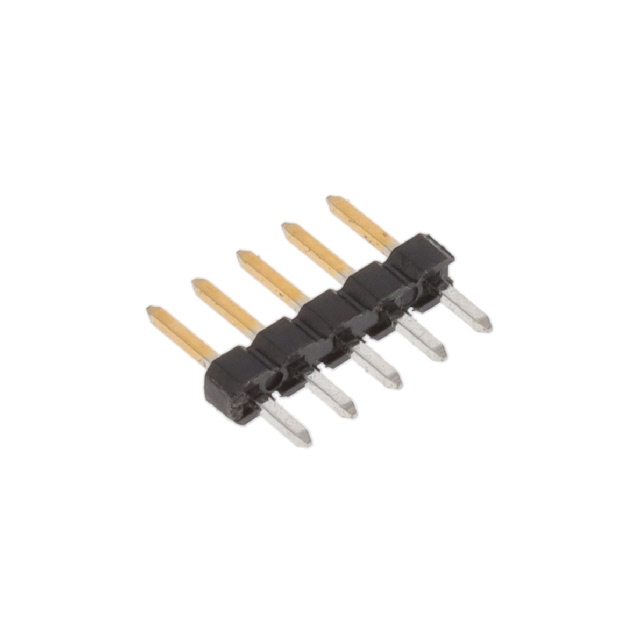

TE Connectivity Raychem Cable Protection 2355177-5	All	125 °C	-40 °C	Unshrouded	Copper Alloy	Solder	125 VAC	0.079 in	2 mm	Male Pin	Tin	Square	8.3 mm	0.327 in	Black	15 µin	0.38 µm	Thermoplastic	Push-Pull	4 mm	0.157 in	1.5 mm	0.059 "	UL94 V-0	1	Gold	2 çm	78.7 çin	Through Hole	2 A	0.11 in	2.79 mm	Breakaway Header
