M3232 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

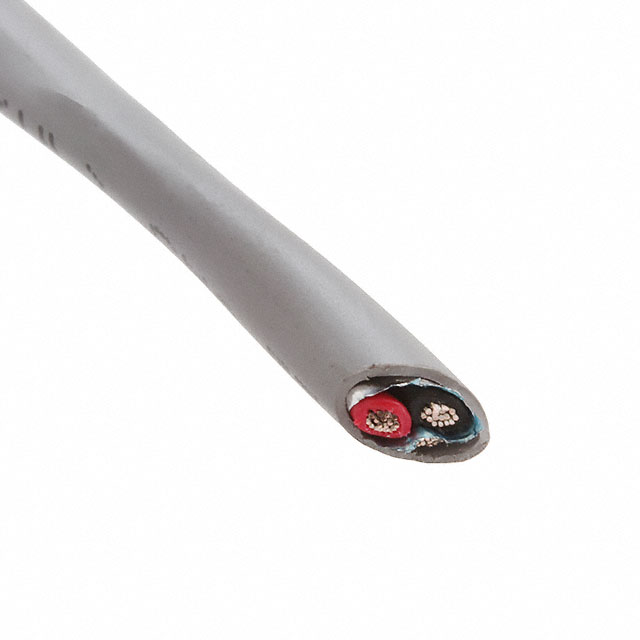

CABLE 2CON 20AWG SLATE SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Length | Length | Voltage | Jacket Color | Number of Conductors | Wire Gauge | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Conductor Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 0.187 in | 4.75 mm | Multi-Conductor | 152.4 m | 500 ft | 300 VDC | Slate | 2 | 20 AWG | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | 0.02 " | 0.508 mm | Drain Wire | Copper Tinned | Polyethylene (PE) | 80 °C | -20 ░C | Foil |
