FDSD096 Series
Manufacturer: Belden Inc.
Beta
⌘K
CBL FIBER OPTIC
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Tensile Strength | Cladding Diameter [diameter] | Jacket Color | Jacket (Insulation) Material | Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Core Diameter [diameter] | Style | Features | Features | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | ||||||||||||||

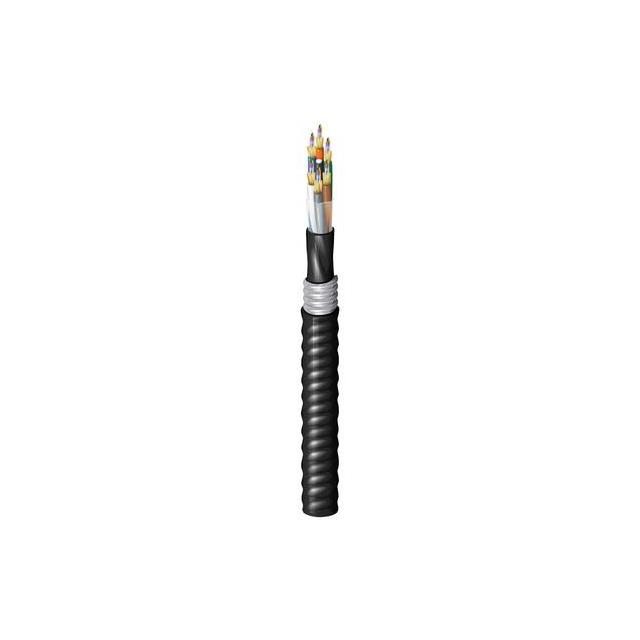

 Belden Inc. | 70 °C | -40 C | 81.6 kg | 125 µm | Black | Poly-Vinyl Chloride (PVC) | Singlemode | 32 mm | 1.26 in | 9 µm | Multiple Fibers | Armored | 96 Fibers | OFCP |

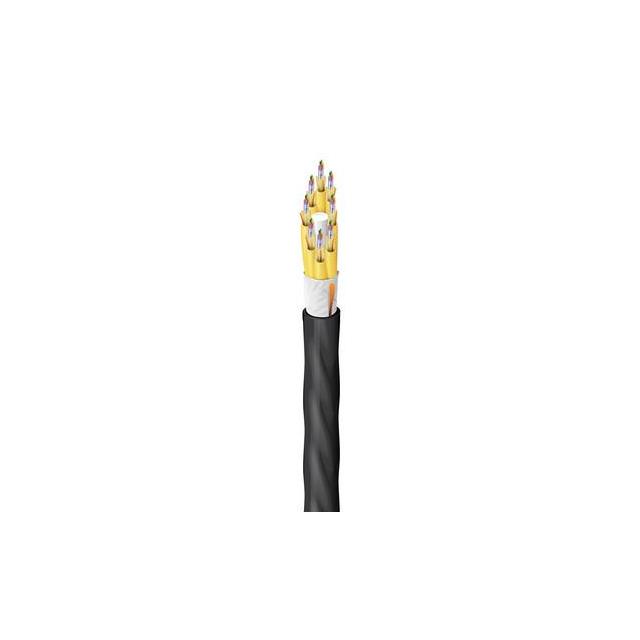

Belden Inc. | 70 °C | -40 C | 81.6 kg | 125 µm | Black | Poly-Vinyl Chloride (PVC) | Singlemode | 22.86 mm | 0.9 " | 9 µm | Multiple Fibers | 96 Fibers Rip Cord | OFNP | |
 Belden Inc. | 70 °C | -40 C | 81.6 kg | 125 µm | Black | Low Smoke Zero Halogen (LSZH) | Singlemode | 24.82 mm | 0.977 in | 9 µm | Multiple Fibers | 96 Fibers Rip Cord | OFNR | |
Belden Inc. | 70 °C | -40 C | 81.6 kg | 125 µm | Black | Poly-Vinyl Chloride (PVC) | Singlemode | 24.82 mm | 0.977 in | 9 µm | Multiple Fibers | 96 Fibers Rip Cord | OFNR |
