ACA5-20RM Series
Manufacturer: Murata Electronics
Beta
⌘K
AMMETER 0-100A LED PANEL MOUNT
| Part | Weight [custom] | Weight [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Measuring Range [Max] | Measuring Range [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Measuring Type | Type | Display Characters - Height [custom] | Display Characters - Height [custom] | Termination Style | Features | Display Type | Number of Characters Per Row [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

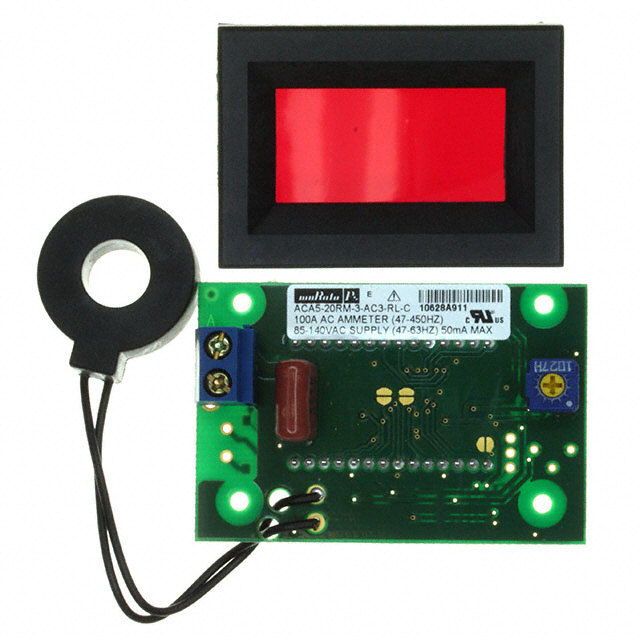

 Murata Electronics | 0.069 lb | 31.3 g | 0 °C | 60 °C | 33.93 mm | 21.29 mm | 100 A | 0 A | 140 VAC/DC | 85 VAC/DC | Current | Ammeter | 0.37 in | 9.4 mm | Screw Terminal | Built In Current Transformer (Secondary) | LED Red Characters | 3.5 | Panel Mount - Bezel |

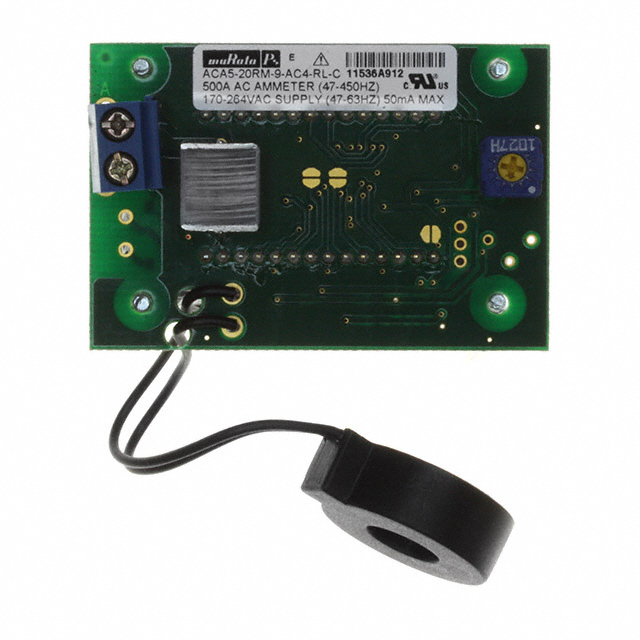

 Murata Electronics | 0.069 lb | 31.3 g | 0 °C | 60 °C | 33.93 mm | 21.29 mm | 500 A | 0 A | 264 VAC | 170 VAC | Current | Ammeter | 0.37 in | 9.4 mm | Screw Terminal | Built In Current Transformer (Secondary) | LED Red Characters | 3.5 | Panel Mount - Bezel |

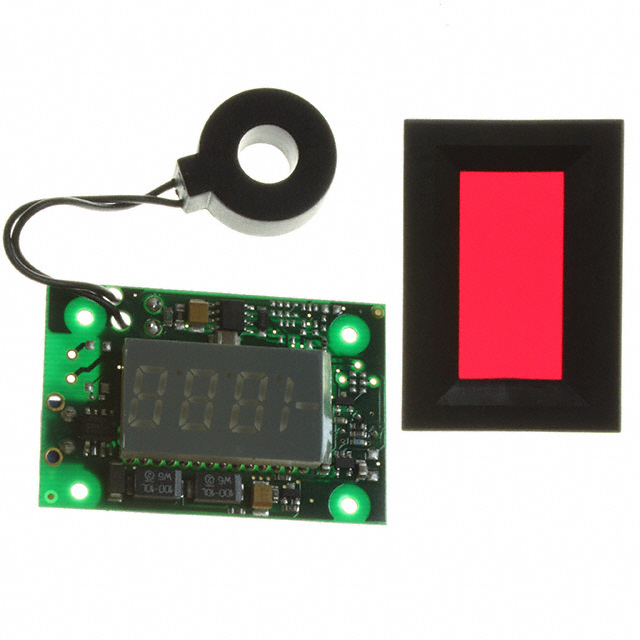

 Murata Electronics | 0.069 lb | 31.3 g | 0 °C | 60 °C | 33.93 mm | 21.29 mm | 500 A | 0 A | 140 VAC/DC | 85 VAC/DC | Current | Ammeter | 0.37 in | 9.4 mm | Screw Terminal | Built In Current Transformer (Secondary) | LED Red Characters | 3.5 | Panel Mount - Bezel |
