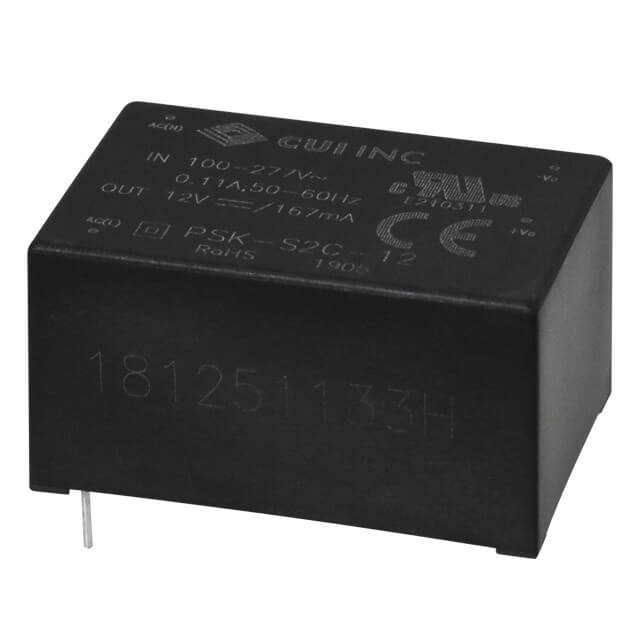

PSK-S2C Series

Switching Power Supplies ac-dc, 2 W, 12 Vdc, single output, encapsulated PCB

Manufacturer: CUI Inc.

Catalog

Switching Power Supplies ac-dc, 2 W, 12 Vdc, single output, encapsulated PCB

Part	Number of Outputs	Voltage - Output 1	Type	Line Regulation	Efficiency	Standard Number	Applications	Load Regulation	Package / Case	Approval Agency	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)
CUI Inc. PSK-S2C-3	1	3.3 V	Enclosed	2 %	65 %	55024 55032 Class A 62368-1	ITE (Commercial)	±5%	4-DIP Module	CB Scheme EN IEC UL	Through Hole	305 VAC 430 VDC	85 VAC 120 VDC	600 mA	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm	2 W
CUI Inc. PSK-S2C-9	1	9 V	Enclosed	2 %	72 %	55024 55032 Class A 62368-1	ITE (Commercial)	±5%	4-DIP Module	CB Scheme EN IEC UL	Through Hole	305 VAC 430 VDC	85 VAC 120 VDC	222 mA	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm	2 W
CUI Inc. PSK-S2C-12	1	12 V	Enclosed	2 %	76 %	55024 55032 Class A 62368-1	ITE (Commercial)	±5%	4-DIP Module	CB Scheme EN IEC UL	Through Hole	305 VAC 430 VDC	85 VAC 120 VDC	167 mA	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm	2 W
CUI Inc. PSK-S2C-15	1	15 V	Enclosed	2 %	76 %	55024 55032 Class A 62368-1	ITE (Commercial)	±5%	4-DIP Module	CB Scheme EN IEC UL	Through Hole	305 VAC 430 VDC	85 VAC 120 VDC	133 mA	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm	2 W
CUI Inc. PSK-S2C-24	1	24 V	Enclosed	2 %	78 %	55024 55032 Class A 62368-1	ITE (Commercial)	±5%	4-DIP Module	CB Scheme EN IEC UL	Through Hole	305 VAC 430 VDC	85 VAC 120 VDC	83 mA	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm	2 W

Switching Power Supplies ac-dc, 2 W, 12 Vdc, single output, encapsulated PCB
