PFR6X04 Series

Catalog

COPPER CABLE, CAT 6A, 4-PAIR, 23 AWG, F/

Part	Shield Coverage	Shield Material	Cable Type	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Length	Length	Jacket (Insulation) Material	Wire Gauge	Number of Conductors	Jacket Color	Voltage	Conductor Material	Conductor Insulation
Panduit Corp PFR6X04OR-CG	100 %	Aluminum	Multi-Pair Cat6a	Solid	7.21 mm	0.284 in	Foil	304.8 m	1000 ft	Low Smoke Zero Halogen (LSZH) Riser	23 AWG	8	Orange	80 V	Copper Bare	Polyethylene (PE)

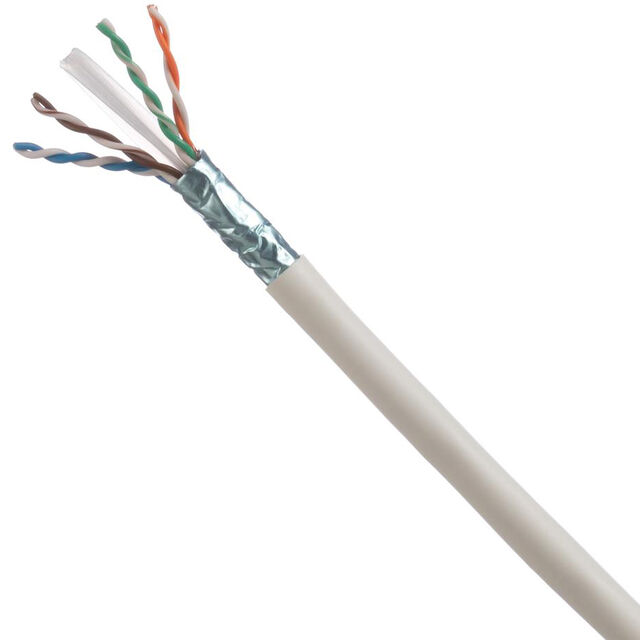

Panduit Corp PFR6X04GR-CG	100 %	Aluminum	Multi-Pair Cat6a	Solid	7.21 mm	0.284 in	Foil	304.8 m	1000 ft	Low Smoke Zero Halogen (LSZH) Riser	23 AWG	8	Green	80 V	Copper Bare	Polyethylene (PE)
Panduit Corp PFR6X04WH-CG-S

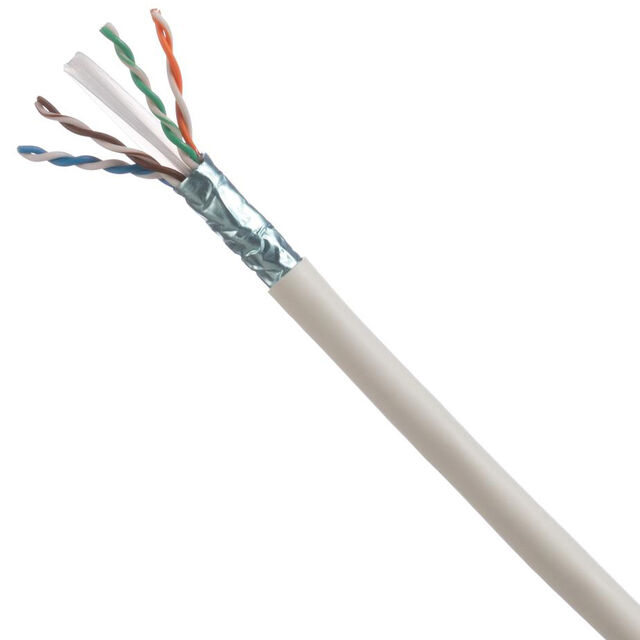

Panduit Corp PFR6X04BL-CG	100 %	Aluminum	Multi-Pair Cat6a	Solid	7.21 mm	0.284 in	Foil	304.8 m	1000 ft	Low Smoke Zero Halogen (LSZH) Riser	23 AWG	8	Black	80 V	Copper Bare	Polyethylene (PE)
Panduit Corp PFR6X04VL-CG	100 %	Aluminum	Multi-Pair Cat6a	Solid	7.21 mm	0.284 in	Foil	304.8 m	1000 ft	Low Smoke Zero Halogen (LSZH) Riser	23 AWG	8	Violet	80 V	Copper Bare	Polyethylene (PE)

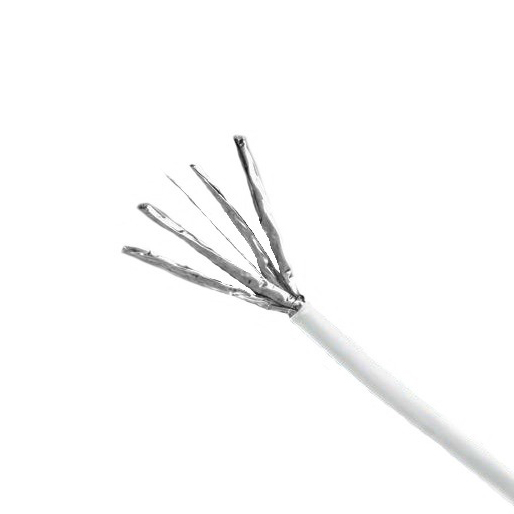

Panduit Corp PFR6X04WH-CG	100 %	Aluminum	Multi-Pair Cat6a	Solid	7.21 mm	0.284 in	Foil	304.8 m	1000 ft	Low Smoke Zero Halogen (LSZH) Riser	23 AWG	8	White	80 V	Copper Bare	Polyethylene (PE)
Panduit Corp PFR6X04IG-CG	100 %	Aluminum	Multi-Pair Cat6a	Solid	7.21 mm	0.284 in	Foil	304.8 m	1000 ft	Low Smoke Zero Halogen (LSZH) Riser	23 AWG	8	Gray	80 V	Copper Bare	Polyethylene (PE)
