H2101 Series
Manufacturer: Harwin Inc.
Beta
⌘K
MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Length - Overall [x] | Length - Overall [x] | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish | Board Thickness | Board Thickness | Mounting Type | Terminal Type | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Contact Material | Terminal Style | Insulation | Length - Above Flange [x] | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

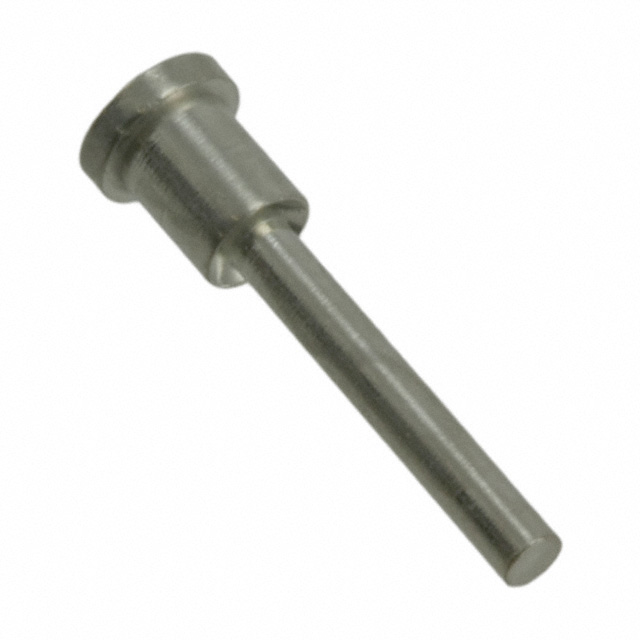

 Harwin Inc. | 0.094 " | 2.39 mm | 1.87 mm | 0.074 " | 0.07 in | 1.78 mm | 0.353 in | 8.97 mm | Swage | 0.333 " | 8.45 mm | Tin | 0.063 in | 1.6 mm | Through Hole | PC Pin | 0.038 in | 0.97 mm | Brass | Single End | Non-Insulated | ||

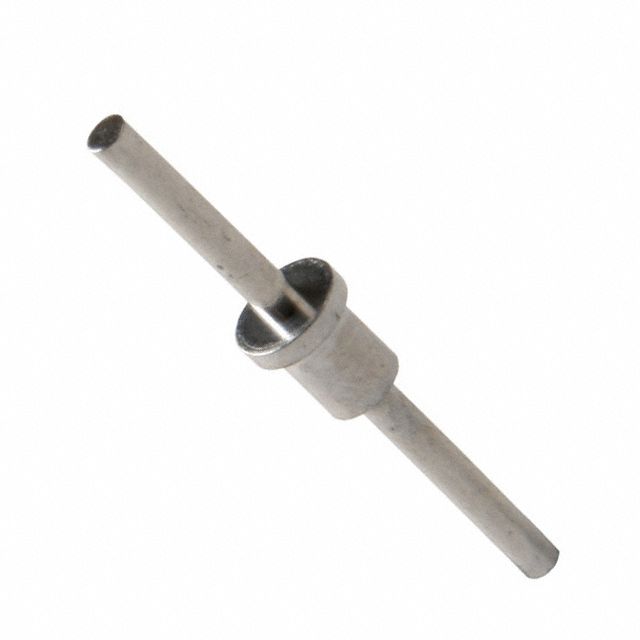

 Harwin Inc. | 0.094 " | 2.39 mm | 1.87 mm | 0.074 " | 0.07 in | 1.78 mm | 0.563 in | 14.3 mm | Swage | 0.324 " | 8.23 mm | Tin | 0.063 in | 1.6 mm | Through Hole | PC Pin | Brass | Double End | Non-Insulated | 5.56 mm | 0.219 in |
