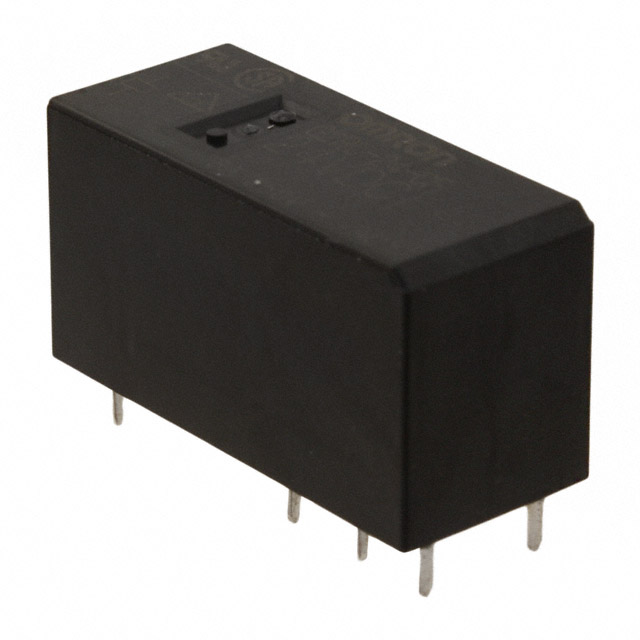

G2RL-24-C Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 8A 24V
| Part | Mounting Type | Coil Insulation | Coil Resistance | Coil Type | Termination Style | Seal Rating | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Contact Rating (Current) | Contact Form | Approval Agency | Relay Type | Coil Current | Release Time | Coil Voltage | Contact Material | Must Operate Voltage | Load - Max Switching | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Through Hole | Class F | 1440 Ohms | Non Latching | PC Pin | Sealed - Fully | 85 °C | -40 °C | 300 VDC 440 VAC | 8 A | DPDT (2 Form C) | CQC CSA UR VDE | General Purpose | 16.7 mA | 5 ms | 24 VDC | Cadmium Free Silver Alloy | 16.8 VDC | 2400 W 3520 VA | 2.4 VDC | 15 ms |
Omron Electronics Inc-EMC Div | Through Hole | Class F | 360 Ohms | Non Latching | PC Pin | Sealed - Fully | 85 °C | -40 °C | 300 VDC 440 VAC | 8 A | DPDT (2 Form C) | CQC CSA UR VDE | General Purpose | 33.3 mA | 5 ms | 12 VDC | Cadmium Free Silver Alloy | 8.4 VDC | 2400 W 3520 VA | 1.2 VDC | 15 ms |
Omron Electronics Inc-EMC Div | Through Hole | Class F | 5.36 kOhms | Non Latching | PC Pin | Sealed - Fully | 85 °C | -40 °C | 300 VDC 440 VAC | 8 A | DPDT (2 Form C) | CQC CSA UR VDE | General Purpose | 9 mA | 5 ms | 48 VDC | Cadmium Free Silver Alloy | 33.6 VDC | 2400 W 3520 VA | 4.8 VDC | 15 ms |
