LEX3212 Series

Manufacturer: Pflitsch

Catalog

CABLE GLAND 43.94-55.88MM 2 1/2"

Part	Color	Material	Thread Length	Thread Length	Ingress Protection	Type	Panel Hole Size	Panel Hole Size	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size
Pflitsch LEX3212VA/316LHTS	Silver	Stainless Steel	40 mm	1.575 in	IP66 IP68	Cable Gland	2.48 in	63 mm	Sealing Ring	1.73 in	43.94 mm	55.88 mm	2.2 in	-60 °C	130 °C

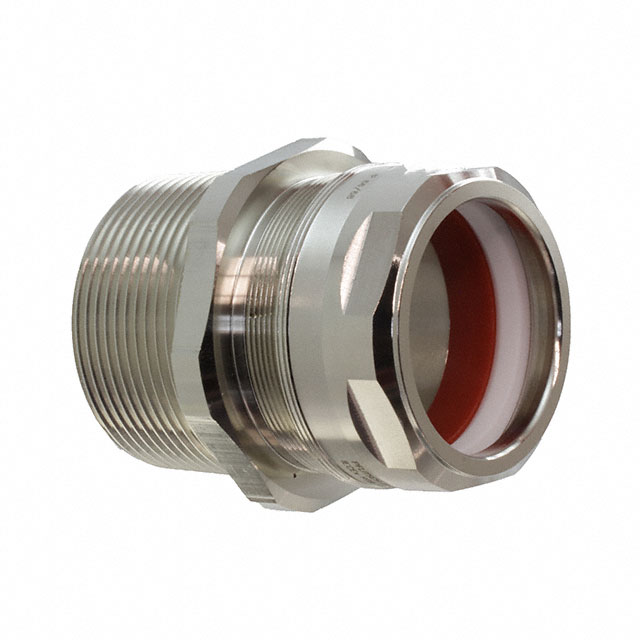

Pflitsch LEX3212MSHTS	Silver	Brass Nickel Plated	40 mm	1.575 in	IP66 IP68	Cable Gland				1.732 in	44 mm	56 mm	2.205 in	-60 °C	130 °C
