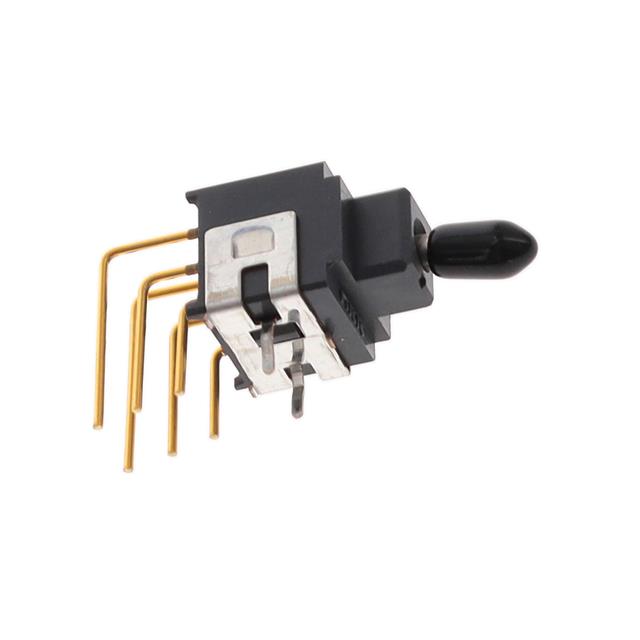

A22JV Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 0.4VA 28V
| Part | Actuator Material | Electrical Life | Current Rating (Amps) | Switch Function | Voltage Rating - DC | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Bushing Thread | Actuator Length [x] | Features | Voltage Rating - AC | Mounting Type | Termination Style | Actuator Type | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Glass Filled Nylon Polyamide (PA) | 50000 Cycles | 0.4 VA | On-On | 28 V | DPDT | 85 °C | -30 ░C | Unthreaded Square | 6.3 mm | Black Cap | 28 V | Right Angle Through Hole Vertical | PC Pin | Standard Round with Cap | Non-Illuminated |
