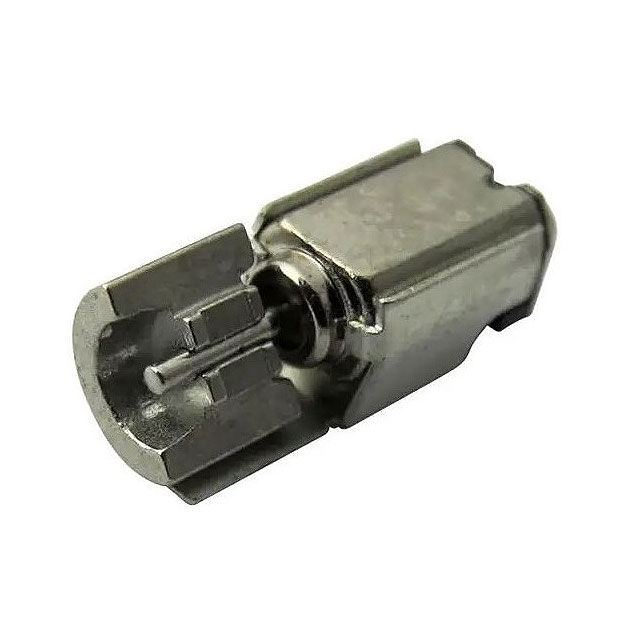

Z43FC1B5640007 Series
Manufacturer: Vybronics Inc
Beta
⌘K
VIBRATION ERM MTR 10K RPM 0.65G
| Part | Function | Voltage - Rated | Type | RPM | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vybronics Inc | Vibration ERM Vibration ERM (Haptic) | 3 VDC | DC Motor | 10000 RPM | 5.5 mm | 0.217 " | -30 ░C | 70 °C | J Lead | 0.177 in | 4.5 mm | 0.169 " | 4.3 mm |
