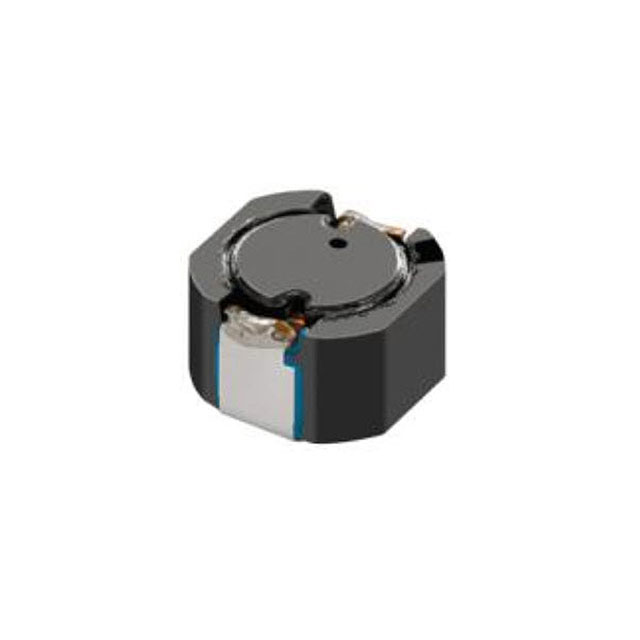

B1135AS Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND 22UH 2.3A 84 MOHM SMD
| Part | Mounting Type | DC Resistance (DCR) [Max] | Material - Core | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Tolerance | Type | Shielding | Inductance Frequency - Test | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Saturation (Isat) | Inductance | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | Surface Mount | 84 mOhm | Ferrite | 2.3 A | 0.197 in | 5 mm | Nonstandard | 20 % | Drum Core Wirewound | Shielded | 100 kHz | 0.327 " | 0.331 in | 8.4 mm | 8.3 mm | 1.7 A | 22 µH | 2-SMD | 85 °C | -40 C | |
Murata Electronics | Surface Mount | Ferrite | 1.3 A | 0.197 in | 5 mm | Nonstandard | 20 % | Drum Core Wirewound | Shielded | 100 kHz | 0.327 " | 0.331 in | 8.4 mm | 8.3 mm | 970 mA | 68 µH | 2-SMD | 85 °C | -40 C | 235 mOhm | |
Murata Electronics | Surface Mount | 21 mOhm | Ferrite | 5.1 A | 0.197 in | 5 mm | Nonstandard | 30 % | Drum Core Wirewound | Shielded | 100 kHz | 0.327 " | 0.331 in | 8.4 mm | 8.3 mm | 3.7 A | 4.7 ÁH | 2-SMD | 85 °C | -40 C | |
Murata Electronics | Surface Mount | 64 mOhm | Ferrite | 2.5 A | 0.197 in | 5 mm | Nonstandard | 20 % | Drum Core Wirewound | Shielded | 100 kHz | 0.327 " | 0.331 in | 8.4 mm | 8.3 mm | 2 A | 15 µH | 2-SMD | 85 °C | -40 C | |
Murata Electronics | Surface Mount | 13 mOhm | Ferrite | 7.3 A | 0.197 in | 5 mm | Nonstandard | 30 % | Drum Core Wirewound | Shielded | 100 kHz | 0.327 " | 0.331 in | 8.4 mm | 8.3 mm | 5.5 A | 2.2 µH | 2-SMD | 85 °C | -40 C | |
Murata Electronics | Surface Mount | Ferrite | 4 A | 0.197 in | 5 mm | Nonstandard | 30 % | Drum Core Wirewound | Shielded | 100 kHz | 0.327 " | 0.331 in | 8.4 mm | 8.3 mm | 3.1 A | 6.8 µH | 2-SMD | 85 °C | -40 C | 29 mOhm | |
Murata Electronics | Surface Mount | Ferrite | 1.9 A | 0.197 in | 5 mm | Nonstandard | 20 % | Drum Core Wirewound | Shielded | 100 kHz | 0.327 " | 0.331 in | 8.4 mm | 8.3 mm | 1.4 A | 33 µH | 2-SMD | 85 °C | -40 C | 110 mOhm | |
Murata Electronics | Surface Mount | Ferrite | 1.6 A | 0.197 in | 5 mm | Nonstandard | 20 % | Drum Core Wirewound | Shielded | 100 kHz | 0.327 " | 0.331 in | 8.4 mm | 8.3 mm | 1.2 A | 47 µH | 2-SMD | 85 °C | -40 C | 150 mOhm | |
Murata Electronics | Surface Mount | 11 mOhm | Ferrite | 7.6 A | 0.197 in | 5 mm | Nonstandard | 30 % | Drum Core Wirewound | Shielded | 100 kHz | 0.327 " | 0.331 in | 8.4 mm | 8.3 mm | 6.3 A | 1.5 µH | 2-SMD | 85 °C | -40 C | |
Murata Electronics | Surface Mount | 17 mOhm | Ferrite | 5.5 Amps | 0.197 in | 5 mm | Nonstandard | 30 % | Drum Core Wirewound | Shielded | 100 kHz | 0.327 " | 0.331 in | 8.4 mm | 8.3 mm | 4.2 A | 3.6 µH | 2-SMD | 85 °C | -40 C |
