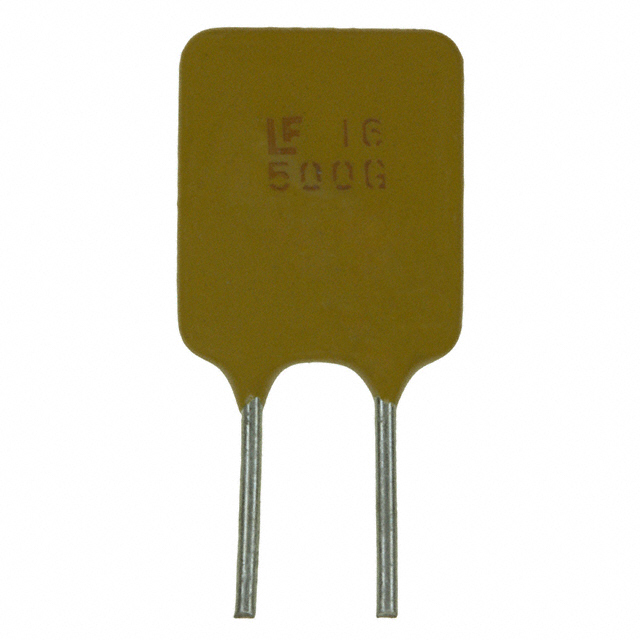

16R500G Series

PTC 16V POLYFUSE RADIAL LEADS 5A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

PTC 16V POLYFUSE RADIAL LEADS 5A

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Type	Current - Hold (Ih) (Max) [Max]	Voltage - Max [Max]	Resistance - Initial (Ri) (Min) [Min]	Resistance - Post Trip (R1) (Max) [Max]	Time to Trip	Mounting Type	Approval Agency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Trip (It)	Current - Max [Max]
Littelfuse/Commercial Vehicle Products 16R500GU	14.3 mm	0.563 in	Polymeric	5 A	16 V	15 mOhms	34 mOhms	2 s	Through Hole	cURus TUV	Disc Radial	85 °C	-40 °C	5.1 mm	0.201 in	0.409 in	3 mm	0.118 in	10.4 mm	8.5 A	100 A

Catalog

PTC 16V POLYFUSE RADIAL LEADS 5A

Key Features

• 100 A short circuit rating

• 16 V operating voltage

• Fast time–to–trip

• Meets all USB protection requirements

• RoHS compliant, Lead- Free and Halogen-Free

Description

Littelfuse 16R Series Radial Leaded PTCs are designed to provide resettable overcurrent protection serving a wide range of electronics applications. With maximum 16 volts and maximum 100-ampere short circuit rating, they offer an ideal solution for USB protection.
