TCH-86 Series

Catalog

BUZZER PIEZO 33.02MM PNL MNT

Part	Ingress Protection	Current - Supply [Max] [x]	Current - Supply [Min] [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Technology	Operating Mode	Driver Circuitry	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Range [Min]	Voltage Range [Max]	Input Type	Sound Pressure Level (SPL)	Termination	Termination	Termination	Port Location	Mounting Type	Approval Agency	Frequency
Floyd Bell Inc TCH-86-530-Q(M)	IP68 - Dust Tight Waterproof	40 mA	4 mA	29.97 mm	1.18 in	Piezo	Chime	Indicator Internally Driven	1.3 in	33.02 mm	5 VDC	30 V	DC	90 dB	Quick Connect Tab	0.25 "	6.35 mm	Top	Panel Mount	UL UR	2.9 kHz
Floyd Bell Inc TCH-86-530-W(F)	IP68 - Dust Tight Waterproof	40 mA	4 mA	29.97 mm	1.18 in	Piezo	Chime	Indicator Internally Driven	1.3 in	33.02 mm	5 VDC	30 V	DC	90 dB	Wire Leads			Top	Panel Mount	UL UR	2.9 kHz
Floyd Bell Inc TCH-86-530-S(F)	IP68 - Dust Tight Waterproof	40 mA	4 mA	29.97 mm	1.18 in	Piezo	Chime	Indicator Internally Driven	1.3 in	33.02 mm	5 VDC	30 V	DC	90 dB	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	Top	Panel Mount	UL UR	2.9 kHz

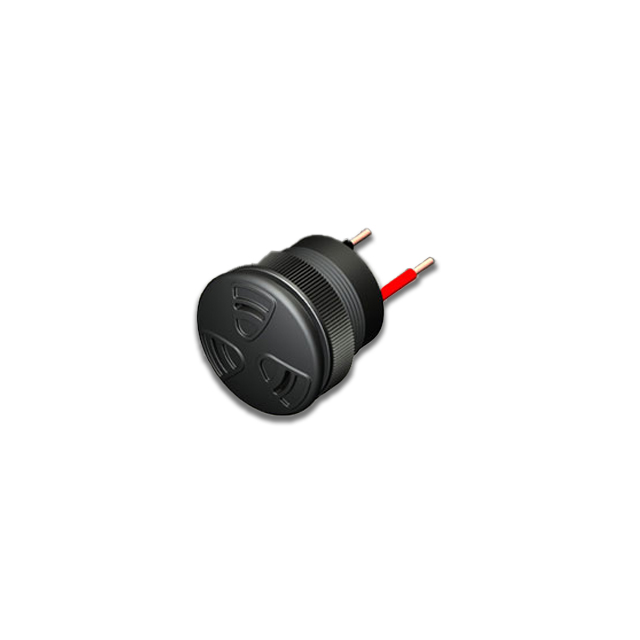

Floyd Bell Inc TCH-86-530-W(M)	IP68 - Dust Tight Waterproof	40 mA	4 mA	29.97 mm	1.18 in	Piezo	Chime	Indicator Internally Driven	1.3 in	33.02 mm	5 VDC	30 V	DC	90 dB	Wire Leads			Top	Panel Mount	UL UR	2.9 kHz

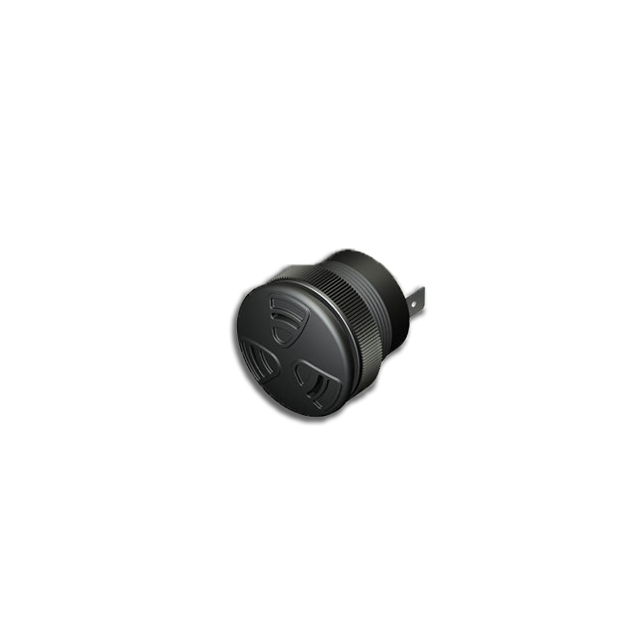

Floyd Bell Inc TCH-86-530-Q(F)	IP68 - Dust Tight Waterproof	40 mA	4 mA	29.97 mm	1.18 in	Piezo	Chime	Indicator Internally Driven	1.3 in	33.02 mm	5 VDC	30 V	DC	90 dB	Quick Connect Tab	0.25 "	6.35 mm	Top	Panel Mount	UL UR	2.9 kHz

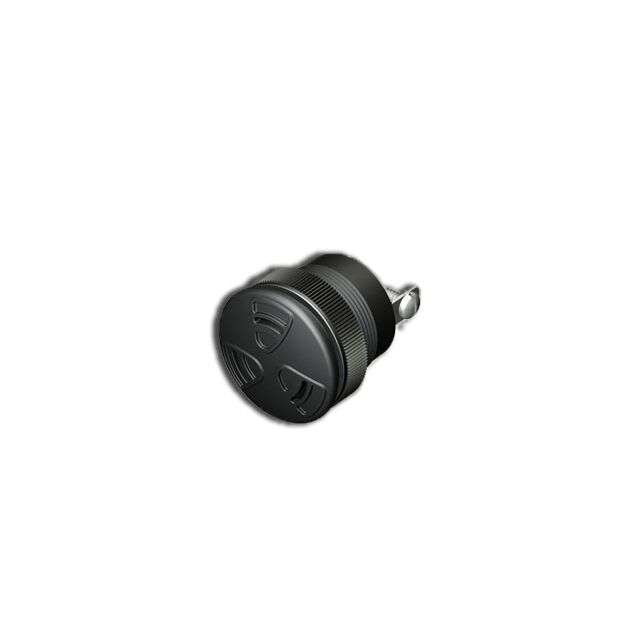

Floyd Bell Inc TCH-86-530-S(M)	IP68 - Dust Tight Waterproof	40 mA	4 mA	29.97 mm	1.18 in	Piezo	Chime	Indicator Internally Driven	1.3 in	33.02 mm	5 VDC	30 V	DC	90 dB	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	Top	Panel Mount	UL UR	2.9 kHz
