SFW6S Series

Catalog

CONN FPC VERT 6POS 1MM SMD

Part	Actuator Color	Housing Color	Mounting Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector/Contact Type	Actuator Material	Locking Feature	Number of Positions	Material Flammability Rating	Flat Flex Type	Contact Finish	Housing Material	Height Above Board [z]	Height Above Board [z]	Voltage Rating	FFC, FCB Thickness	Termination	Cable End Type	Mating Cycles	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Features
Amphenol ICC (FCI) SFW6S-2STAE9LF	Black	Brown	Surface Mount	1 mm	0.039 in	-55 C	85 °C	Phosphor Bronze	Contacts Vertical - 1 Sided	Thermoplastic Glass Filled	Slide Lock	6	UL94 V-0	FPC	Gold	Glass Filled Thermoplastic	0.209 in	5.3 mm	100 V	0.3 mm	Solder	Tapered
Amphenol ICC (FCI) SFW6S-2STME1	Black	Brown	Surface Mount	1 mm	0.039 in	-55 C	85 °C	Phosphor Bronze	Contacts Vertical - 1 Sided	Thermoplastic Glass Filled	Slide Lock	6	UL94 V-0	FFC FPC	Tin Alloy	Glass Filled Thermoplastic	0.209 in	5.3 mm	100 V		Solder	Straight Tapered	20	0.3 mm	0.33 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW6S-2STE9LF	Black	Brown	Surface Mount	1 mm	0.039 in	-55 C	85 °C	Phosphor Bronze	Contacts Vertical - 1 Sided	Thermoplastic Glass Filled	Slide Lock	6	UL94 V-0	FFC FPC	Tin	Glass Filled Thermoplastic	0.209 in	5.3 mm	100 V		Solder	Straight Tapered	20	0.3 mm	0.33 mm

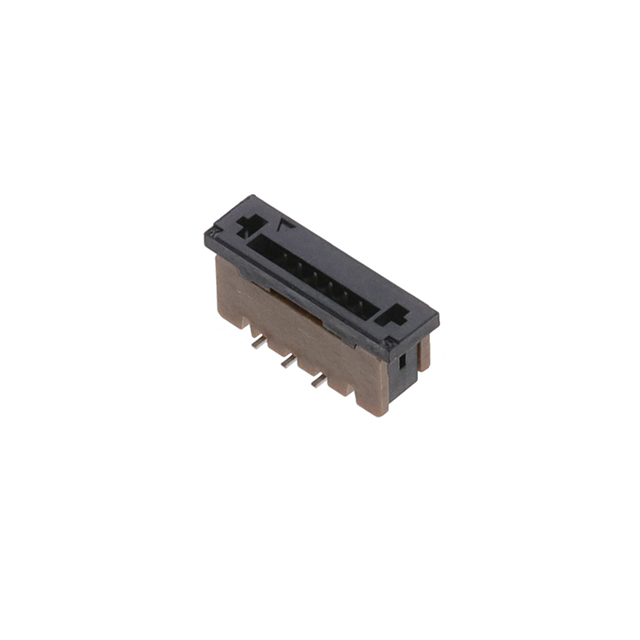

Amphenol ICC (FCI) SFW6S-2STE1LF		Brown	Surface Mount	1 mm	0.039 in	-55 C	105 ░C	Phosphor Bronze	Contacts Vertical - 1 Sided	Thermoplastic Glass Filled	Slide Lock	6	UL94 V-0	FFC FPC	Tin	Glass Filled Thermoplastic	0.209 in	5.3 mm	100 V	0.3 mm	Kinked Pin	Straight or Tapered	20
Amphenol ICC (FCI) SFW6S-2STAE1LF		Brown	Surface Mount	1 mm	0.039 in	-55 C	85 °C	Phosphor Bronze	Contacts Vertical - 1 Sided	Thermoplastic Glass Filled		6	UL94 V-0	FPC	Gold	Glass Filled Thermoplastic	0.209 in	5.3 mm	100 V	0.33 mm	Solder		20
Amphenol ICC (FCI) SFW6S-2STAE1LF			Surface Mount	1 mm	0.039 in	-55 C	85 °C	Phosphor Bronze	Contacts Vertical - 1 Sided	Thermoplastic Glass Filled		6	UL94 V-0	FPC	Gold	Glass Filled Thermoplastic	0.209 in	5.3 mm	100 V	0.33 mm	Solder

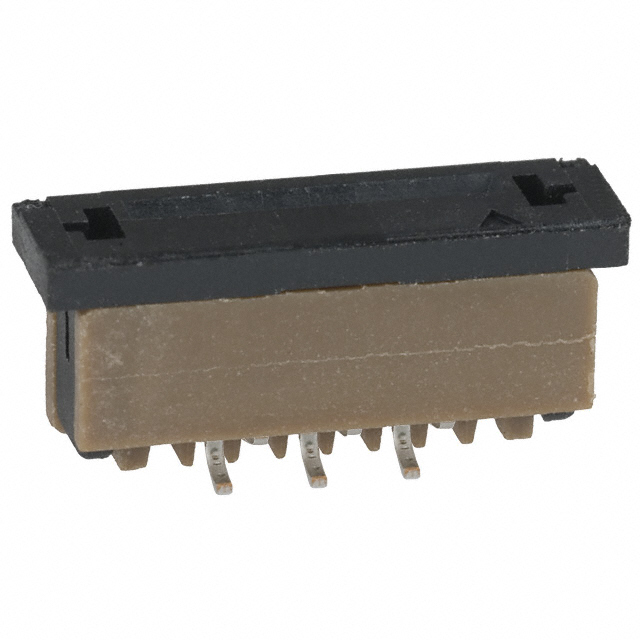

Amphenol ICC (FCI) SFW6S-2STE1	Black	Brown	Surface Mount	1 mm	0.039 in	-55 C	85 °C	Phosphor Bronze	Contacts Vertical - 1 Sided	Thermoplastic Glass Filled	Slide Lock	6	UL94 V-0	FFC FPC	Tin Alloy	Glass Filled Thermoplastic	0.209 in	5.3 mm	100 V		Solder	Straight Tapered	20	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW6S-6STME1LF		Brown	Surface Mount	1 mm	0.039 in	-55 C	85 °C	Phosphor Bronze	Contacts Vertical - 1 Sided	Thermoplastic Glass Filled		6	UL94 V-0	CIC	Tin	Glass Filled Thermoplastic	0.209 in	5.3 mm	100 V	0.33 mm	Solder		10			Position 8 Molded Closed Zero Insertion Force (ZIF)
