717-038 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 38POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Material | Card Type | Read Out | Number of Positions/Bay/Row [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Rows | Pitch | Pitch | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Contact Finish | Gender | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Termination Rows [custom] | Number of Positions/Bay/Row | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

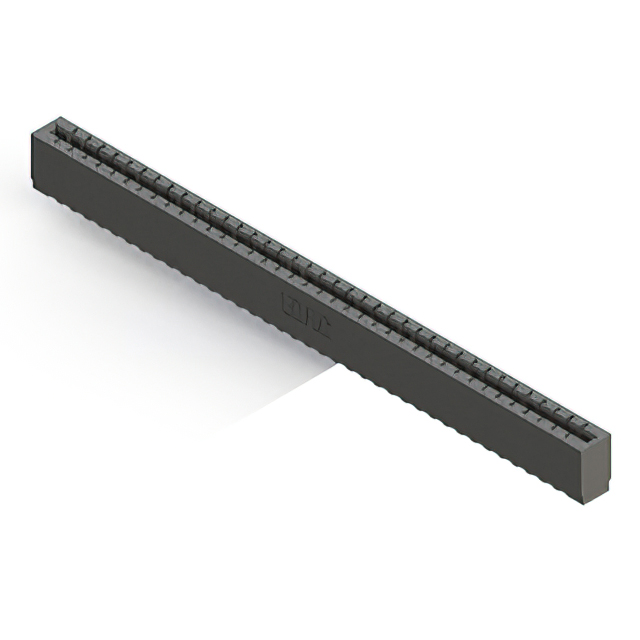

 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Non Specified - Single Edge | Single | 38 | Press-Fit | -40 C | 105 ░C | Black | 1 | 3.96 mm | 0.156 in | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Female | 38 | 30 Áin | 0.76 Ám | |||

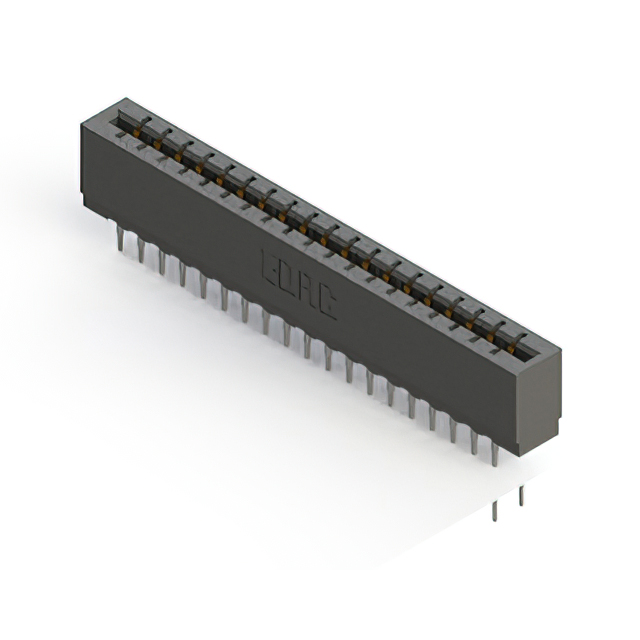

 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Dual | Press-Fit Wire Wrap | -40 C | 105 ░C | Black | 3.96 mm | 0.156 in | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Female | 38 | 30 Áin | 0.76 Ám | 2 | 19 | 2 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Non Specified - Single Edge | Single | 38 | Press-Fit Wire Wrap | -40 C | 105 ░C | Black | 1 | 3.96 mm | 0.156 in | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Female | 38 | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Dual | Press-Fit | -40 C | 105 ░C | Black | 3.96 mm | 0.156 in | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Female | 38 | 30 Áin | 0.76 Ám | 2 | 19 | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Dual | Press-Fit | -40 C | 105 ░C | Black | 3.96 mm | 0.156 in | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Female | 38 | 30 Áin | 0.76 Ám | 2 | 19 | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Dual | Press-Fit | -40 C | 105 ░C | Black | 3.96 mm | 0.156 in | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Female | 38 | 30 Áin | 0.76 Ám | 2 | 19 | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Dual | Press-Fit | -40 C | 105 ░C | Black | 3.96 mm | 0.156 in | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever Make Before Break | Gold | Female | 38 | 30 Áin | 0.76 Ám | 2 | 19 | 2 |
