846-086 Series
Manufacturer: EDAC Inc.
Beta
⌘K

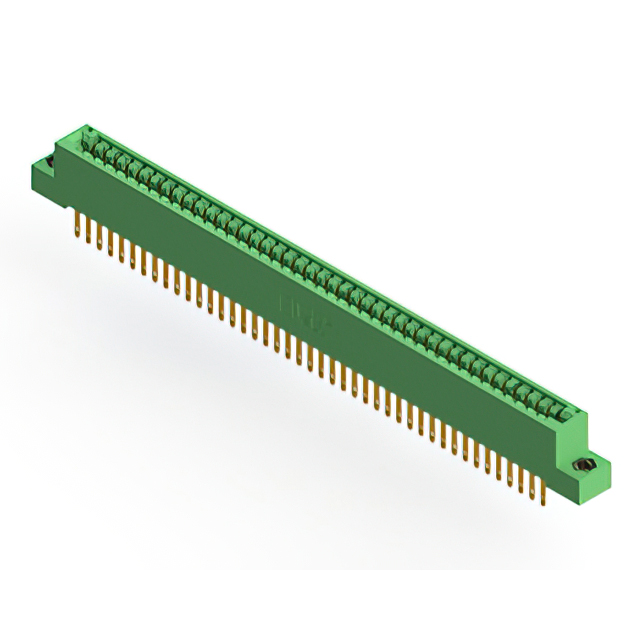

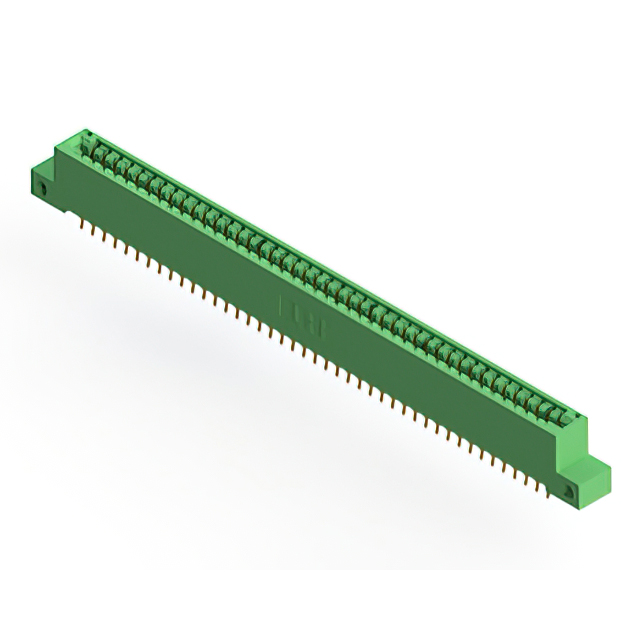

CONN EDGE DUAL FMALE 86POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Number of Positions | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Termination | Pitch | Pitch | Mounting Type | Read Out | Color | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Card Type | Number of Rows [custom] | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 86 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | Through Hole | Dual | Green | Female | 125 °C | -40 C | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Gold | 0.25 Ám | 10 Áin | 43 | Non Specified - Dual Edge | 2 | Copper Alloy | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 86 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | 3.18 mm | 0.125 in | Through Hole | Dual | Green | Female | 125 °C | -40 C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Gold | 0.25 Ám | 10 Áin | 43 | Non Specified - Dual Edge | 2 | Copper Alloy | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 86 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | Through Hole | Dual | Green | Female | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Gold | 0.25 Ám | 10 Áin | 43 | Non Specified - Dual Edge | 2 | Copper Alloy | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 86 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | 3.18 mm | 0.125 in | Through Hole | Dual | Green | Female | 125 °C | -40 C | Flush Mount M3 Threaded Insert Top Opening | Gold | 0.25 Ám | 10 Áin | 43 | Non Specified - Dual Edge | 2 | Copper Alloy | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 86 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | Board Edge Straddle Mount | Dual | Green | Female | 125 °C | -40 C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Gold | 0.25 Ám | 10 Áin | 43 | Non Specified - Dual Edge | 2 | Copper Alloy | Card Extender |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 86 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | Right Angle Through Hole | Dual | Green | Female | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 0.25 Ám | 10 Áin | 43 | Non Specified - Dual Edge | 2 | Copper Alloy | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 86 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | Right Angle Through Hole | Dual | Green | Female | 125 °C | -40 C | 0.156 " | 3.96 mm | Gold | 0.25 Ám | 10 Áin | 43 | Non Specified - Dual Edge | 2 | Copper Alloy | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 86 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | Board Edge Straddle Mount | Dual | Green | Female | 125 °C | -40 C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Gold | 0.25 Ám | 10 Áin | 43 | Non Specified - Dual Edge | 2 | Copper Alloy | Card Extender |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 86 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | Board Edge Straddle Mount | Dual | Green | Female | 125 °C | -40 C | 0.128 " | 3.25 mm | Gold | 0.25 Ám | 10 Áin | 43 | Non Specified - Dual Edge | 2 | Copper Alloy | Card Extender | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 86 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | Through Hole | Dual | Green | Female | 125 °C | -40 C | M3 Threaded Insert Top Mount Opening | Gold | 0.25 Ám | 10 Áin | 43 | Non Specified - Dual Edge | 2 | Copper Alloy |
