55442 Series

Catalog

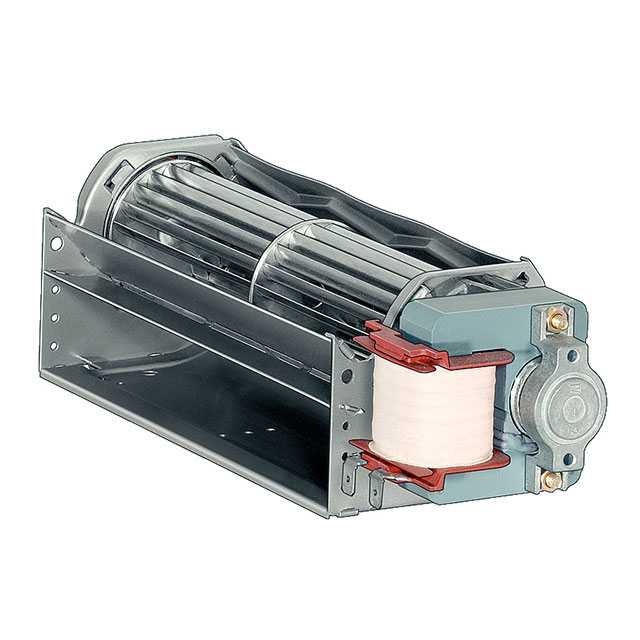

FAN BLOWER CF 300X79MM 115VAC

Part	Material - Frame	Material - Blade [custom]	Power (Watts)	Air Flow	Air Flow	Fan Type	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Width [x]	Static Pressure	Static Pressure	RPM	Weight [custom]	Weight [custom]	Size / Dimension [y]	Size / Dimension	Noise	Weight	Weight
ebm-papst Inc. 55442.70170	Steel	Aluminum	40 W	3.72 m³/min	133 CFM	Blower Cross Flow	115 VAC	45 mm	391 mm	71 mm	Sleeve	60 °C	0 °C	0 °C	60 °C	Terminal Block	79 mm	0.353 in H2O	88 Pa	2100 RPM	3.2 lbs	1.5 kg
ebm-papst Inc. 55442.40491	Steel	Aluminum	29 W	2.1 m³/min	75 CFM	Blower Cross Flow	115 VAC	45 mm	265 mm		Sleeve					Terminal Block	79 mm						71 mm	Rectangular	50 dB(A)
ebm-papst Inc. 55442.60082	Steel	Aluminum	41 W	3 m³/min	107 CFM	Blower Cross Flow	115 VAC	45 mm	331 mm		Sleeve					Terminal Block	79 mm	0.333 in H2O	83 Pa	2100 RPM			71 mm			1.1 kg	2.4 lbs
ebm-papst Inc. 55442.75051	Steel	Aluminum	40 W	3.72 m³/min	133 CFM	Blower Cross Flow	115 VAC	45 mm	391 mm	71 mm	Sleeve	60 °C	0 °C	0 °C	60 °C	Terminal Block	79 mm	0.353 in H2O	88 Pa	2100 RPM	3.2 lbs	1.5 kg
