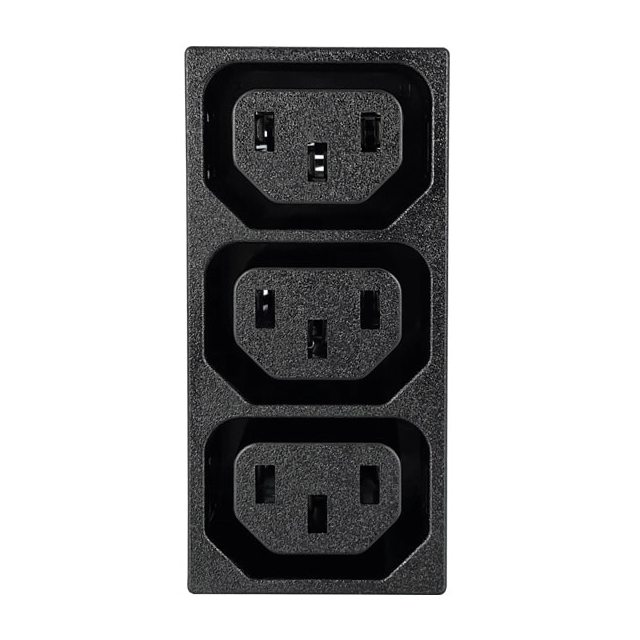

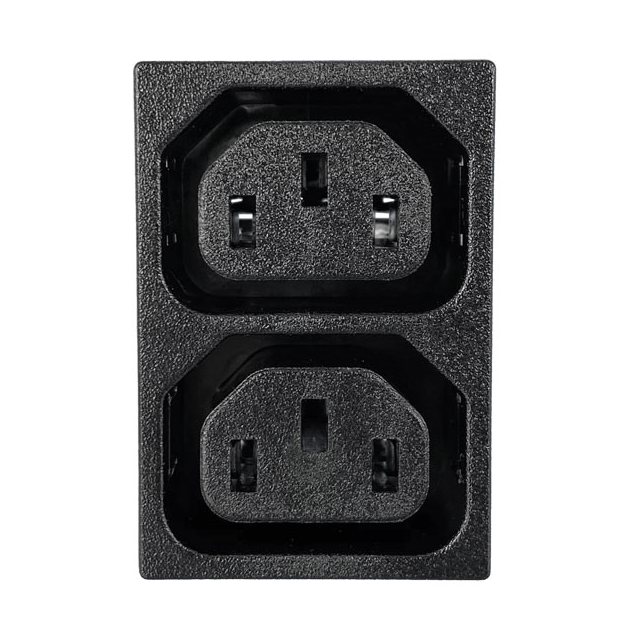

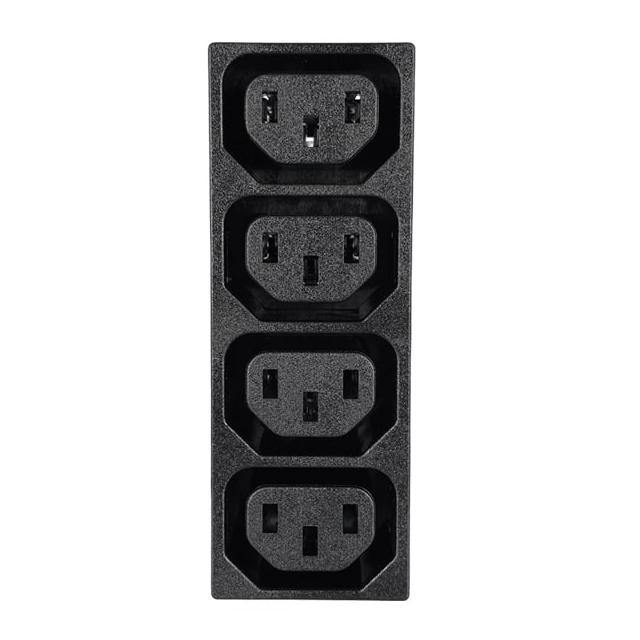

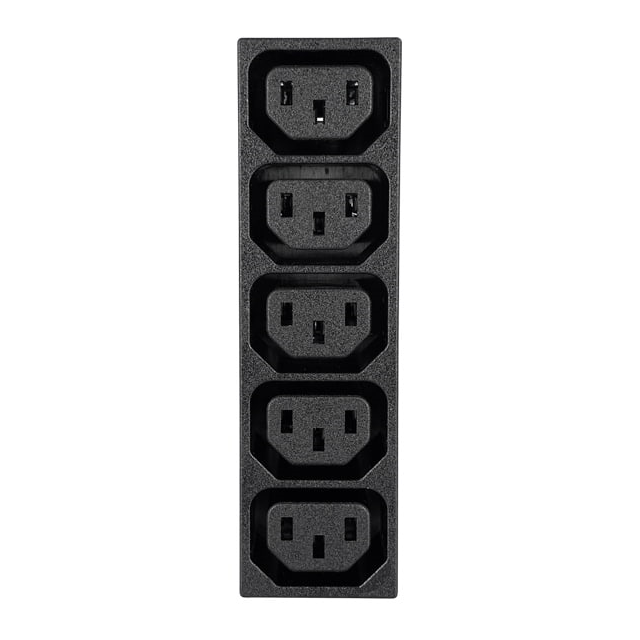

742W-15 Series
Manufacturer: Qualtek
Beta
⌘K
PWR ENT RCPT IEC320-2-2F PNL QC
| Part | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination | Termination | Termination | Number of Positions | Voltage Rating - Appliance Inlet | Panel Thickness | Panel Thickness | Connector Style | Mounting Type | Filter Type | Connector Type | Approval Agency | Current Rating - Appliance Inlet | Accomodates a Fuse | Number of Positions | Number of Positions [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 48.3 mm | 32.5 mm | Quick Connect | 2.8 mm | 0.11 " | 3 | 250 VAC | 1.5 mm | 0.059 in | IEC 320-2-2/F | Panel Mount Snap-In | Unfiltered - Commercial | Receptacle Female Sockets | CSA TUV UL | 10 A | |||
 Qualtek | 120 mm | 32.5 mm | Quick Connect | 2.8 mm | 0.11 " | 3 | 250 VAC | 1.5 mm | 0.059 in | IEC 320-2-2/F | Panel Mount Snap-In | Unfiltered - Commercial | Receptacle Female Sockets | CCC cUL TUV UL | 10 A | 5 | ||
 Qualtek | Quick Connect | 2.8 mm | 0.11 " | 3 | 250 VAC | 1.5 mm | 0.059 in | IEC 320-2-2/F | Panel Mount Snap-In | Unfiltered - Commercial | Receptacle Female Sockets | CSA TUV UL | 10 A | |||||
 Qualtek | 72 mm | 32.5 mm | Quick Connect | 2.8 mm | 0.11 " | 250 VAC | 1.5 mm | 0.059 in | IEC 320-2-2/F | Panel Mount Snap-In | Unfiltered - Commercial | Receptacle Female Sockets | CSA TUV UL | 10 A | 3 |
