09KR102 Series
Manufacturer: Rosenberger
Beta
⌘K

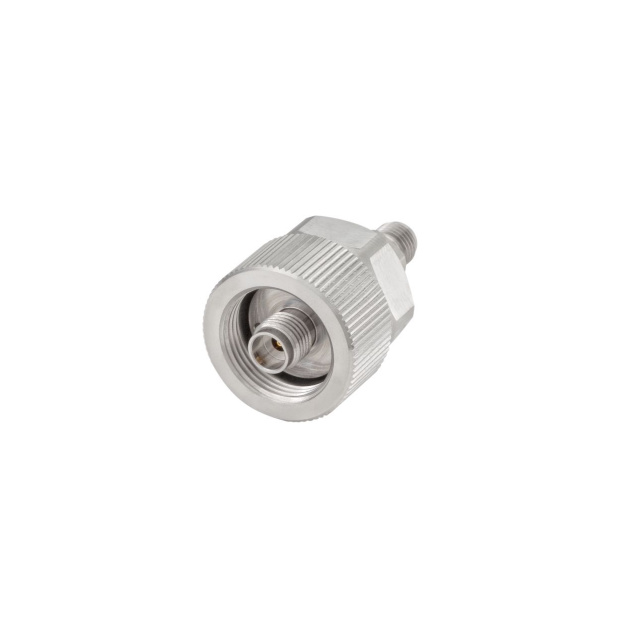

COAX ADAPT RPC-2.92 TO RPC-2.92
| Part | Body Material | Dielectric Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Center Contact Material | Style | Frequency - Max [Max] | Adapter Series | Convert From (Adapter End) | Convert From (Adapter End) | Impedance | Center Contact Plating | Conversion Type | Mounting Type | Adapter Type | Convert To (Adapter End) | Adapter Series [Max] | Adapter Series [Min] | Center Gender | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Stainless Steel | Polyetheretherketone (PEEK) | 500 | 85 °C | -40 C | 0.32 dB | Beryllium Copper | Straight | 40 GHz | RPC-2.92 to RPC-2.92 | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | 50 Ohms | Gold | Between Series | Free Hanging (In-Line) | Plug to Jack | 2.92mm (OS-2.9) Plug Male Pin | ||||
 Rosenberger | Stainless Steel | Polyetheretherketone (PEEK) | 500 | 85 °C | -40 C | 0.32 dB | Beryllium Copper | Straight | 40 GHz | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | 50 Ohms | Gold | Between Series | Free Hanging (In-Line) | Jack to Jack | Jack Female Socket | RPC-2.92 | RPC-2.40 | Female to Female | 2.92 mm |
