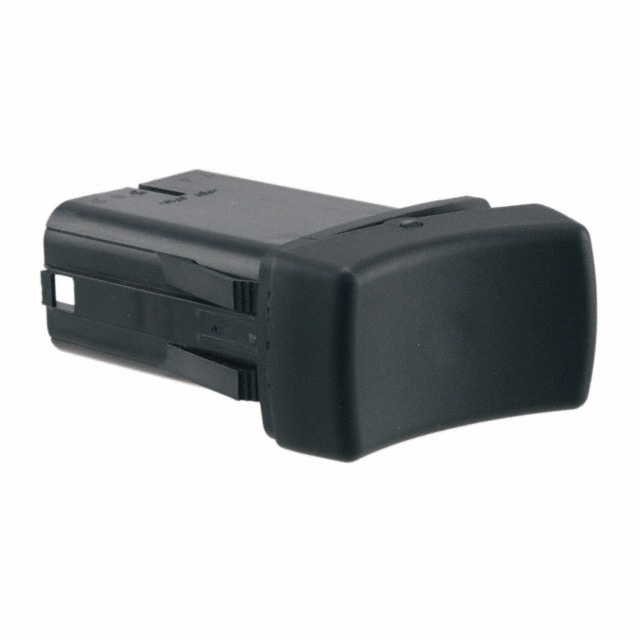

W Series
Manufacturer: Carling Technologies
Beta
⌘K
ROCKER SWITCHES ON NONE OFF FULLY SEALED ROCKER
| Part | Mounting Type | Color - Actuator/Cap | Actuator Marking | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating (Amps) | Termination Style | Features | Ingress Protection | Actuator Type | Switch Function | Circuit | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | Panel Mount Snap-In | Black | No Marking | 36.83 mm | 21.08 mm | 10 A | Quick Connect - 0.110" (2.8mm) | Sealed - Fully | IP68 - Dust Tight Waterproof | Concave (Curved) | On-Off | SPST | 12 V | 85 °C | -40 C | ||
 Carling Technologies | Panel Mount Snap-In | Black | No Marking | 36.83 mm | 21.08 mm | 10 A | Quick Connect - 0.110" (2.8mm) | Sealed - Fully | IP68 - Dust Tight Waterproof | Concave (Curved) | On-On | SPDT | 12 V | 85 °C | -40 C | 100000 Cycles | 100000 Cycles |
