79260 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

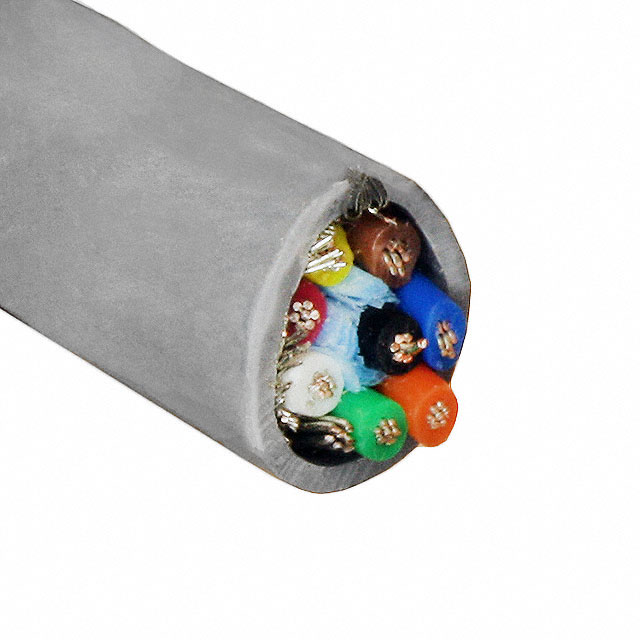

CABLE 8COND 26AWG SHLD
| Part | Shield Material | Shield Coverage | Length | Length | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors [custom] | Jacket (Insulation) Material | Shield Type | Features | Jacket Color | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Ratings | Conductor Material | Conductor Strand [x] | Conductor Strand [x] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 304.8 m | 1000 ft | 600 V | 0.035 in | 0.889 mm | 8 | Polyphenylene Ether Modified (mPPE) | Braid Foil | Biological Compatibility | Slate | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | 26 AWG | ISO 10993 | Copper Tinned | 34 AWG | 7 | Multi-Conductor | 0.248 " | 6.3 mm |
