8778 Series
Manufacturer: Belden Inc.
Beta
⌘K

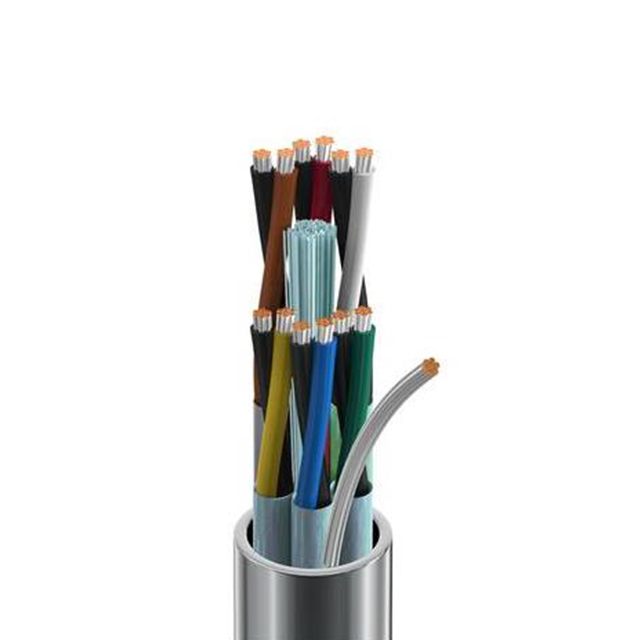

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 6 PAIR, 22 AWG, 0.325 MM², 500 FT, 152.4 M
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Cable Type | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Shield Type | Wire Gauge | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Tinned | 80 °C | -20 ░C | 152.4 m | 500 ft | Polypropylene (PP) | 0.352 " | 8.94 mm | 12 | Multi-Pair | UL Style 2919 | 0.864 mm | 0.034 in | Audio Control Instrumentation | Foil | 22 AWG | Chrome | 30 AWG | 7 | Drain Wire | ||
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Tinned | 80 °C | -20 ░C | Polypropylene (PP) | 0.352 " | 8.94 mm | 12 | Multi-Pair | 0.864 mm | 0.034 in | Foil | 22 AWG | Chrome | 30 AWG | 7 | Drain Wire | 100 ft | 30.5 m | ||||
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Tinned | 80 °C | -20 ░C | 304.8 m | 1000 ft | Polypropylene (PP) | 0.352 " | 8.94 mm | 12 | Multi-Pair | UL Style 2919 | 0.864 mm | 0.034 in | Audio Control Instrumentation | Foil | 22 AWG | Chrome | 30 AWG | 7 | Drain Wire | ||
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Tinned | 80 °C | -20 ░C | 76.2 m | 250 ft | Polypropylene (PP) | 0.352 " | 8.94 mm | 12 | Multi-Pair | UL Style 2919 | 0.864 mm | 0.034 in | Audio Control Instrumentation | Foil | 22 AWG | Chrome | 30 AWG | 7 | Drain Wire |
