TL6200 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Mechanical Life	Switch Travel	Features	Circuit	Switch Function	Actuator Type	Operating Force	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Ingress Protection	Contact Rating @ Voltage	Mounting Type	Actuator Orientation	Illumination	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical	Switch Type	Shape	Color	For Use With/Related Products	Size [z]	Size [diameter]

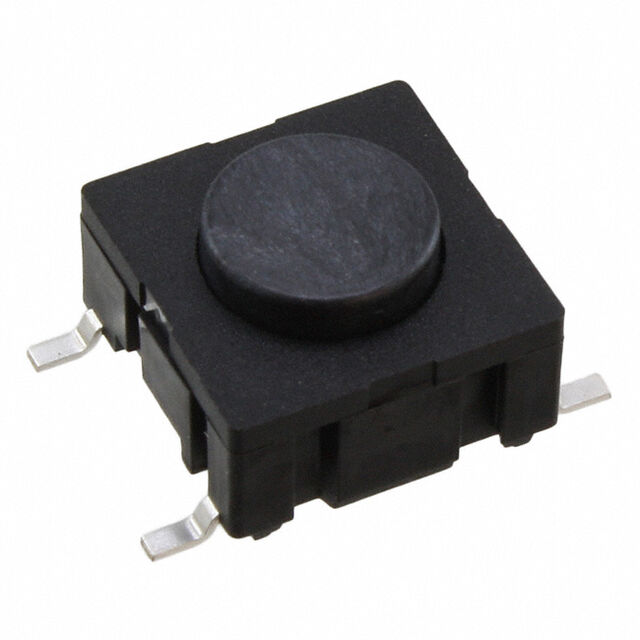

E-Switch TL6200ABF300QG	10000000 Cycles	1 mm	Black Cap	SPST-NO	Off-Mom	Round Button	300 gf	6.4 mm	85 °C	-40 C	Gull Wing	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	Surface Mount	Top Actuated	Non-Illuminated	10.1 mm	10.1 mm

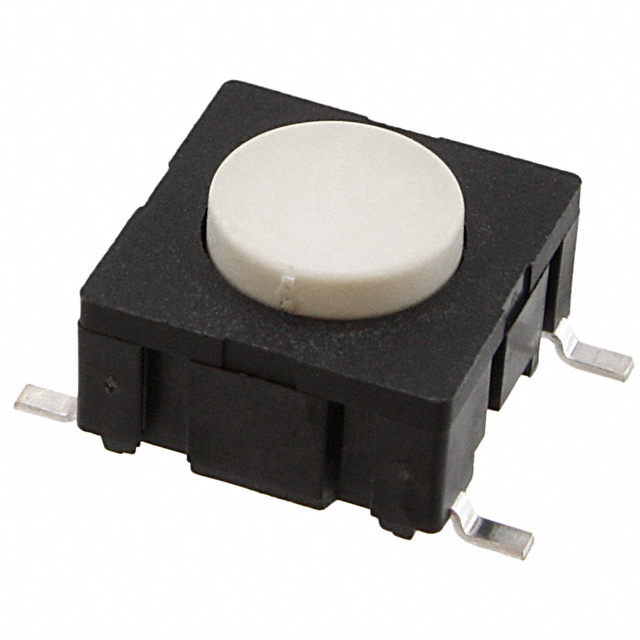

E-Switch TL6200AWF300QG	10000000 Cycles	1 mm	White Cap	SPST-NO	Off-Mom	Round Button	300 gf	6.4 mm	85 °C	-40 C	Gull Wing	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	Surface Mount	Top Actuated	Non-Illuminated	10.1 mm	10.1 mm
E-Switch TL6200AWF300QP			White Cap	SPST-NO	Off-Mom	Round Button	300 gf	6.4 mm	85 °C	-40 C	PC Pin	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	Through Hole	Top Actuated	Non-Illuminated	10.1 mm	10.1 mm

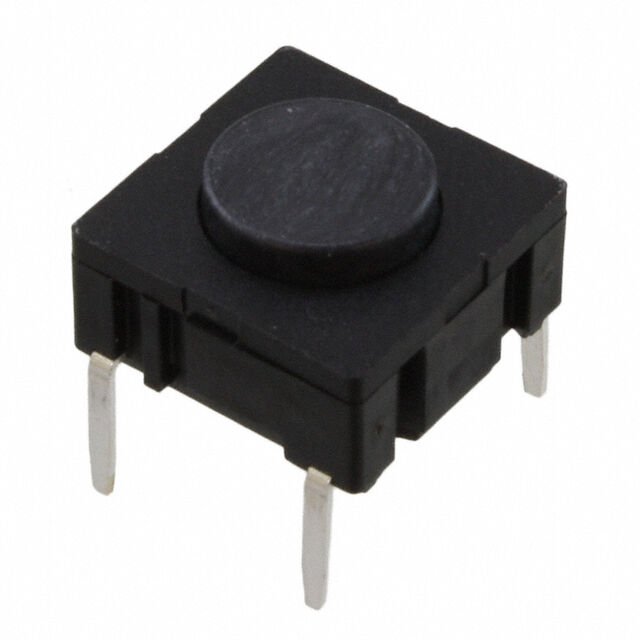

E-Switch TL6200ABF300QP	10000000 Cycles	1 mm	Black Cap	SPST-NO	Off-Mom	Round Button	300 gf	6.4 mm	85 °C	-40 C	PC Pin	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	Through Hole	Top Actuated	Non-Illuminated	10.1 mm	10.1 mm
E-Switch TL6200BBF300QP	10000000 Cycles	1 mm		SPST-NO	Off-Mom	Round Button	300 gf		85 °C	-40 C	PC Pin	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	Through Hole	Top Actuated	Non-Illuminated	10.1 mm	10.1 mm	8 mm

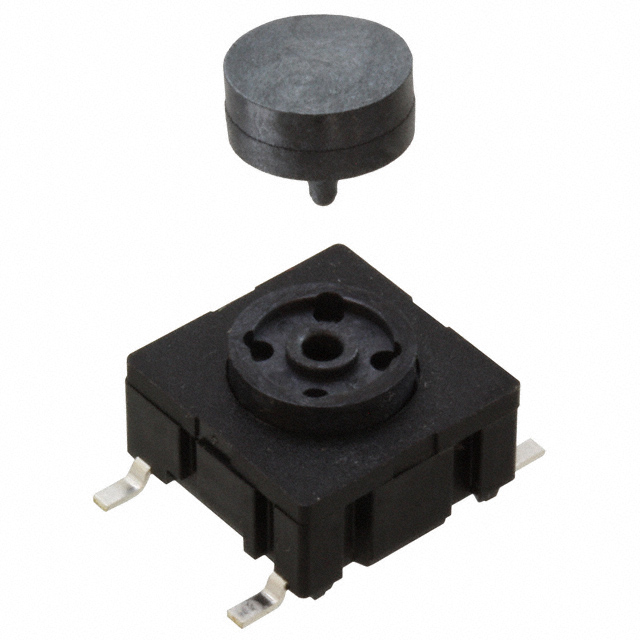

E-Switch TL6200CBF300QG	10000000 Cycles	1 mm	Black Cap	SPST-NO	Off-Mom	Round Button	300 gf	9.5 mm	85 °C	-40 C	Gull Wing	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	Surface Mount	Top Actuated	Non-Illuminated	10.1 mm	10.1 mm
E-Switch TL6200CBF300QP	10000000 Cycles	1 mm		SPST-NO	Off-Mom	Round Button	300 gf	9.5 mm	85 °C	-40 C	PC Pin	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	Through Hole	Top Actuated	Non-Illuminated	10.1 mm	10.1 mm
E-Switch TL6200DBF300QG	10000000 Cycles	1 mm		SPST-NO	Off-Mom	Round Button	300 gf	10.4 mm	85 °C	-40 C	Gull Wing	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	Surface Mount	Top Actuated	Non-Illuminated	10.1 mm	10.1 mm
E-Switch TL6200DBLK														Snap Fit		Non-Illuminated				Tactile	Round	Black	TL6200 Series	4 mm	6.5 mm
E-Switch TL6200XBF300QG				SPST-NO	Off-Mom	Round Button	300 gf	6.4 mm	85 °C	-40 C	Gull Wing	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	Surface Mount	Top Actuated	Non-Illuminated	10.1 mm	10.1 mm
