9683 Series
Manufacturer: Belden Inc.
Beta
⌘K

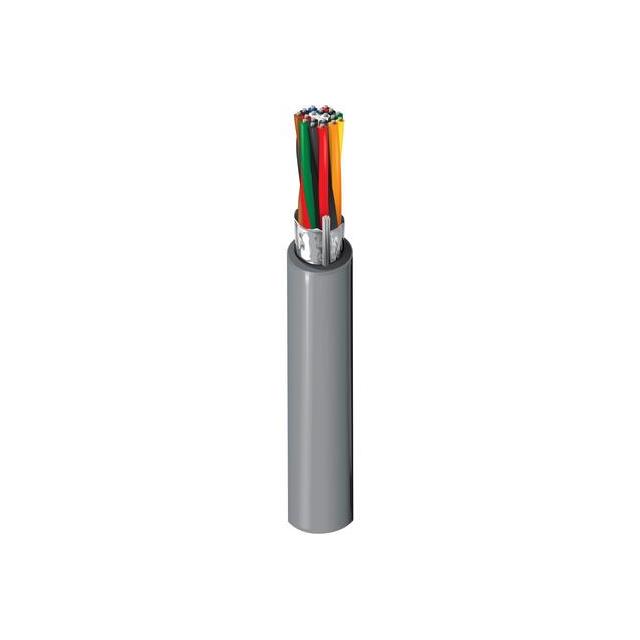

MULTI-PAIR 18COND 24AWG
| Part | Shield Coverage | Shield Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Ratings | Cable Type | Wire Gauge | Jacket Color | Usage | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 18 | 7 | 32 AWG | Drain Wire | 80 °C | -20 ░C | Polyethylene (PE) | Copper Tinned | 0.035 in | 0.889 mm | 152.4 m | 500 ft | 10.08 mm | 0.397 in | Poly-Vinyl Chloride (PVC) | UL Style 2919 | Multi-Pair | 24 AWG | Chrome | Computer | Foil |
Belden Inc. | 100 % | Aluminum | 18 | 7 | 32 AWG | Drain Wire | 80 °C | -20 ░C | Polyethylene (PE) | Copper Tinned | 0.035 in | 0.889 mm | 304.8 m | 1000 ft | 10.08 mm | 0.397 in | Poly-Vinyl Chloride (PVC) | UL Style 2919 | Multi-Pair | 24 AWG | Chrome | Computer | Foil |
