M2029ES Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Electrical Life | Actuator Material | Panel Cutout Dimensions [diameter] | Termination Style | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Current Rating (Amps) | Bushing Thread | Circuit | Switch Function | Illumination | Actuator Type | Actuator Length [x] | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

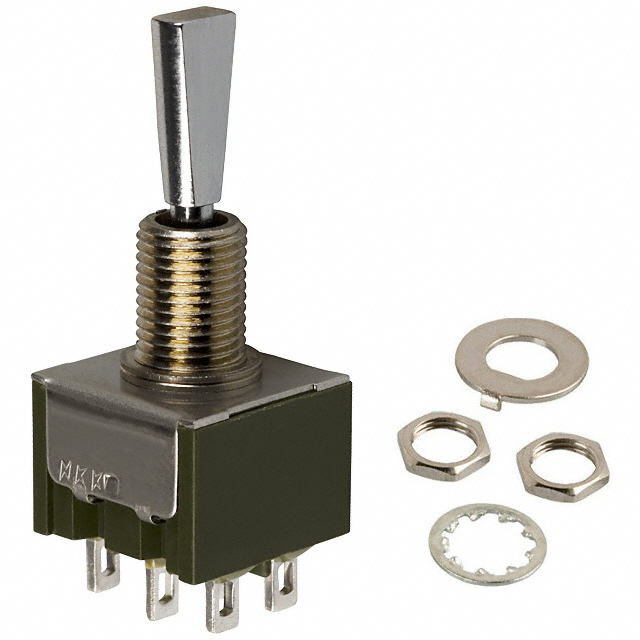

 NKK Switches | 25000 Steps | Brass Chrome Plated | 6.5 mm | Solder Lug | 30 V | 85 °C | -30 ░C | 125 V | 3 A 6 A | 1/4-40 | DPDT | On-Off-Mom | Non-Illuminated | Flatted | 11.4 mm | Panel Mount | Epoxy Sealed Terminals |

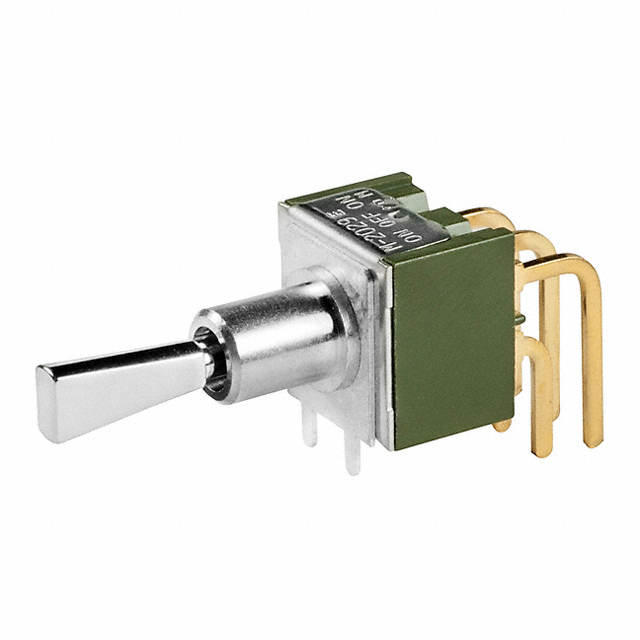

 NKK Switches | 50000 Cycles | Brass Chrome Plated | 6.5 mm | PC Pin | 28 V | 85 °C | -30 ░C | 28 V | 0.4 VA | 1/4-40 | DPDT | On-Off-Mom | Non-Illuminated | Flatted | 11.4 mm | Right Angle Through Hole | Epoxy Sealed Terminals |

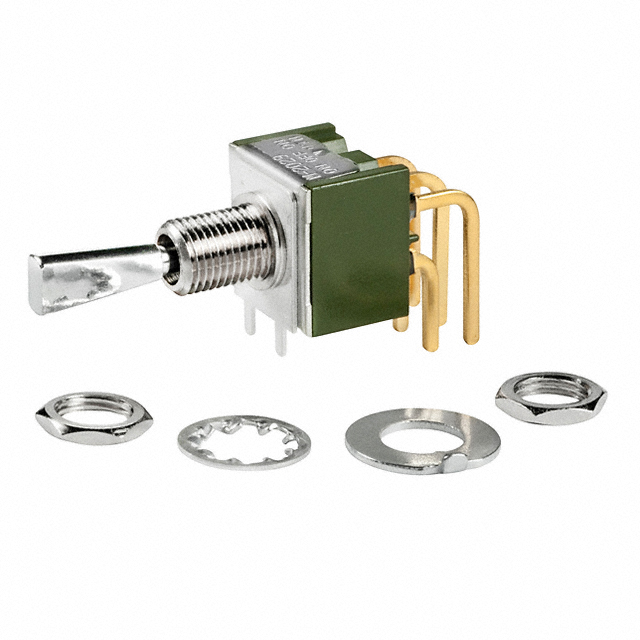

 NKK Switches | 50000 Cycles | Brass Chrome Plated | 6.5 mm | PC Pin | 28 V | 85 °C | -30 ░C | 28 V | 0.4 VA | Unthreaded | DPDT | On-Off-Mom | Non-Illuminated | Flatted | 11.4 mm | Right Angle Through Hole | Epoxy Sealed Terminals |
