MY2F-D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 5A 6V
| Part | Must Operate Voltage | Termination Style | Approval Agency | Coil Type | Coil Current | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Operate Time | Contact Form | Must Release Voltage | Switching Voltage | Coil Resistance | Mounting Type | Contact Material | Load - Max Switching | Contact Rating (Current) | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

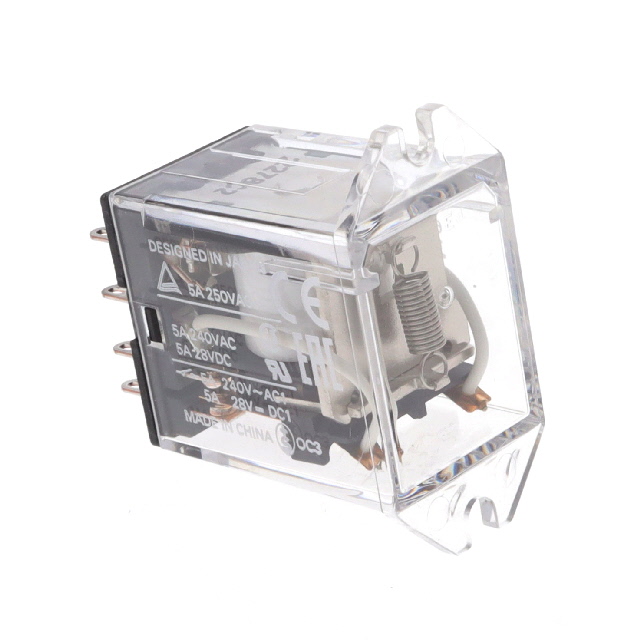

 Omron Electronics Inc-EMC Div | 4.8 VDC | Solder Lug | CE CSA UR VDE | Non Latching | 151 mA | General Purpose | 70 °C | -55 °C | 20 ms | 20 ms | DPDT (2 Form C) | 0.6 VDC | 125 VDC 250 VAC | 39.8 Ohms | Chassis Mount | Silver (Ag) | 625 W 1250 VA | 5 A | |

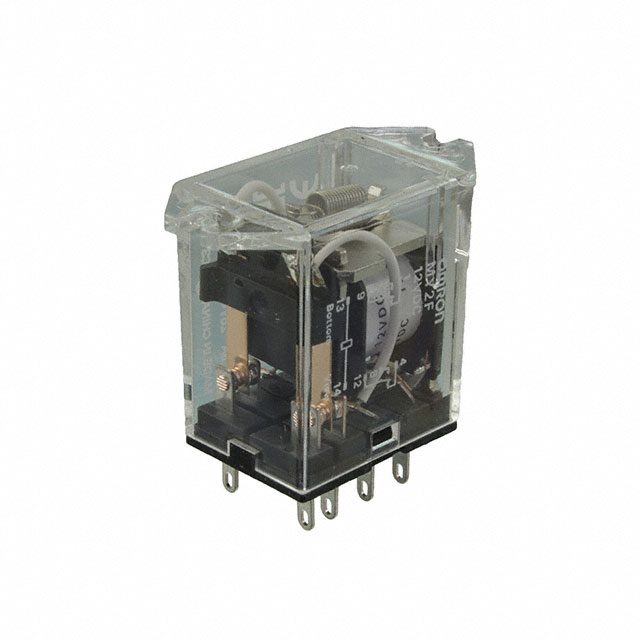

 Omron Electronics Inc-EMC Div | 9.6 VDC | Solder Lug | CE CSA UR VDE | Non Latching | 72.7 mA | General Purpose | 70 °C | -55 °C | 20 ms | 20 ms | DPDT (2 Form C) | 1.2 VDC | 125 VDC 250 VAC | 165 Ohms | Chassis Mount | Silver (Ag) | 625 W 1250 VA | 5 A | 12 VDC |
