53610 Series

Catalog

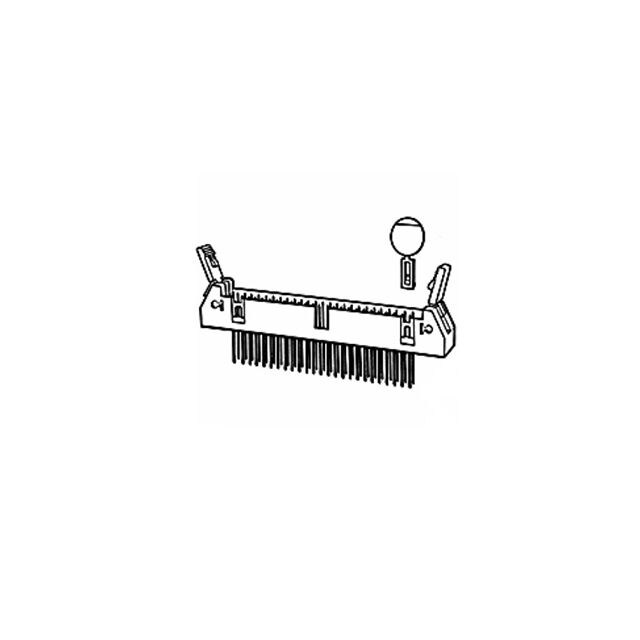

CONN HEADER SMD 34POS 2.54MM

Part	Insulation Material	Features	Number of Positions	Shrouding	Contact Type	Contact Finish - Post	Insulation Color	Number of Rows	Contact Finish - Mating	Number of Positions Loaded	Material Flammability Rating	Contact Shape	Fastening Type	Termination	Connector Type	Contact Length - Mating [x]	Contact Length - Mating	Mounting Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post	Number of Positions
Amphenol ICC (FCI) 53610-S34-8	Thermoplastic	Keying Slot	34	Shrouded - 4 Wall	Male Pin	Tin-Lead	Black	2	Gold or Gold GXT™	All	UL94 V-0	Square	Latch Lock/Eject Hooks	Solder	Header	0.23 in	5.84 mm	Surface Mount	Phosphor Bronze	15 µin	0.38 µm	16.26 mm	0.64 in	Board to Cable/Wire	150 Áin	3.81 Ám	0.1 in	2.54 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 53610-S14-4	Thermoplastic	Keying Slot	14	Shrouded - 4 Wall	Male Pin	Tin-Lead	Black	2	Gold or Gold GXT™	All	UL94 V-0	Square	Latch Lock/Eject Hooks	Solder	Header	0.23 in	5.84 mm	Through Hole	Phosphor Bronze	15 µin	0.38 µm	16.26 mm	0.64 in	Board to Cable/Wire	150 Áin	3.81 Ám	0.1 in	2.54 mm	2.54 mm	0.1 in	0.12 in	3.05 mm
Amphenol ICC (FCI) 53610-S14-6	Thermoplastic	Keying Slot	14	Shrouded - 4 Wall	Male Pin	Tin-Lead	Black	2	Gold or Gold GXT™	All	UL94 V-0	Square	Latch Lock/Eject Hooks	Solder	Header	0.23 in	5.84 mm	Through Hole	Phosphor Bronze	15 µin	0.38 µm	16.26 mm	0.64 in	Board to Cable/Wire	150 Áin	3.81 Ám	0.1 in	2.54 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 53610-G50-4LF	Thermoplastic	Keying Slot	50	Shrouded - 4 Wall	Male Pin	Tin	Black	2	Gold or Gold GXT™	All	UL94 V-0	Square	Latch Lock/Eject Hooks	Solder	Header	0.23 in	5.84 mm	Through Hole	Phosphor Bronze	30 Áin	0.76 Ám	16.26 mm	0.64 in	Board to Cable/Wire	100 µin	2.54 µm	0.1 in	2.54 mm	2.54 mm	0.1 in	0.12 in	3.05 mm
Amphenol ICC (FCI) 53610-S20-4	Thermoplastic	Keying Slot	20	Shrouded - 4 Wall	Male Pin	Tin-Lead	Black	2	Gold or Gold GXT™	All	UL94 V-0	Square	Latch Lock/Eject Hooks	Solder	Header	0.23 in	5.84 mm	Through Hole	Phosphor Bronze	15 µin	0.38 µm	16.26 mm	0.64 in	Board to Cable/Wire	150 Áin	3.81 Ám	0.1 in	2.54 mm	2.54 mm	0.1 in	0.12 in	3.05 mm
Amphenol ICC (FCI) 53610-G34-6LF	Thermoplastic	Keying Slot	34	Shrouded - 4 Wall	Male Pin	Tin	Black	2	Gold or Gold GXT™	All	UL94 V-0	Square	Latch Lock/Eject Hooks	Solder	Header	0.23 in	5.84 mm	Through Hole	Phosphor Bronze	30 Áin	0.76 Ám	16.26 mm	0.64 in	Board to Cable/Wire	100 µin	2.54 µm	0.1 in	2.54 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 53610-S14-4LF	Thermoplastic	Keying Slot	14	Shrouded - 4 Wall	Male Pin	Tin	Black	2	Gold or Gold GXT™	All	UL94 V-0	Square	Latch Lock/Eject Hooks	Solder	Header	0.23 in	5.84 mm	Through Hole	Phosphor Bronze	15 µin	0.38 µm	16.26 mm	0.64 in	Board to Cable/Wire	100 µin	2.54 µm	0.1 in	2.54 mm	2.54 mm	0.1 in	0.12 in	3.05 mm
Amphenol ICC (FCI) 53610-G20-7	Thermoplastic	Keying Slot	20	Shrouded - 4 Wall	Male Pin	Tin-Lead	Black	2	Gold or Gold GXT™	All	UL94 V-0	Square	Latch Lock/Eject Hooks	Solder	Header	0.23 in	5.84 mm	Through Hole	Phosphor Bronze	30 Áin	0.76 Ám	16.26 mm	0.64 in	Board to Cable/Wire	150 Áin	3.81 Ám	0.1 in	2.54 mm	2.54 mm	0.1 in			0.675 in	17.15 mm
Amphenol ICC (FCI) 53610-G16-8LF	Thermoplastic	Keying Slot		Shrouded - 4 Wall	Male Pin	Tin	Black	2	Gold or Gold GXT™	All	UL94 V-0	Square	Latch Lock/Eject Hooks	Solder	Header	0.23 in	5.84 mm	Surface Mount	Phosphor Bronze	30 Áin	0.76 Ám	16.26 mm	0.64 in	Board to Cable/Wire	100 µin	2.54 µm	0.1 in	2.54 mm	2.54 mm	0.1 in					16
Amphenol ICC (FCI) 53610-S16-6	Thermoplastic	Keying Slot		Shrouded - 4 Wall	Male Pin	Tin-Lead	Black	2	Gold or Gold GXT™	All	UL94 V-0	Square	Latch Lock/Eject Hooks	Solder	Header	0.23 in	5.84 mm	Through Hole	Phosphor Bronze	15 µin	0.38 µm	16.26 mm	0.64 in	Board to Cable/Wire	150 Áin	3.81 Ám	0.1 in	2.54 mm	2.54 mm	0.1 in					16
