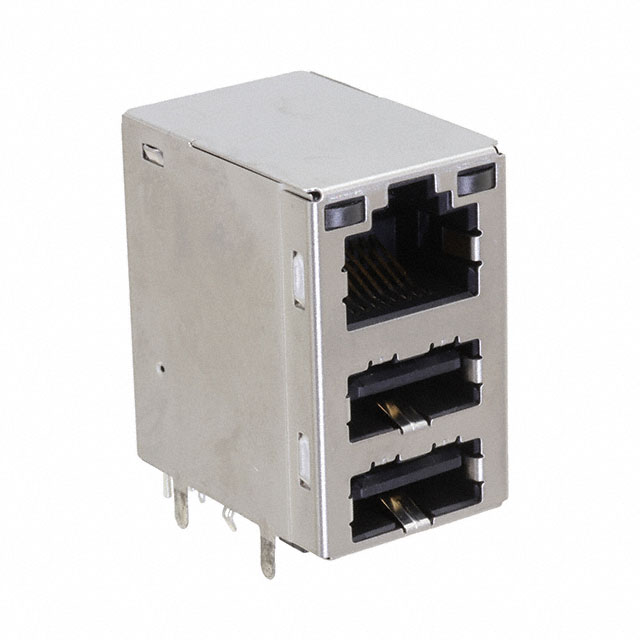

MTJ-DUSB Series
Manufacturer: Adam Tech
Beta
⌘K
MODULAR JACK / USB COMBO CONNECT
| Part | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Connector Type | Shielding | Contact Material | LED Color | Number of Rows | Features | Contact Finish | Number of Ports | Termination | Mounting Type | Orientation | Tab Direction | Number of Positions/Contacts | Shield Material | Number of Cores per Jack | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -40 C | Flash | Jack with USB A Dual | Shielded | Brass Phosphor Bronze | Green - Yellow | 1 | Board Lock Solder Retention | Gold | 1 | Solder | Through Hole | 90 ° | Up | 8p8c (RJ45 Ethernet) | ||||
 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -40 C | Flash | RJ45 with USB A Dual | Shielded | Phosphor Bronze | Green - Yellow | 1 | Board Lock Solder Retention | Gold | 1 | Solder | Through Hole | 90 ° | Up | Stainless Steel | 8 | 31 mm | 1.22 in |
