151-14 Series

Catalog

CBL CLIP U-TYPE BLACK

Part	Screw Size	Screw Size	Features	Material Flammability Rating	Height [z]	Height [z]	Type Attributes	Width [x]	Width [x]	Color	Material	Length [x]	Length [x]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Hole Size	Panel Hole Size	Length	Length	Mounting Type	Opening Size [Max] [diameter]	Opening Size [Min] [diameter]	Opening Size [Max] [diameter]	Opening Size [Min] [diameter]
HELLERMANNTYTON 151-14400	5 mm	0.197 in	Connectable Impact Resistant	UL94 HB	0.59 in	14.99 mm	Open	10 mm	0.394 "	Black	Polyamide (PA66) Nylon 6/6	0.866 in	22 mm	8.5 mm	0.492 "	0.335 "	12.5 mm

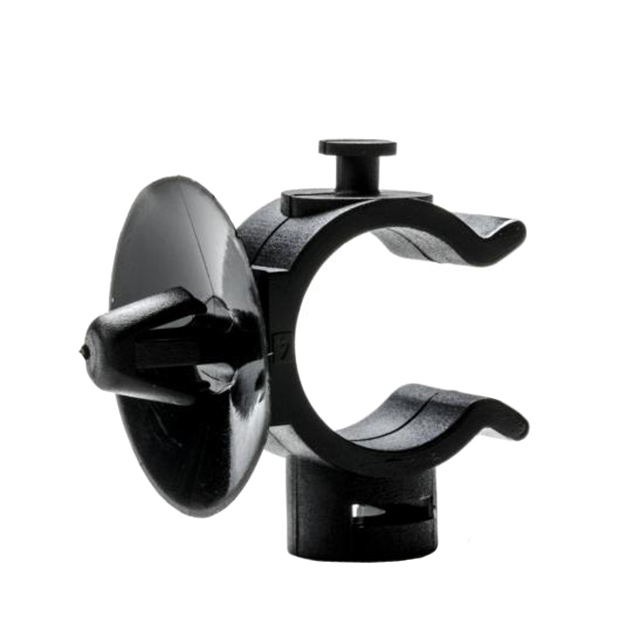

HELLERMANNTYTON 151-14500	5 mm	0.197 in	Connectable Impact Resistant	UL94 HB	0.906 in	23 mm	Open	10 mm	0.394 "	Black	Polyamide (PA66) Nylon 6/6			13.7 mm	0.579 in	0.539 in	14.7 mm	0.024 in 0.6 mm	0.063 " 1.6 mm	6.3 mm	0.248 in	1.071 in	27.2 mm	Arrowhead Cupped

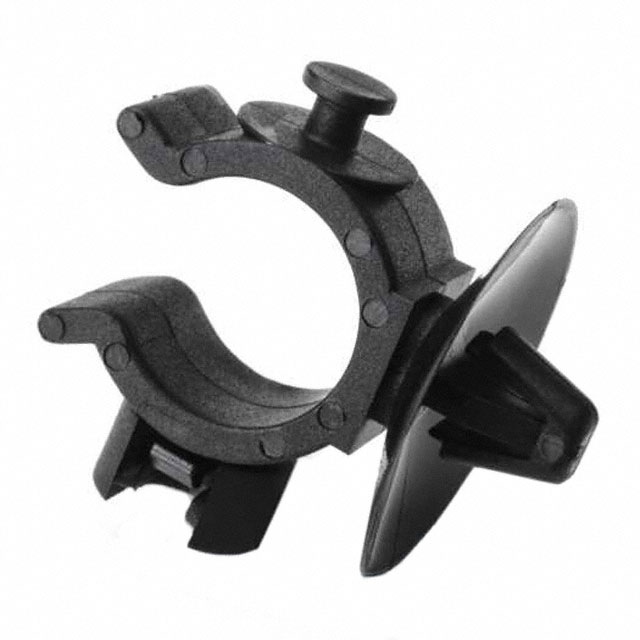

HELLERMANNTYTON 151-14130	5 mm	0.197 in	Connectable	UL94 V-2	0.827 in	21 mm	Open	10 mm	0.394 "	Black	Polyamide (PA66) Nylon 6/6							0.024 in 0.6 mm	0.063 " 1.6 mm	6.3 mm	0.248 in	1.02 in	25.91 mm	Arrowhead Cupped	13.5 mm	12.5 mm	0.531 in	0.492 in

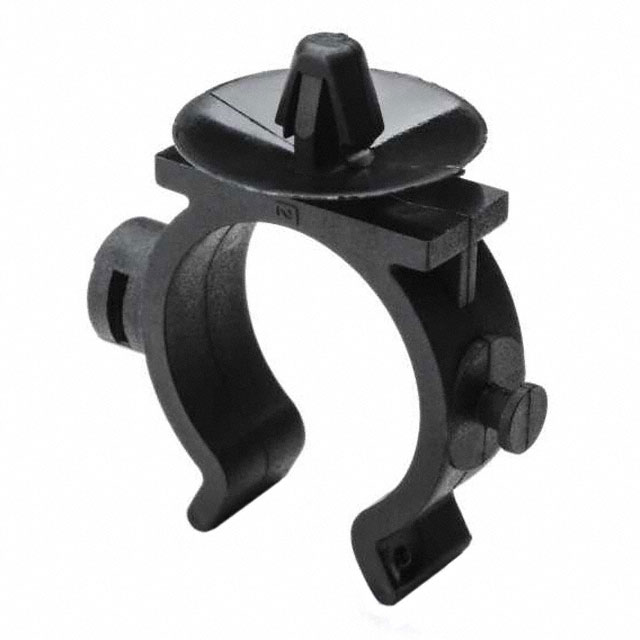

HELLERMANNTYTON 151-14601	5 mm	0.197 in	Connectable	UL94 V-2	1.339 in	34 mm	Open	10 mm	0.394 "	Black	Polyamide (PA66) Nylon 6/6	1.445 in	36.7 mm	21 mm	0.984 "	0.827 "	25 mm	0.024 in 0.6 mm	0.063 " 1.6 mm	6.3 mm	0.248 in			Arrowhead Cupped
